Centipede
79-4411001
(Fuse
Post)
034482-02 037639-01
46-2017002
(Chassis)
(Label) (Fuse)
\
034544-01 46-2014002
(Cover) (Fuses)
037641-01
(Label)
TOP
VIEW
o
o
A037671-01
power supply
assembly has
120V plug
A037671-02
has
the
100V, 220V and
240V plugs
A037671-03
has
the 220V and
240V plugs
A035888-01
(Transformer)
79-3206
(Fuse Block)
A035891-01
(Fuse Flarness)
78-2708
(Fiole
Bushing)
78-70501
SC
(Capac. Bracket)
29-053
(Capacitor)
NOTICE TO ALL PERSONS
RECEIVING THIS DRAWING
CONFIDENTIAL: Reproduction
forbidden without the spe-
cific written permission of
Atari, Inc., Sunnyvale, CA. This
drawing is only
conditionally issued, and neither receipt nor
possession thereof confers or transfers any right in,
or li-
cense to use,
the
subject
matter of the drawing or any de-
sign or technical information shown
thereon, nor any right
to
reproduce this drawing or any part
thereof.
Except
for
manufacture by vendors
of Atari, Inc., and for manufacture
under the
corporation’s written license, no right is granted
to
reproduce this drawing or the subject
matter thereof, un-
less
by
written agreement
with or written permission from
the
corporation.
BOTTOM VIEW
3A-MDA3501
(Rectifier)
A0346
30-01
(RFI
Filter)
A035890-01
(Pwr. Harness)
A034629-01
(A.C.
Harness)
79-15021001
(Term’l
Block)

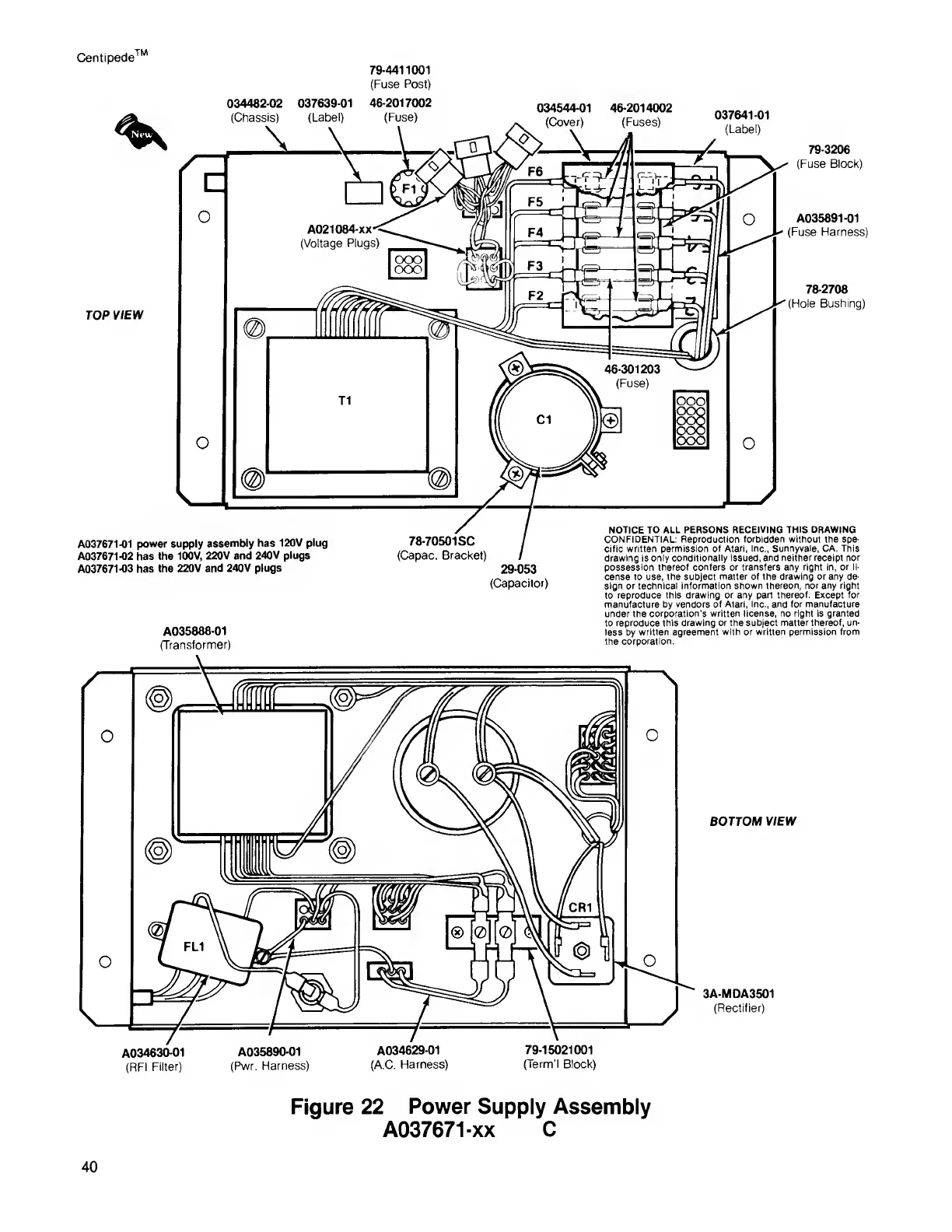

Figure 22
Power Supply
Assembly
A037671-XX
C
40
To Next Page
