Atel AXIS V810A - Getting Started; Install SIM Card; Install NiMH Battery Pack

ATEL V810 Series
V810A Data User Manual
V6.1, January 3, 2023
5

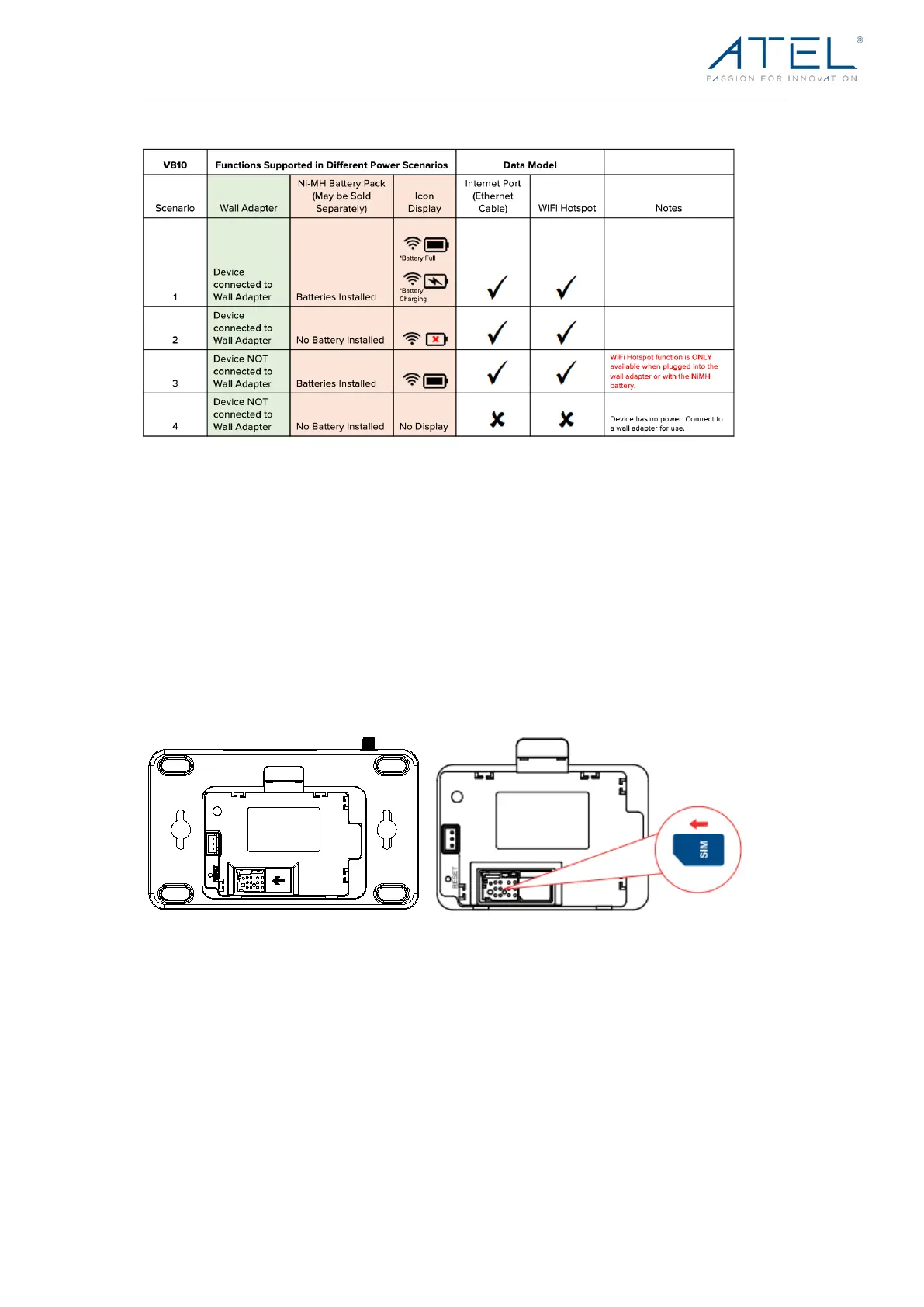

Refer to the table below for the V810A functions supported in different power modes.
2. Getting Started
Install SIM Card
1. Remove the V810A back cover.
2. Install the SIM card into the spring-loaded SIM slot as the image shows. To remove
a SIM, press the edge of the SIM inward and the SIM will pop outward from the
SIM slot.
Install the NiMH Battery Pack
1. Remove the battery cover.
2. Properly align and install the NiMH battery (with three pin sockets).
Make sure to align the pin sockets correctly.
3. Put the NiMH battery in place as shown below.
4. Replace the back cover of the V810A and make sure it’s aligned with
the bottom of the device.
NOTE: The NiMH battery may be sold separately.
