ATEQ F6 Profinet Series - Setup of the Profinet Configuration Modes; Setup of the Standard Mode (Normal)

FG_F6_PROFINET_EN_04 / 2020-06-17
18 / 75
SETUP OF THE PROFINET CONFIGURATION MODES
Five configuration modes are available according to the bytes number available (see Configuration of
the ATEQ device (slave)).

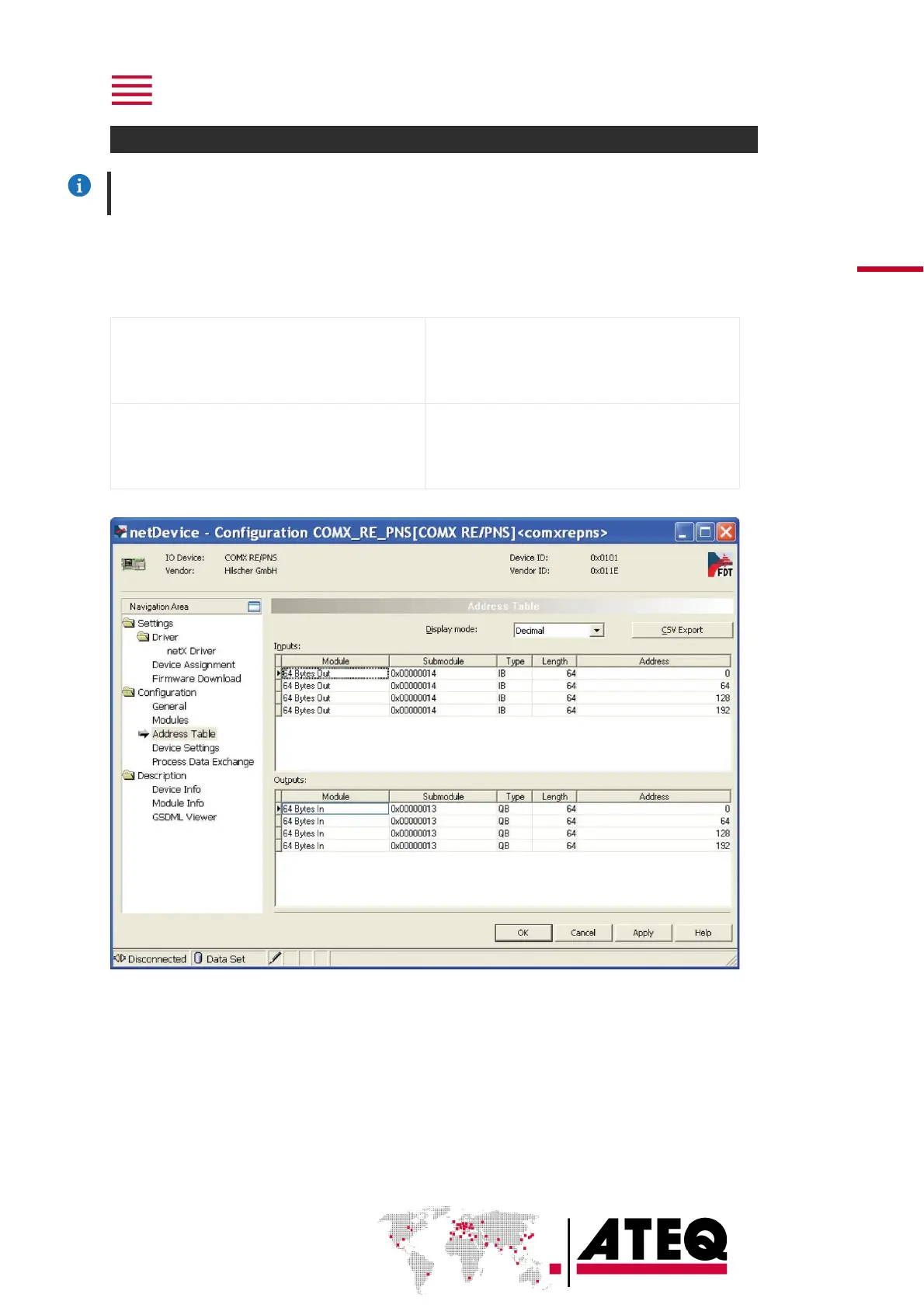

Setup of the Standard mode (normal)
The parameters configuration must be like the following ones:
Input_Data (IB) 256 bytes total:
IB = 64 bytes (module 1)
IB = 64 bytes (module 2)
IB = 64 bytes (module 3)
IB = 64 bytes (module 4)
Output_Data (QB) 256 bytes total:
QB = 64 bytes (module 1)
QB = 64 bytes (module 2)
QB = 64 bytes (module 3)
QB = 64 bytes (module 4)
