ATEQ F6 Profinet Series - Start Command Diagram

FG_F6_PROFINET_EN_04 / 2020-06-17
62 / 75

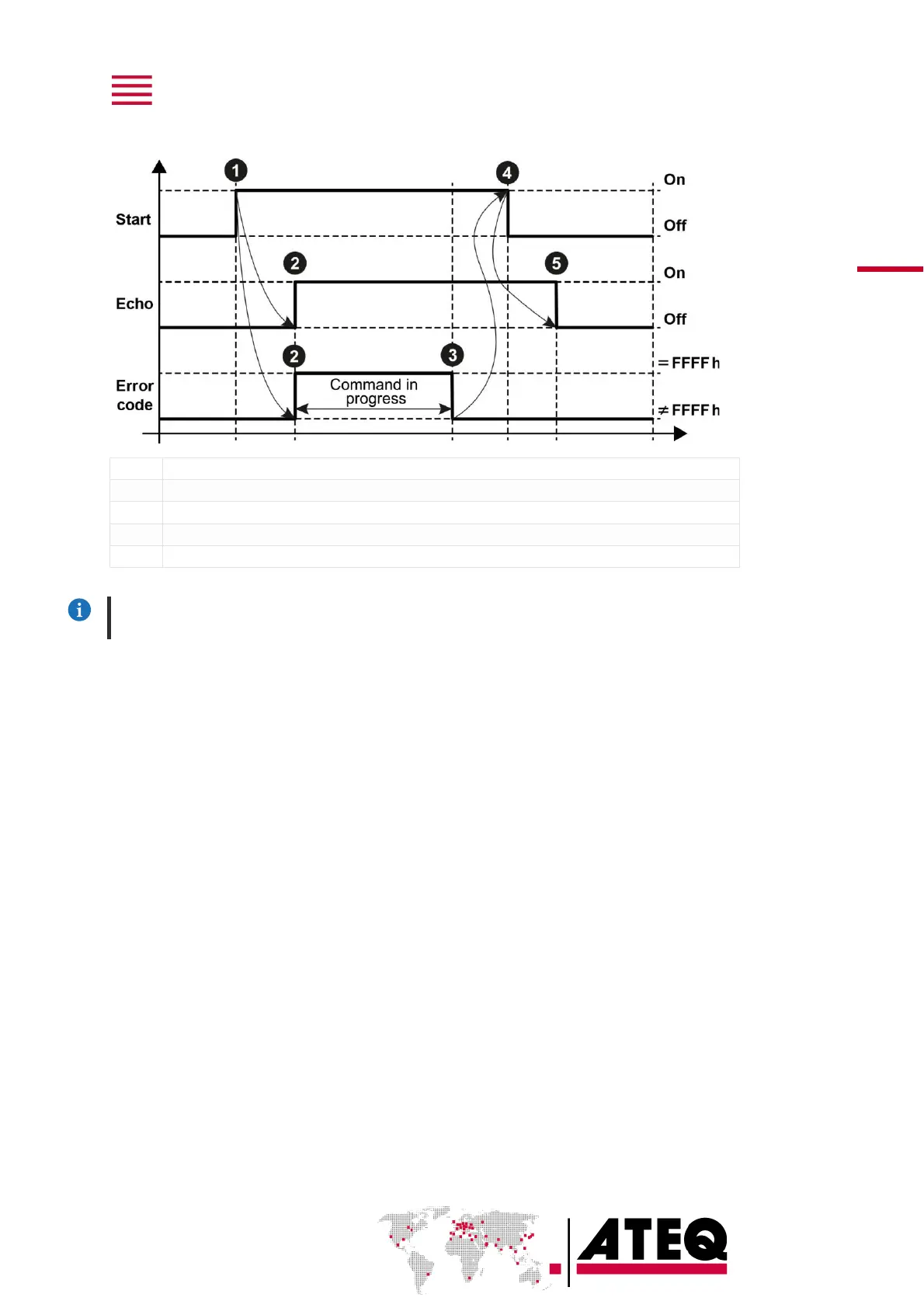

Start command diagram
1
Start command = On
2
Acknowledge by ATEQ = (Echo command = On) and (Error code command = FFFFh)
3
Wait end of Start command = (Echo command = On) and (Error code command ≠ FFFFh)
4
Start command = Off
5
Acknowledge by ATEQ = (Echo command = Off) and (Error code command ≠ FFFFh)
The Echo command is a copy of the Start command. The Start signal must be maintained (ON) till the
end of the Start command condition is reached.
