CABLING

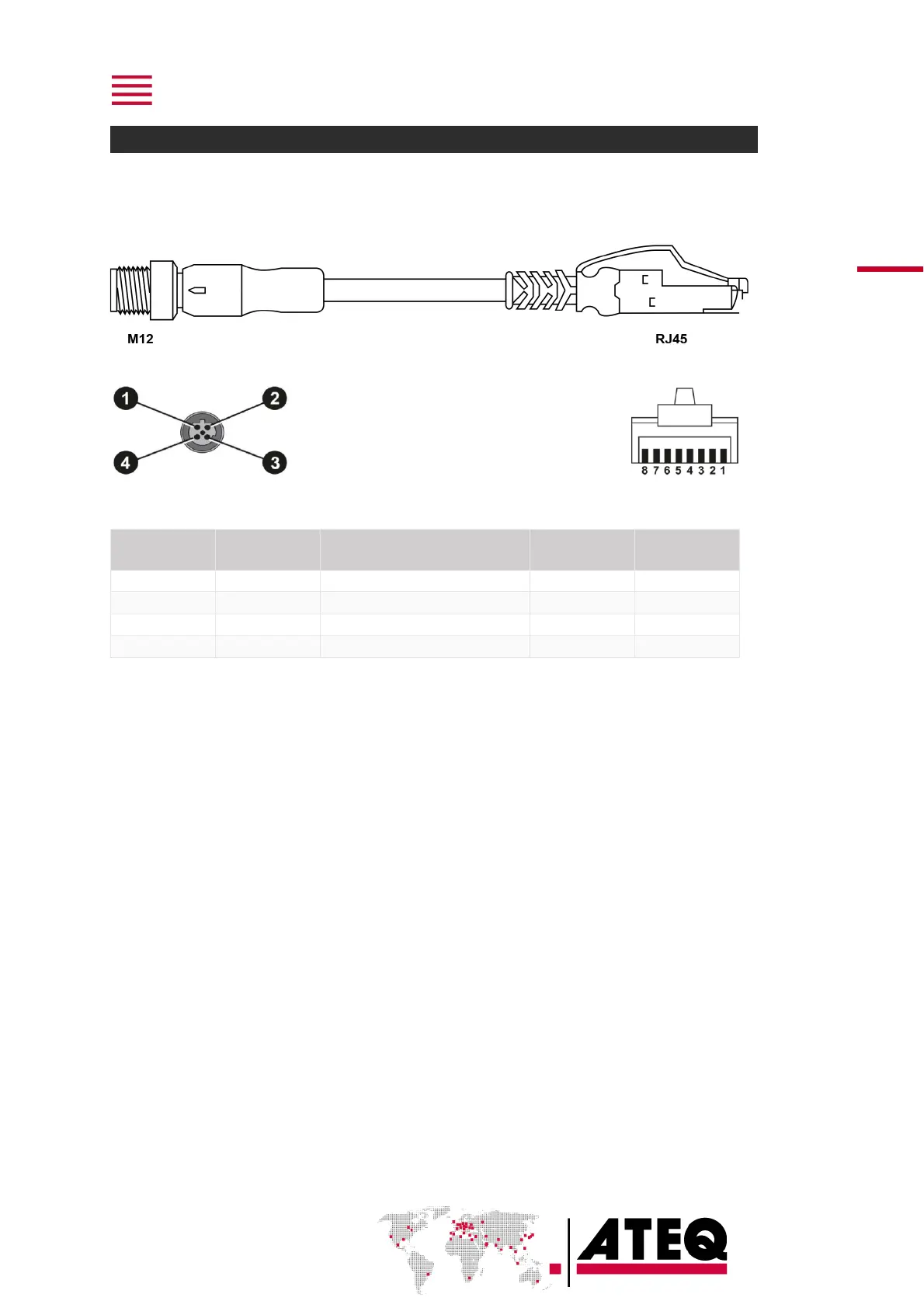

M12 - RJ45 cable
Cable with male M12 D coded type connector and an RJ45 connector (4 or 8 pins)
Male M12 Pin
number
Wire color
Signal
RJ45 - 4 pins Pin
number
RJ45 - 8 pins Pin
number
1
White/orange
Ethernet Tx + (Transmit Data +)
1
1
2
White/green
Ethernet Rx + (Receive Data +)
3
3
3
Orange
Ethernet Tx - (Transmit Data -)
2
2
4
Green
Ethernet Rx - (Receive Data -)
4
6
