ATI Q46H/85 PAA System Part 4 – Electrical Installation
22
O&M Manual
Rev F (8/17)
TB2, is used to connect to the optional 3-relay card (Figures 14) OR the optional third analog
outputOut#3, Figure 15. The Q46 can be configured for only one of these optional features, and
the hardware for either option must be factory installed.

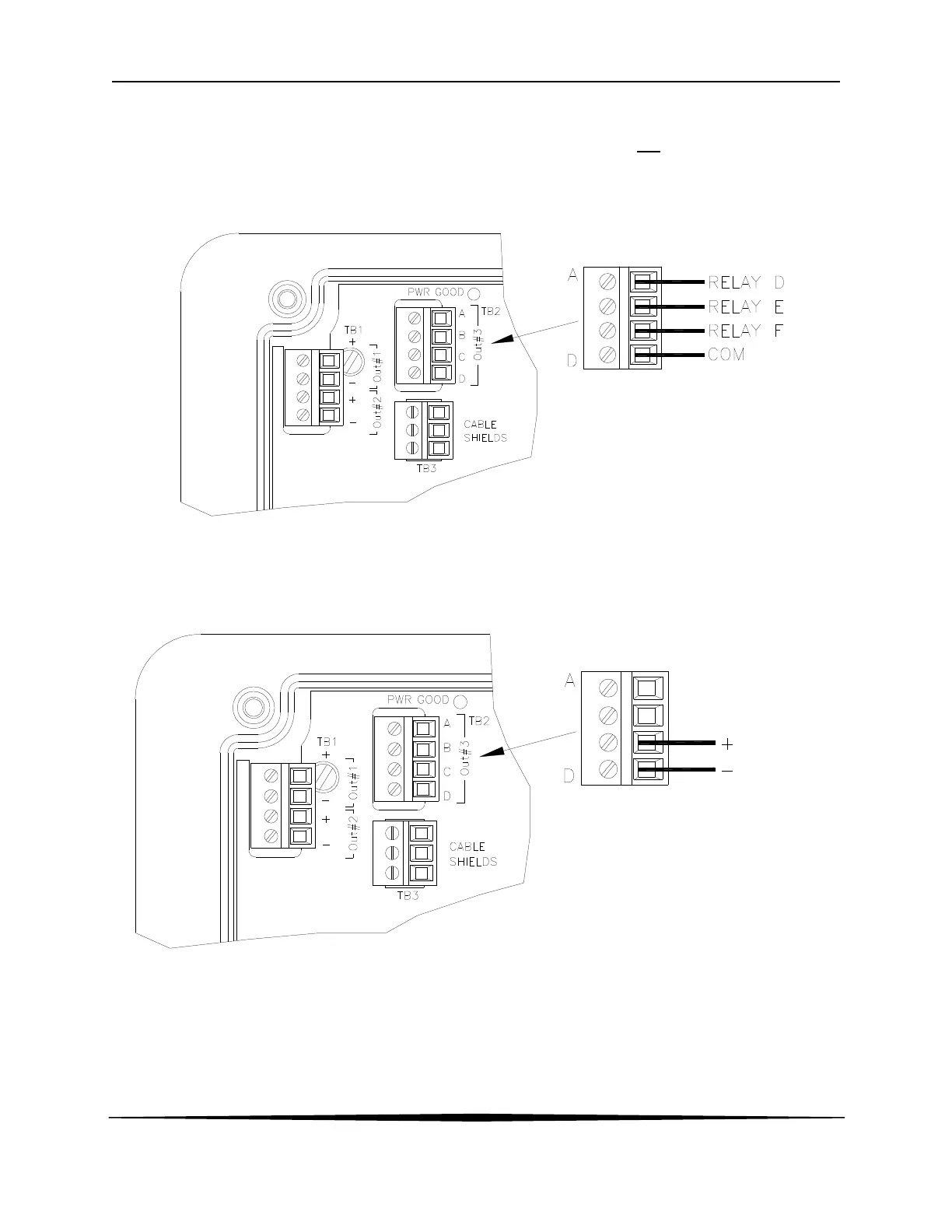

Figure 15 - Optional Relay Board Wiring
Figure 16 - Optional Analog Output Wiring
