ATI Q46H/85 PAA System Part 2 – Analyzer Mounting
5
O&M Manual
Rev F (8/17)
1.2 Standard System
The standard model Q46/85 system includes three main components, the Q46 analyzer, a
constant head flow cell, and a PAA sensor. A low-volume flowcell is also available for
applications where sample flowrate and pressure can be carefully controlled. Figure 1 shows a
typical installation including the optional pH sensor.
For connection of the sensor to the electronics, a 25' cable is supplied. An additional 100 feet of
interconnect cable may be added using #07-0100 junction box. All required spare parts are also
provided with the basic system, including spare membranes, electrolyte, o-rings, and any special
hardware.

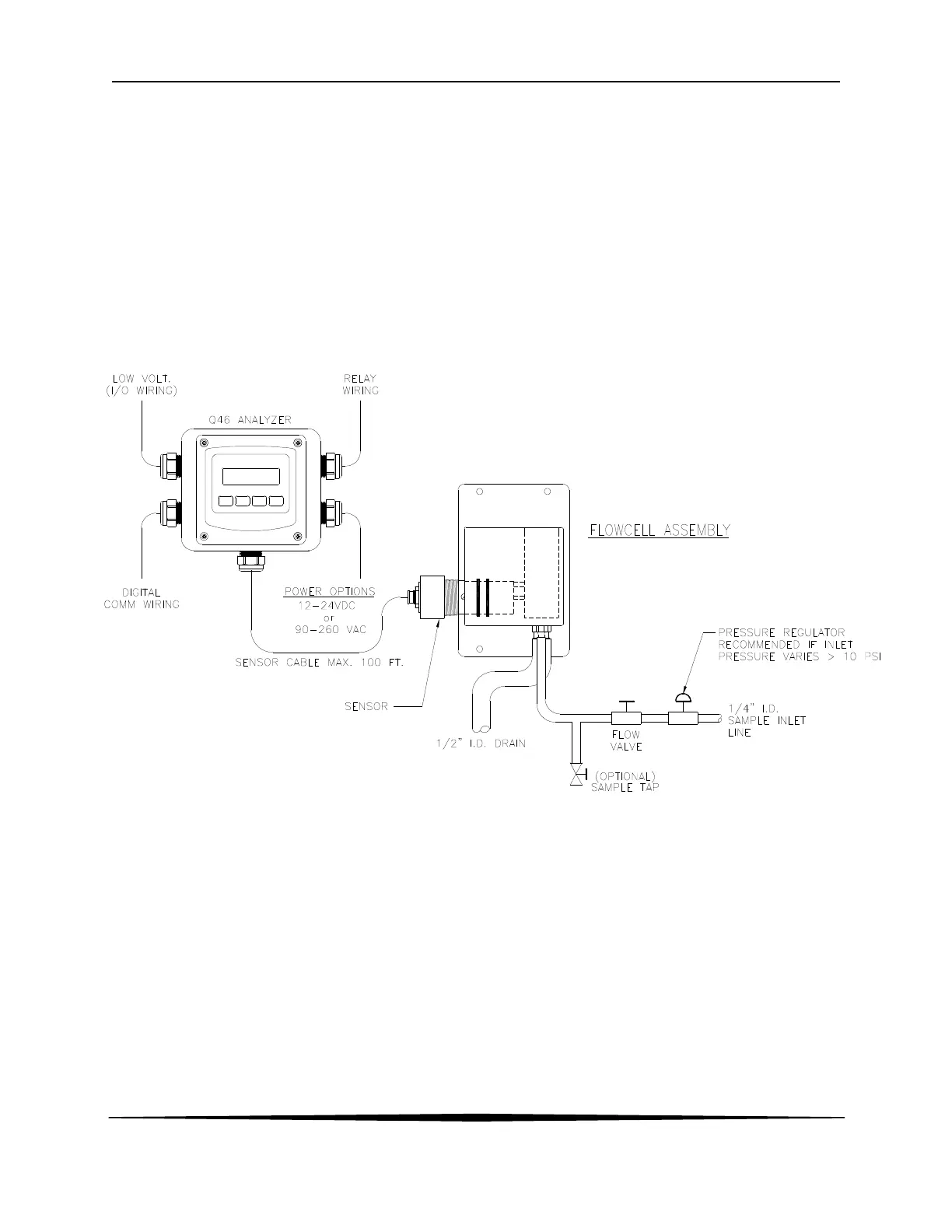

Figure 1 - Typical System Diagram
