• Nothing should obstruct the air circulation through the
evaporator and from the fan (gure 12).
• Keep the outdoor unit away from heat sources and
inammable products.
• Make sure the appliance not disturb the surrounding
area or users (noise level, draught generated, low
temperature of the air being blown out, with the risk of
freezing plants in its path).
• The surface on which the appliance is installed must :
- be permeable (soil, gravel, etc),
- support its weight easily,
- provide a solid xing and
- not transmit any vibration to the dwelling. Anti-vibratory
blocks are available as an option.
• The wall brackets is strongly discouraged due to
vibration.
AIR
100 mm
100 mm
600 mm
100 à 300 mm
250 mm
pour accès
250 mm
pour accès
250 mm
pour accès
300 mm
300 mm
AIR
AIR
AIR
minimum
600 mm
AIR

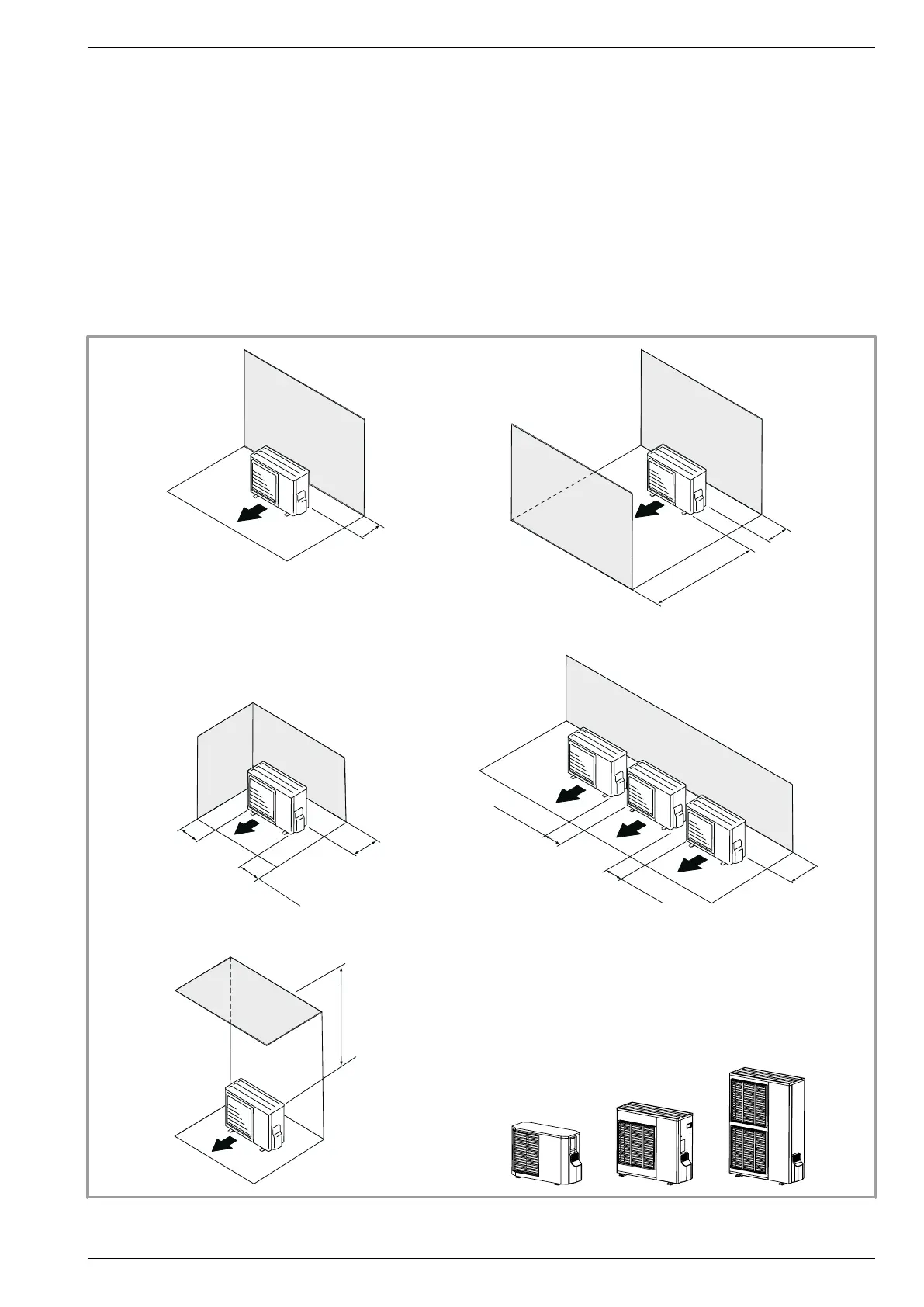

gure 12 - Minimum installation clearances around outdoor unit (all models)
for access
for access
for access
to
