2.4.2 Outdoor unit positioning
The outdoor unit must be raised at least 50 mm above
ground level. In areas prone to snow, this height should
be increased but should not exceed 1,5 m (gure 14).
- Fasten the outdoor unit by means of screws and
rubber tightening or toothed lock washers to avoid
their coming loose.
2.4.3 Condensate drain hose
(see gure 14).
If the use of a discharge pipe is imperative:
- Use the elbow provided (C) to connect a 16mm
diameter hose for draining away the condensate.
- Use the stopper or stoppers provided (B) to block the
opening of the condensate tank.
Allow for the condensate to ow away under the force of
gravity (waste water, rain water, gravel bed).
" If the installation is made in an area where
the temperature can be lower than 0°C for
a long period, provide the drain pipe with a
trace resistance to avoid it icing up. The trace
resistance must heat not only the pipe but
also the bottom of the appliance's condensate
collection tank.

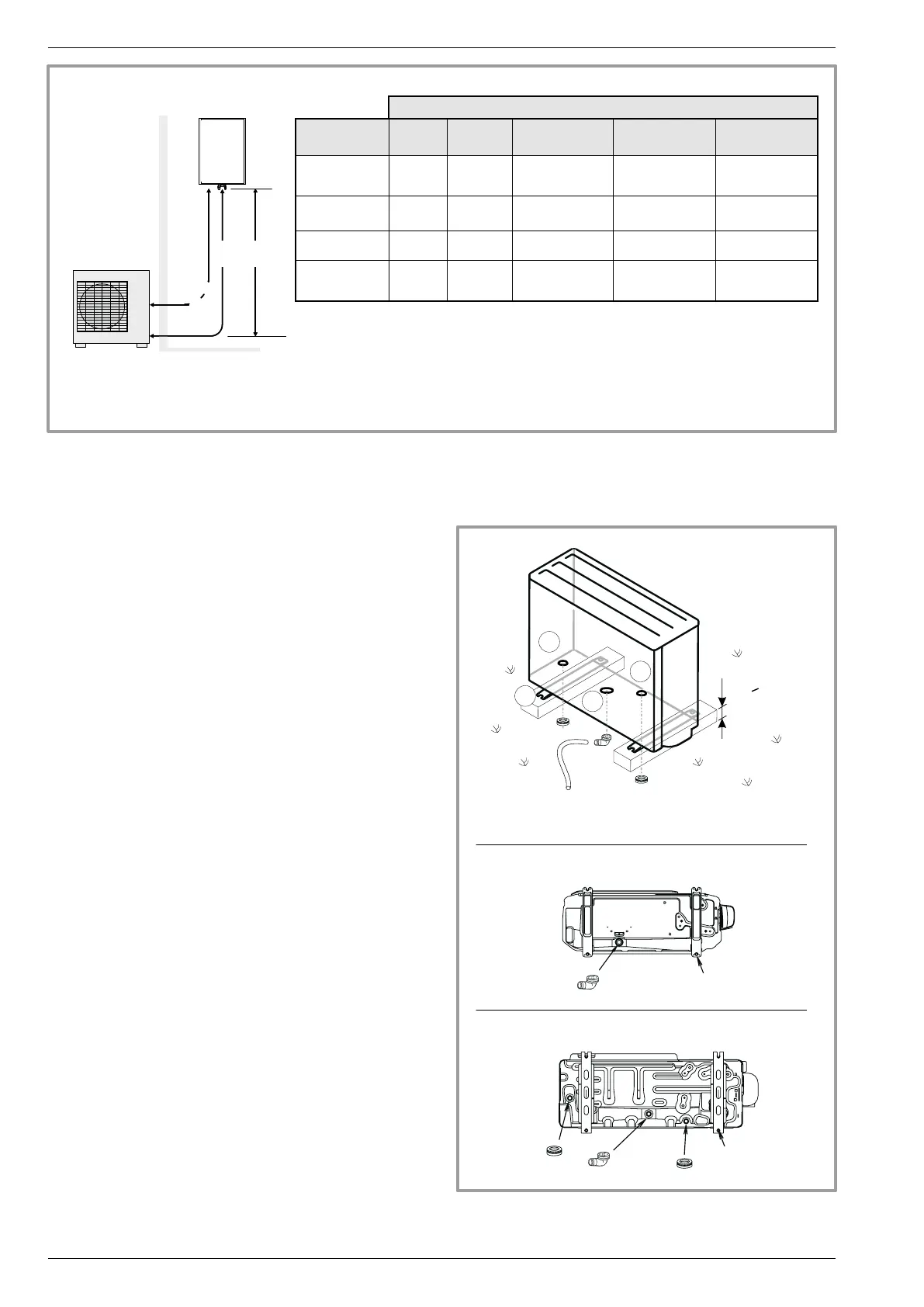

gure 13 - Pipe diameters (in inches) and permissible lengths (in metres)
Gas and uid conduits
HP model Gas Liquid
Minimum
length (L)
Maximum
length * (L)
Maxi level
difference (D)
Evolution 5
Evolution 6
1/2" 1/4" 5 15 15
Evolution 8 5/8" 1/4" 5 15 15
Evolution 10 5/8" 3/8" 5 20 20
Evolution 13
Evolution 16
5/8" 3/8" 5 20 20
* : without additional charge of R410A.
S
B
C
B
H > 50 mm*
(Ø 12 mm)
(Ø 10 mm)
Suivant modèle
Suivant modèle
4 trous
* Dans les régions fréquemment enneigées,
(H) doit être supérieur à la couche moyenne de neige.
.
4 trous
gure 14 - Positioning of the outdoor unit,
draining away the condensate
HP
hydraulic
unit
HP
Outdoor Unit
* In regions subject to frequent snow,
(H) must be greater than the average snow layer.
Depending on the model
Depending on the model
4 holes
4 holes
