2.5 Installing the hydraulic unit
2.5.1 Installation precautions
• The room in which the appliance operates must
comply with the prevailing regulations.
• To facilitate maintenance and to allow access to the
various components, we recommend that you provide
sufcient space all around the hydraulic unit.

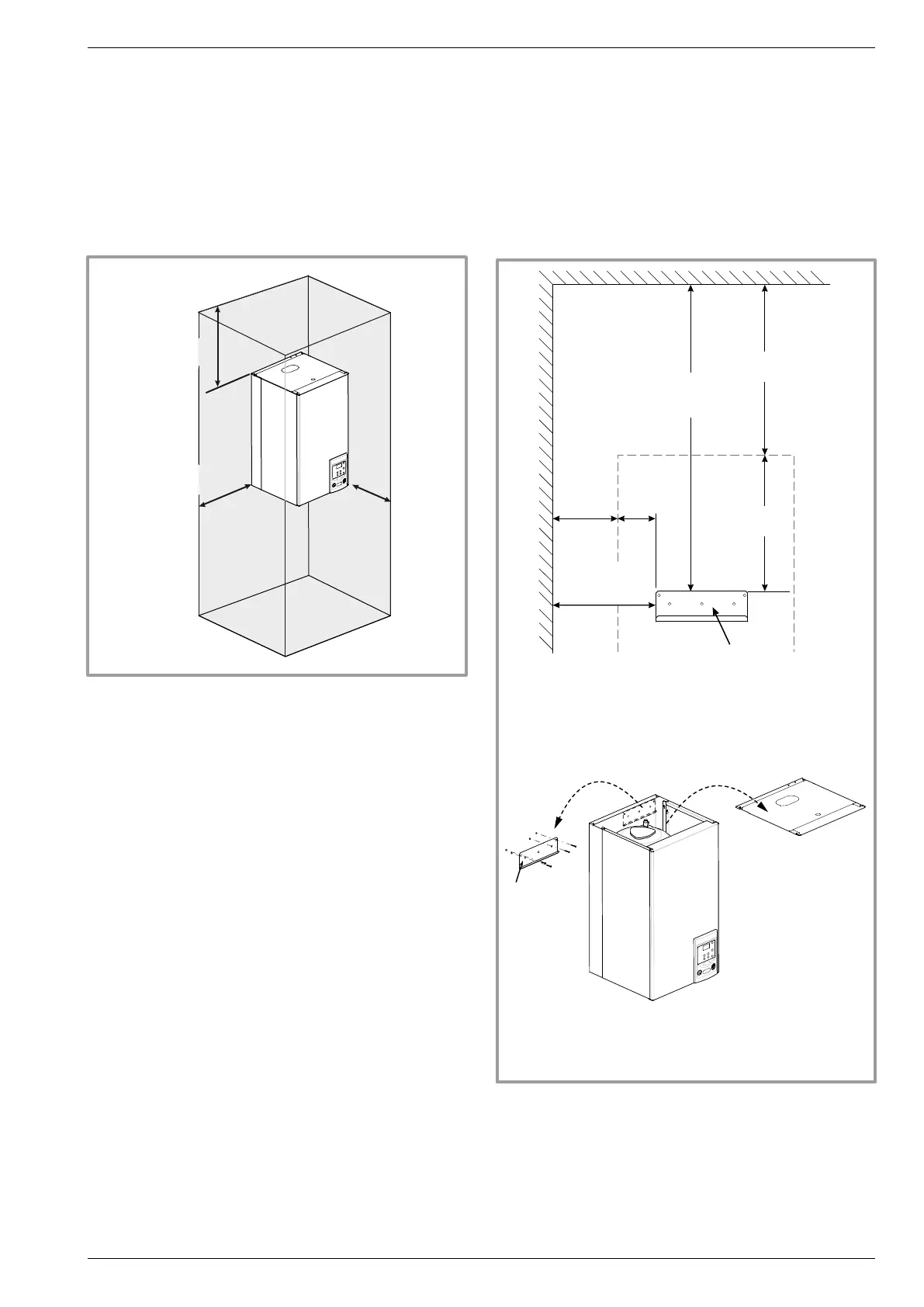

350 mm
mini
1000 mm
300 mm
mini
(S)
1
2
118 mm
(S)
538 mm
mini
418 mm
mini
300 mm
mini
350 mm
mini
188 mm
gure 15 - Mounting bracket
• Be careful not to bring inammable gas near to the
heat pump during its installation, in particular when
it requires brazing. The appliances are not reproof
and should therefore not be installed in a potentially
explosive atmosphere.
2.5.2 Positioning the hydraulic unit
- Fix the support solidly (4 screws and plugs) to a at,
hard-wearing wall (not a light partition) ensuring that it
is correctly levelled.
- Hook the appliance onto its support.
