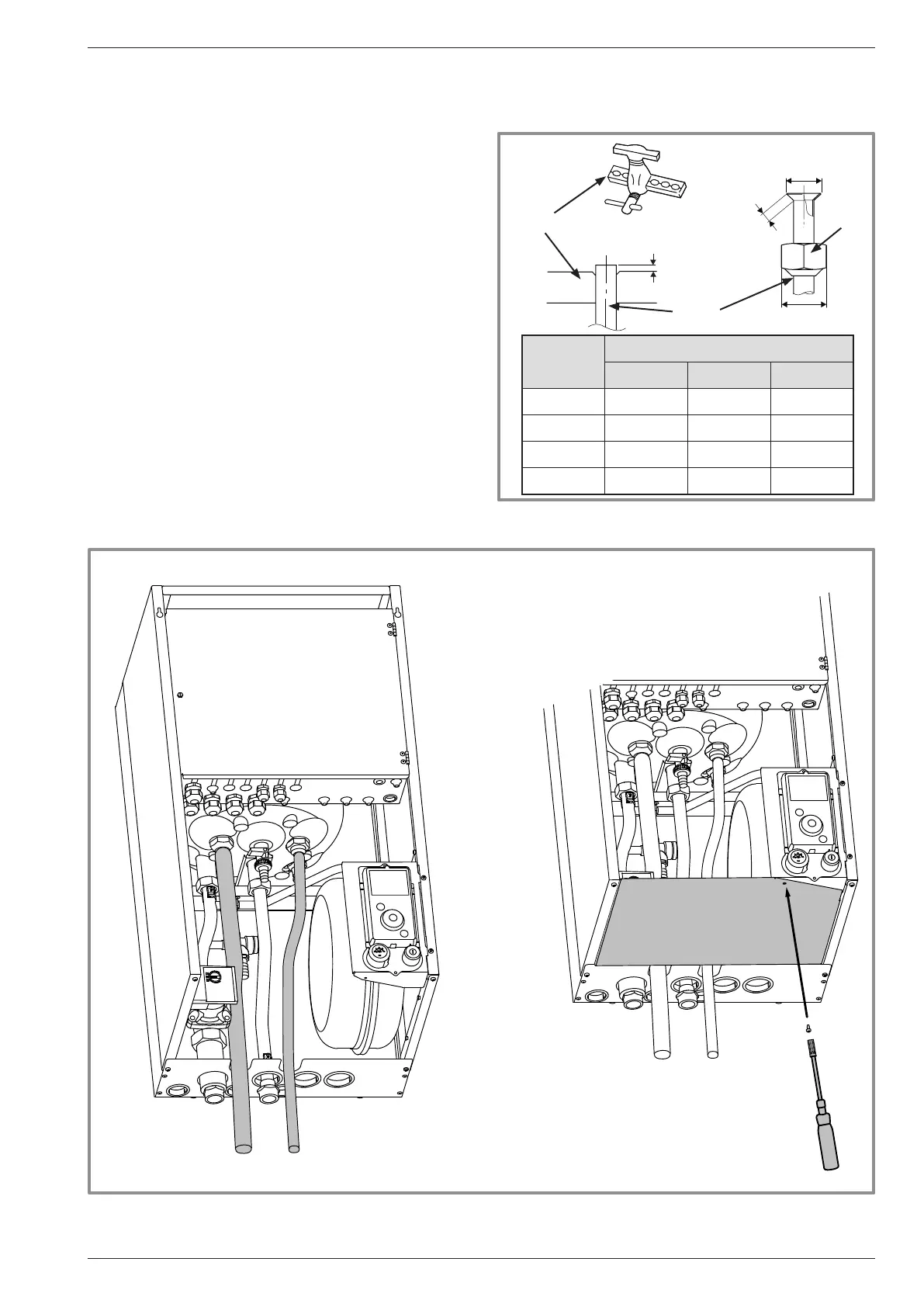

gure 19 - Flaring of the ared connections
Flaring tool
Pipe
Nut
are
B
L
C
Pipe ø
Values in mm
L B
0
/
-0.4
C
6.35 (1/4") 1.8 to 2 9.1 17
9.52 (3/8") 2.5 to 2.7 13.2 22
12.7 (1/2") 2.6 to 2.9 16.6 26
15.88 (5/8") 2.9 to 3.1 19.7 29
gure 20 - Feeding through ared connections
3.2.2 Creating the arings
- Cut the pipe to an appropriate length with a pipe-cutter
without damaging it.
- Carefully deburr it, holding the pipe pointing downward
to avoid introducing lings into the pipe.
- Remove the ared connection nut situated on the
valve to be connected and slide the pipe into the nut.
- Proceed to are it, letting the pipe protrude out of the
aring tool's tube.
After aring, check the state of the working radius (L).
This must not present any scratches or signs of
fracturing. Also check the dimension (B).
Installation manual "1872 - EN" - 25 -
Alféa Extensa A.I. Heat Pump
