Atlantic Alfea Extensa A.I. User Manual

Key:
1 - High performance and low noise impeller.
2 - Electrical motor with variable "inverter" operation.
3 - "Inverter" control unit.
4 - Connection terminal blocks
(power supply and interconnection).
5 - Refrigerant storage bottle.
6 - 4-way valve.
7 - Anti-corrosion treated bodywork.
8 - Main circuit electronic expansion valve.
9 - Noise and thermally insulated "inverter" compressor.
10 - Refrigeration connection valves (ared connectors)
with protective caps.
11 - Holding tank with condensate drain hole.
12 - High-performance exchange surface evaporator;
anti-corrosion treated hydrophilic aluminium ns and
grooved copper tubes.
13 - "Inverter" control unit.
14 - Solenoid valve for liquid injection.
15 - Electric expansion valve for liquid injection.
1.5 Description

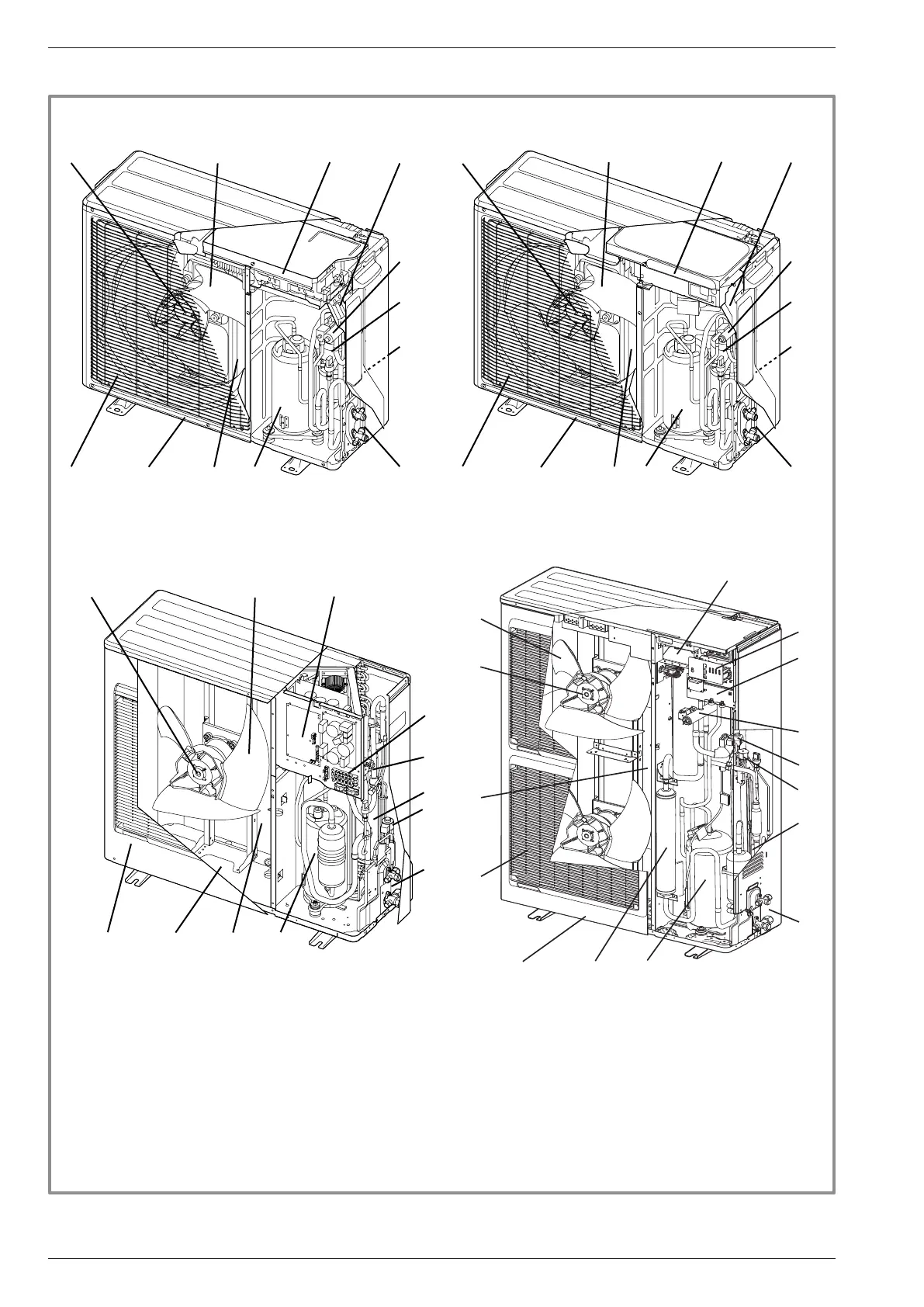

gure 10 - Outdoor unit components
1
2
3
4
6
5
8
10
9
1211
7
1
2
3
4
6
5
10
9
1211
7
8
1
2
3
4
6
5
8
10
9
1211
7
" Alféa Extensa A.I. 5 et 6
" Alféa Extensa A.I. 10
" Alféa Extensa A.I. 8
" Alféa Extensa A.I. 13 et 16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Installation manual "1872 - EN"
Alféa Extensa A.I. Heat Pump
- 14 -

Atlantic Alfea Extensa A.I. Specifications

General

Brand	Atlantic
Model	Alfea Extensa A.I.
Category	Heat Pump
Language	English
