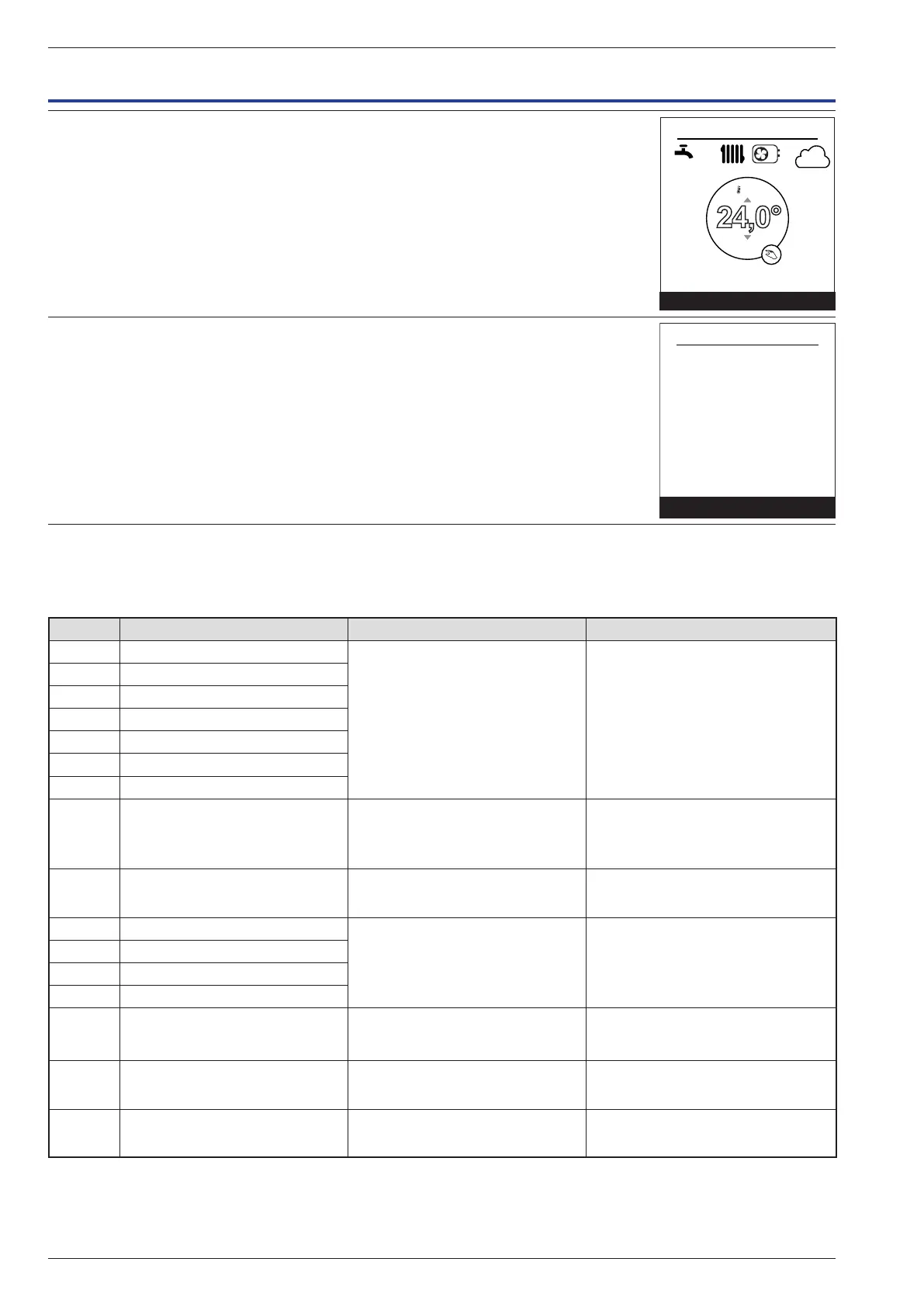

11 Fault Diagnosis
If a fault occurs, the error number appears on the welcome screen.
To obtain the error's designation, select it using the knob.
15:23
12°
24,0°
--,-
OFF
7 September 2017
Error XXX
" In the event of an error originating in the outdoor unit, the user interface
displays error code "370: Thermodynamic Generator" followed by the
outdoor unit error.
Error
138: No control sensor HP
Validate
" The error log can be viewed in the "System Status" > "Errors history", page 62.
11.1 Faults in the Hydraulic Unit
Error Designation Probable causes Proposed actions
10 Outside sensor
Short-circuit.
Unplugged or disconnected sensor.
Faulty sensor.
Other fault.
- Check the sensor's wiring.
- Replace the sensor.
32 Flow sensor 2
33 Flow sensor HP
44 Return sensor HP
50 DHW sensor 1
60 Room sensor 1
65 Room sensor 2
83 BSB, short circuit
Wiring problem (between the sensor
or remote control, display and
controller).
- Check the wiring.
127 Legionella temp
Anti-legionella temp setpoint not
reached.
- Check the wiring of the DHW backup
/ boiler connection.
441 BX31 no function
Short-circuit.
Unplugged or disconnected sensor.
Faulty sensor.
Other fault.
- Check the sensor's wiring.
- Replace the sensor.
442 BX24 no function
443 BX33 no function
444 BX34 no function
369 External External safety triggered EX3. -
370 Thermodynamic source
See details in "Faults in the Outdoor
Unit".
-
516 Heat pump missing
Loss of connection between
controller and HP.
- Check the wiring between X60 and
the interface board.
" Before any maintenance operation, make sure that the general power supply is switched o󰀨.
" Frost protection is not available when the heat pump is not powered up.
Installation manual "1872 - EN"
Alféa Extensa A.I. Heat Pump
- 80 -
