Atlantic Alfea Extensa A.I. User Manual

• Alféa Extensa A.I. models 13 and 16
Access to connection terminals:
- Remove the front plate. Remove the screws and
front panel.

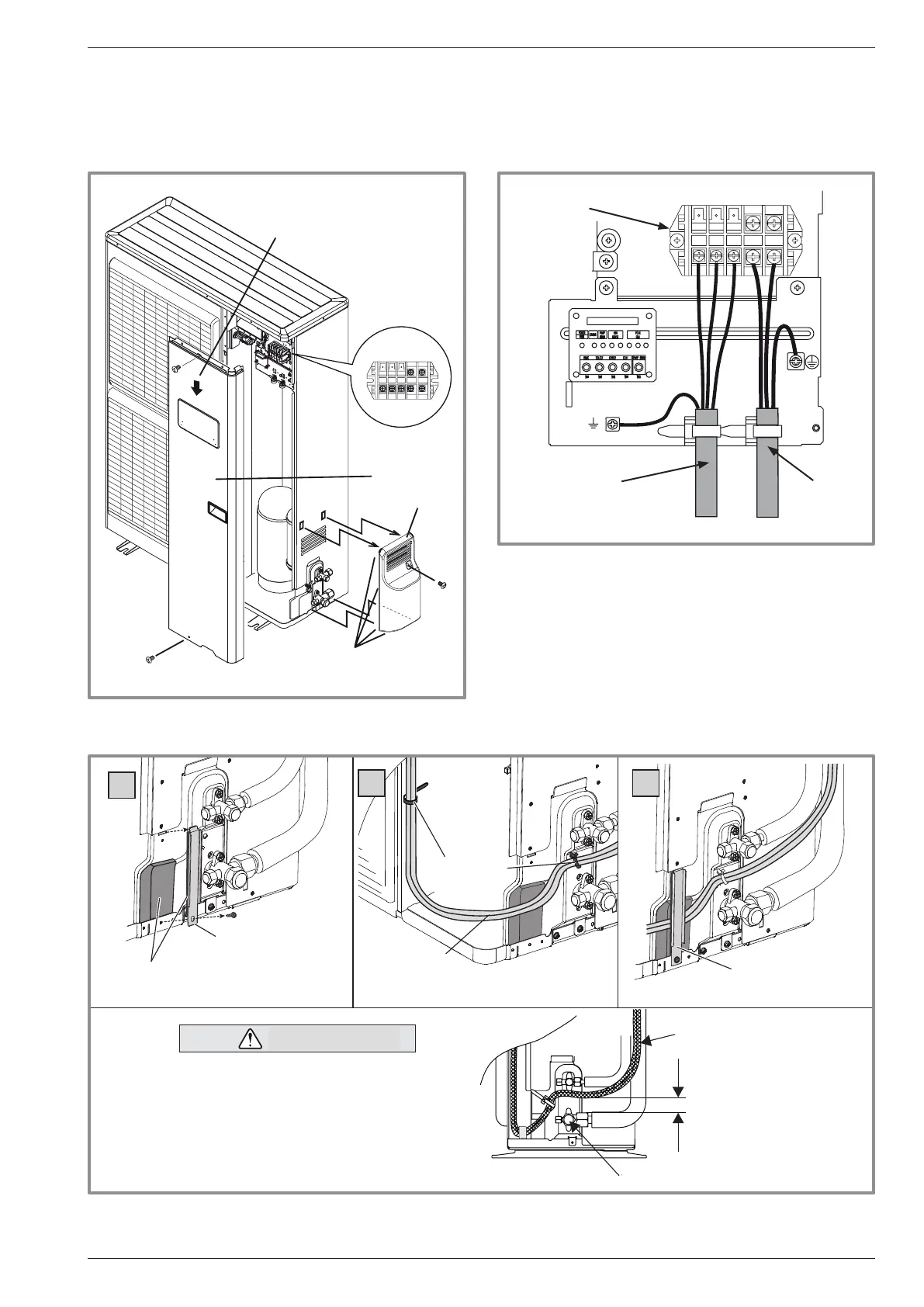

gure 35 - Access to single phase
outdoor unit's terminal block
gure 36 - Access to single phase
outdoor unit's terminal block
gure 37 - Finalising connection of single phase outdoor unit
Remove the screws
and push downwards
Remove
the front plate
Refrigeration
circuit caps
Hooks
(4 places)
Terminal
Terminal
Interconnection between
outdoor unit and
hydraulic unit
Main electricity
supply
Dégagement
Câbles
Vanne “gaz”
ATTENTION
Fixer les câbles afin qu'ils ne soient pas
en contact avec les tuyaux et les vannes.
Plaque de fixation
Isolant (joint)
Serre-câble
Câbles
(alimentation et
interconnexion)
Plaque de fixation
1
2 3
Cable clamp
Insulation (gasket)
Cables
(power supply and
interconnection)
Mounting plate
Mounting plate
Cables
Clearance
Gas valve
WARNING
Attach cables so that they do not come into
contact with pipes and valves.
- Make the connections according to the diagram(s)
gure 38, page 42.
- Use cable clamps to prevent any power cables from
being disconnected accidentally.
- Use the xing plate to keep the cables tight against the
insulating plate.
Installation manual "1872 - EN" - 41 -
