System status
Temperature control
Energy consumption
See "7.6 Temperature control", page 52.
Consumption can be displayed per usage:
- Heating (Zones 1 and 2).
- Cooling.
- Domestic Hot Water (DHW).
- Total (Heating + Cooling + Hot Water).
This information is available for:
- the last 8 days: daily consumption (Tdy = Today, D-1 = yesterday, etc.).
- the last 12 months: monthly consumption (Initial letter of month. e.g. J = January, etc.).
- the last 10 years: annual consumption (last 2 digits. e.g. 16 = 2016).

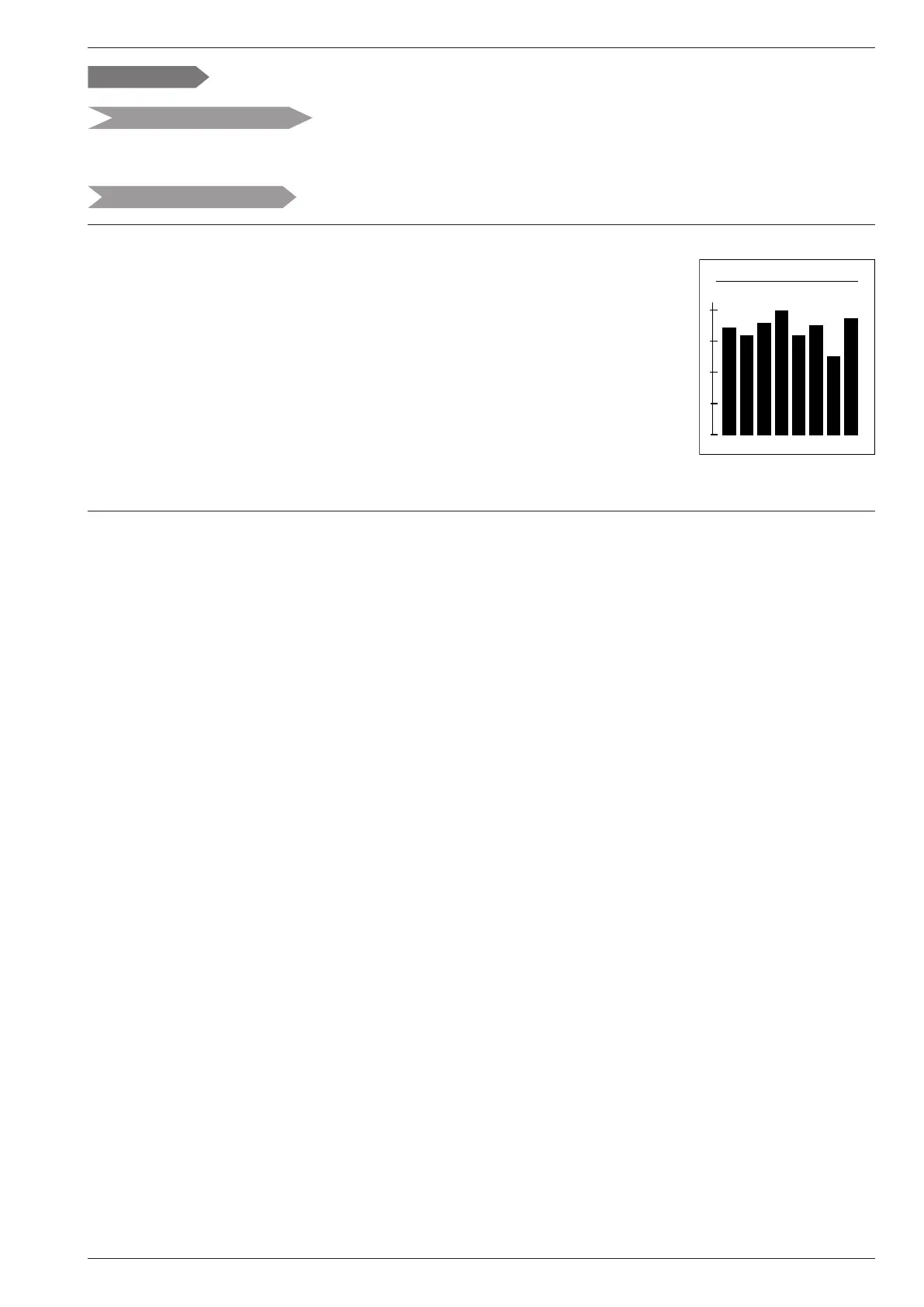

20kW.h
Daily cons.
Heating
D-7 D-6 D-5 D-4 D-3 D-2 D-1 Tdy
Example for daily consumption of the heating system.
Some settings (or menus) might not be displayed. They are dependent on the installation's conguration (and installed options).
