EBL RE-Drive and EBL RE Module EN EBL Drives and Controllers

7 Function Switch 3 (x1) Numbers increase in increments of

1 as the button is pressed.

8 HI/LO Speed Switch (Only RE-

DRIVE)

Change free speed of the tool.

9 Power Supply Main Switch (Only

RE-DRIVE)

Turn the power supply on and off.

When the power supply is “on”, the

LED inside the switch is lit. The pro-

tection circuit automatically oper-

ates and turns off the power supply

if the electric screwdriver locks and

causes an overload. In this case,

turn off the main power switch and

turn it back on after one minute.

See section Troubleshooting.

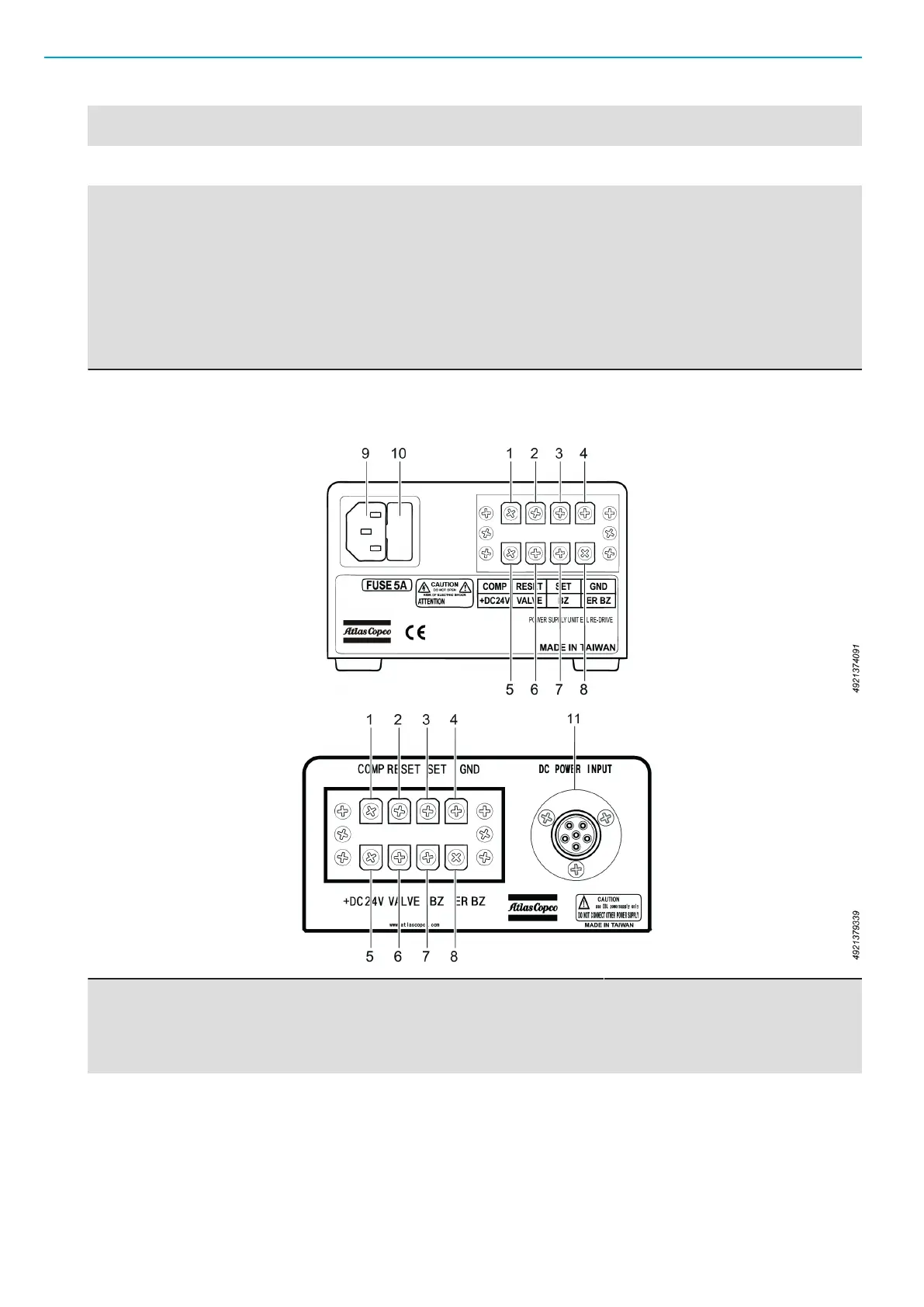

Rear Panel

1 COMP Output signal for Batch OK. Output

for 0.1 seconds after the time set

for the Tool Disable Timer 2

elapses from Tightening OK of the

last screw in the batch.

2 RESET Input for Reset signal. Resets the

counter functions, interrupts output

of the VALVE signal and releases

the work piece held by an external

device. Performs the same function

as the Reset Switch on the front

panel.
