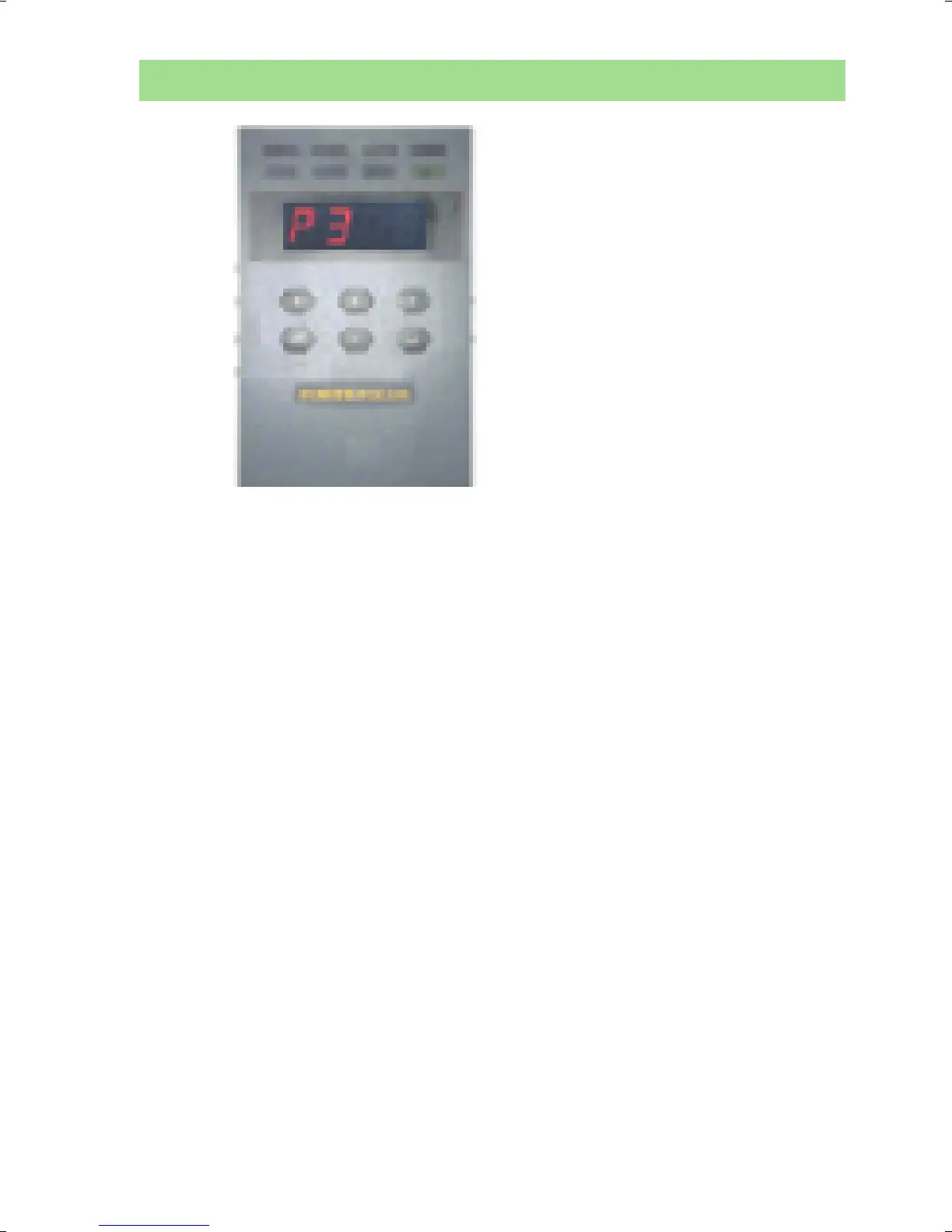

The Compact user interface
1. OK
2. NOK
3. Alarm
4. AutoSet
5. n x OK
6. Job OK
7. STAT
8. Prog Control
1. OK The tightening result is within specifi ed limits
2. NOK The tightening result is outside of specifi ed limits
3. ALARM Steady light means the alarm needs to be ac-
knowl- edged. Flashing light means no acknowledgment
is needed
4. AUTO SET The AutoSet programming routine is running
5. n x OK The no. of OK tightenings equals batch size
6. JOB OK A Job has been completed
7. STAT Any of the calculated values falls outside of the sta-
tistical limits
8. PROG CONTROL Steady light indicates an unlocked keypad.
Flashing green means that programming control is taken
by ToolsTalk PF
