Connecting to MTF 6000
This section describes how to configure MTF 6000 and TPS Control to set up I/O communication between
the controllers. MTF 6000 has several digital relay outputs and inputs that can be used for communication
with TPS. All inputs and outputs can be configured using the ToolsTalk software. For a complete instruc-
tion of ToolsTalk MTF, see the ToolsTalk MTF user guide.
To ensure that the TPS works properly with MTF 6000, the I/O connections must be connected in PNP
mode (source type, positive logic), as described in the applicable instruction for separate MTF 6000 con-
troller.
Note! This section describes an example of how to configure the MTF 6000 controller and TPS. Depend-
ing on the type of operation you may need to set the inputs and outputs to other values.
1. Check that the digital I/O cable is connected to the TPS and the MTF 6000.
2. Check that a PC with the ToolsTalk MT software installed is connected to the MTF 6000.
In ToolsTalk MT
1. Click I/O state to display the status of the controller I/O signal. A new window appears.

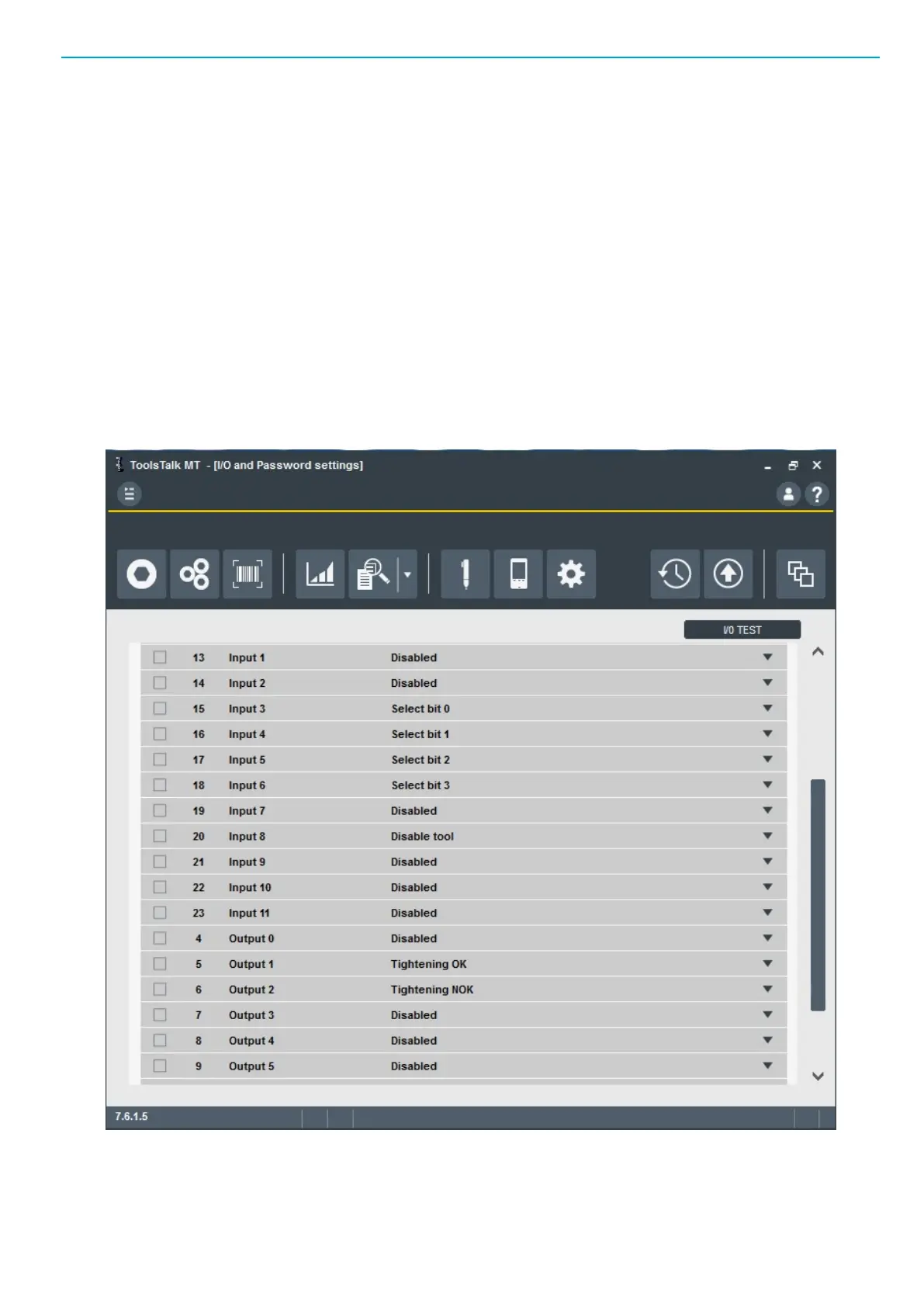

2. Set input and output signals as seen in the figure below.
3. Click Save to controller to store all selected values in the controller.
In TPS Control
1. Go to Menu>Setup>Input Configuration and set the input signals matching the output signals set up
in ToolsTalk MT.
