User guide EN TPS Control

2. Press VAL to confirm the selection.

3. Press ESC to leave the menu.

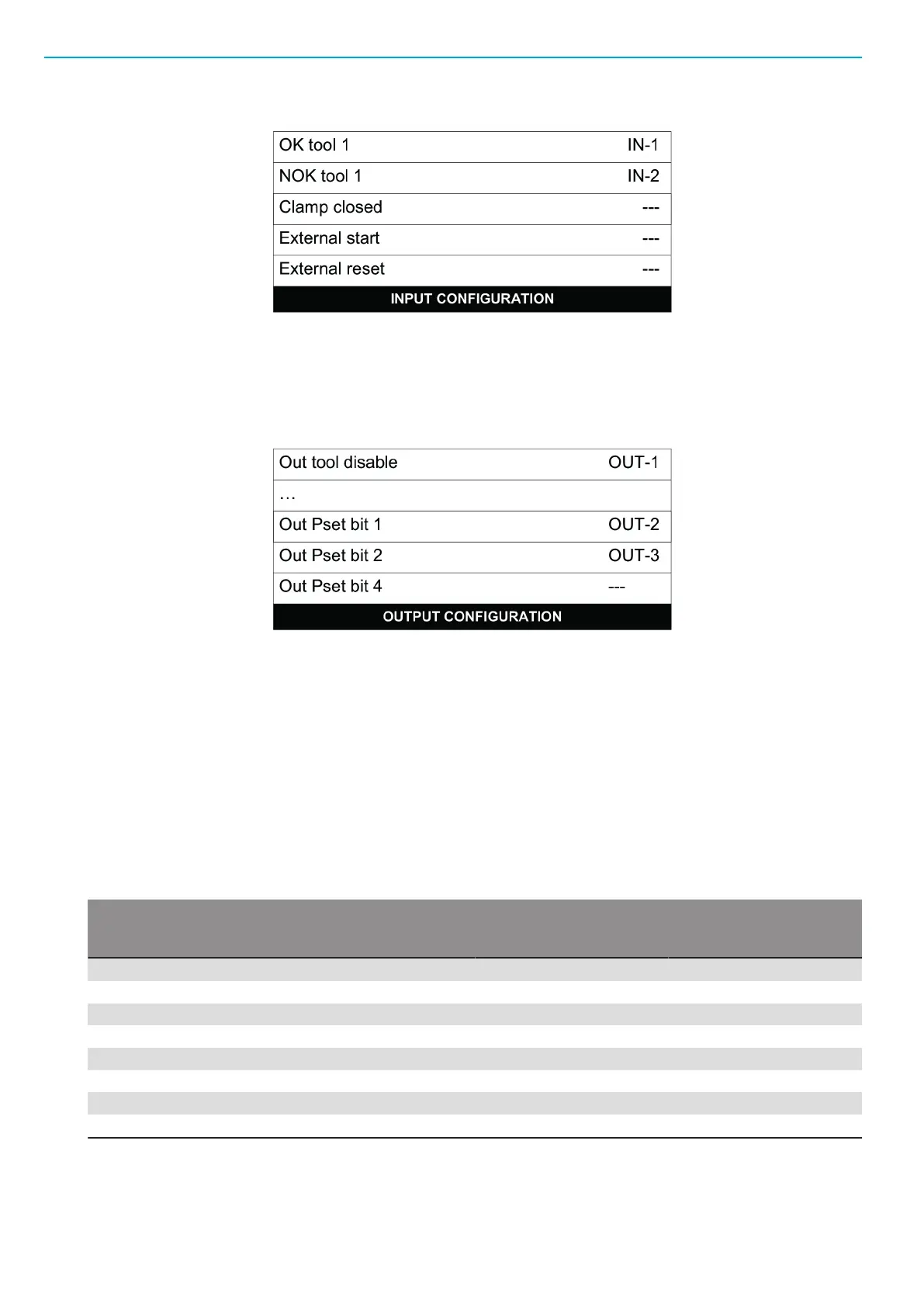

4. Go to Output Configuration and set the output signals matching the input signals in the tool con-

troller.

5. Press VAL to confirm the selection.

6. Press ESC to leave the menu.

Connecting to EBL RE-Drive

This section describes how to configure EBL RE-Drive and TPS Control to set up communication between

the controllers. All digital inputs and outputs can be configured in the EBL RE-Drive controller. For a com-

plete instruction of EBL RE-Drive, see the applicable EBL user guide.

Note! To ensure that the TPS works properly with EBL RE-Drive, the F3 button in EBL must be pro-

grammed with Screwdriver operation set to OFF.

1. Check that the digital I/O cable is connected to TPS and EBL RE-Drive as described in the table be-

low.

TPS Controller EBL RE-Drive

Pin Signal Cable color Connector

2 Out-1 Yellow SET

3 Out-2 Brown RESET

5 IN-2 White Not used

6 IN-4 Purple Not used

13 GND 24 V Black GND

14 +24 V Red +DC24V

17 IN-1 Blue COMP

18 IN-3 Gray Not used

For more information about EBL RE-Drive connections, see the applicable EBL RE-Drive User Guide.

In EBL RE-Drive controller

1. Hold the F1 button depressed.
