Atlas Copco TPS Control User Manual

TPS Control EN User guide
© Atlas Copco Industrial Technique AB - 9836 5819 01
23
2. Press the Reset button.
3. Wait for the buzzer to sound and the LED F1 changes to
4. Release the F1 button.
5. Batch Number setting (LED F1 = ) is selected. Set batch number to value 01.
6. Press the F1 button repeatedly to change setting to System setting mode (LED F1 = ).
7. The F2 button has no impact on I/O communication with TPS and can be set to any applicable value.
8. Press the F3 button to set screwdriver operation to OFF, that is either value 0 or value 1.
9. To exit the Settings menu, hold the F1 button depressed until the buzzer sounds twice.
In TPS Control
1. Go to Menu>Setup>Input Configuration and set the signals and inputs matching the relay signals
set up in EBL RE-Drive.
2. Press VAL to confirm the selection.
3. Press ESC to leave the menu.
4. Go to Output Configuration and set the signals matching the input signals in the tool controller.
5. Press VAL to confirm the selection.
6. Press ESC to leave the menu.
Connecting to air tools
Air tools are enabled as a licensed function. To enable the license for air tools, see section Licence han-
dling.
All digital inputs and outputs are configured in the TPS. To set up I/O communication between TPS and
the tool, use the following procedure:
In TPS Control

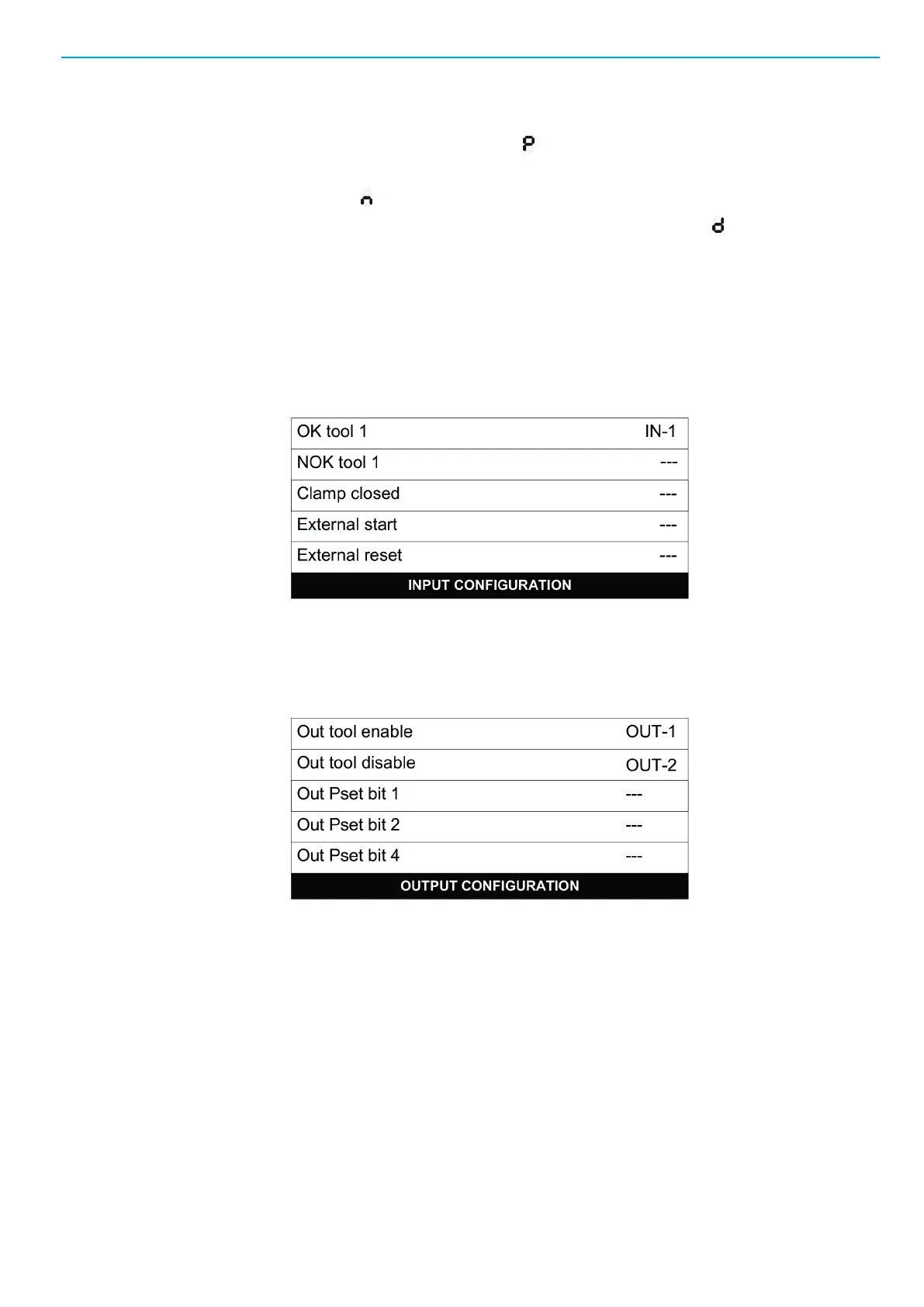

1. Go to Menu>Setup>Input Configuration and set the input signals as seen in the figure below.
