TPS Control EN User guide
© Atlas Copco Industrial Technique AB - 9836 5819 01
7

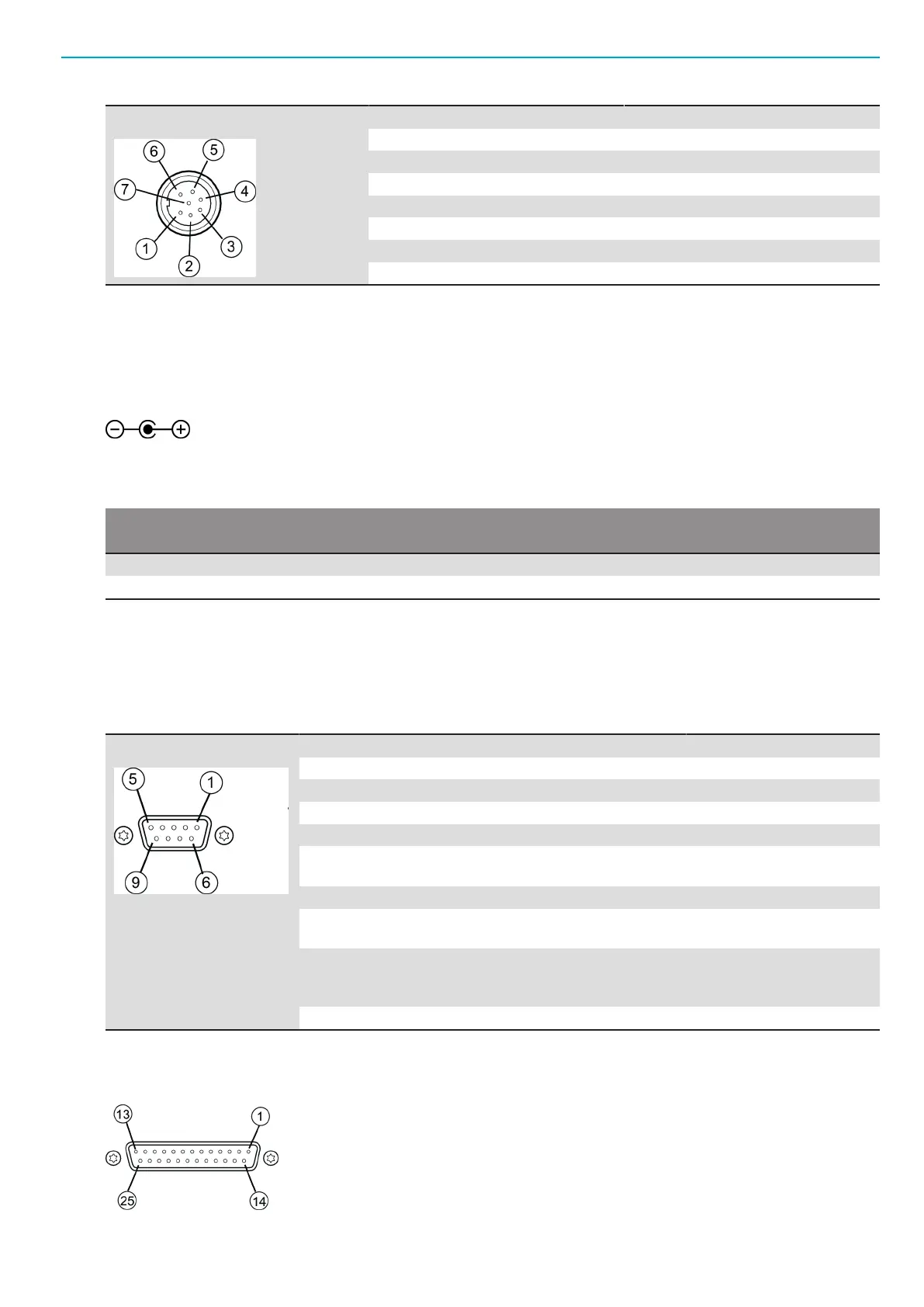

PIN Signal
1 24 V Supply
2 Clock +
3 Clock -
4 Data -
5 Data +
6 Not connected
7 24 V GND
Power supply
The TPS Control is powered by an external 24-volt power supply unit. The external power supply unit can
be ordered as an accessory from Atlas Copco.
As an alternative, the unit can be supplied with 24 VDC from an external power signal through the I/O
plug.
Power consumption
The table below shows the power consumption of the TPS Control.
Status Power consumption
Inrush 400 mA
Operating 200 mA
RS-232C serial interface
Serial interface with a 9-pole connection for external devices, such as PC or barcode scanners. COM port
settings: 9600 Baud to 115 KBaud.
Note that for a PC a straight cable must be used. It is not possible to use the type of cross cable generally
used for connection to Power Focus or Tensor.
PIN Signal Description
1 Not connected
2 TxD Transmit 1
3 RxD Receive 1
4 Not connected
5 GND Potential-free GND of
RS-232 interface
6 Not connected
7 HSHI Handshake input or Re-
ceive 2
8 HSHO Handshake output (con-
stantly -12 V) or Transmit
2
9 Not connected
Digital I/O connection
Digital I/O interface with a 25-pole connection for synchronization with tool controllers.
