- 102 -

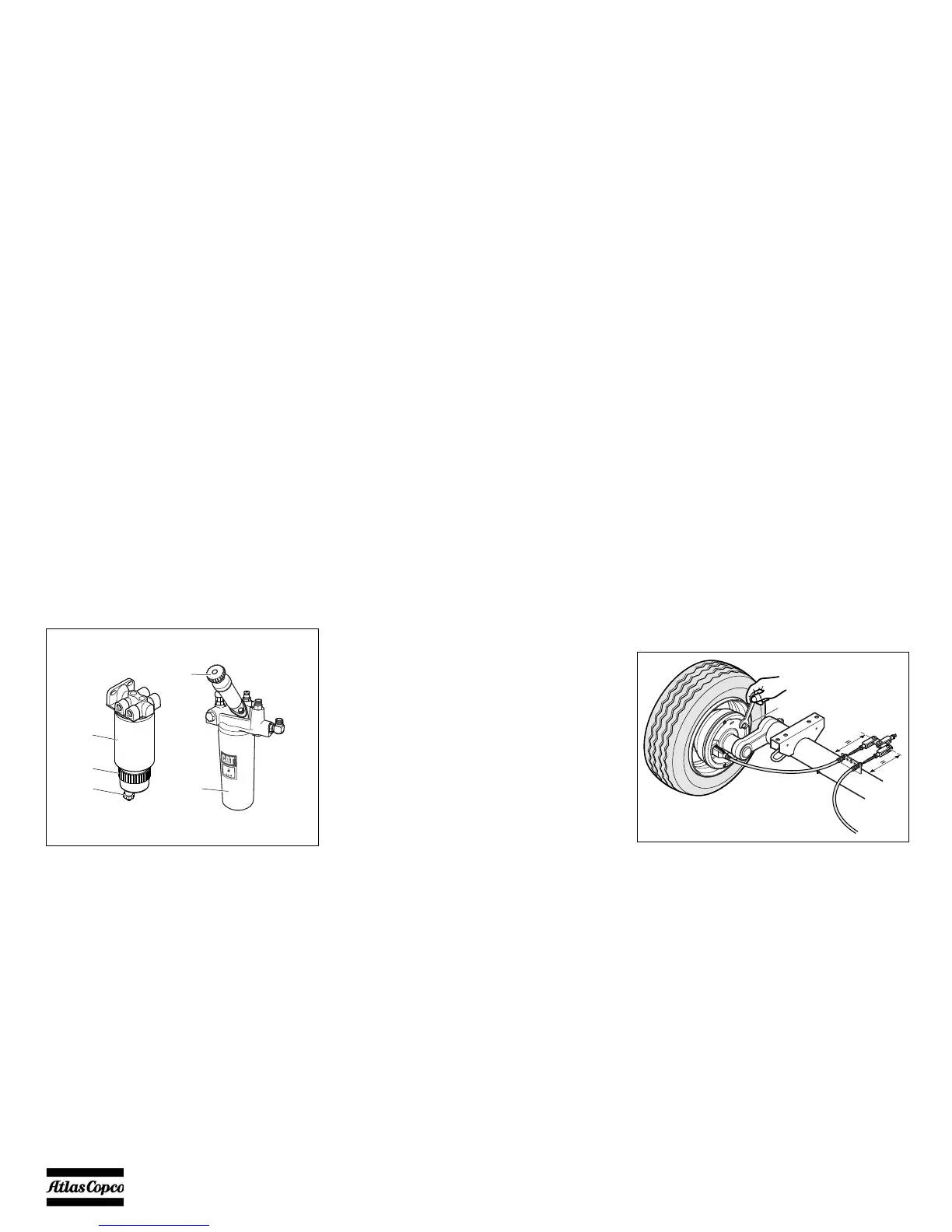

REPLACING FILTER ELEMENTS
Replacing the filter elements:
Installation instructions:
1. Drain fuel from the bowl.
2. Remove filter (2, 3), filterelement (4) and separate
bowl (2) from element (3).
3. Apply film of gas oil to new bowl seat.
4. Screw bowl (2) to new element (3) tightly by
hand.
5. Apply film of gas oil to new element seals.
6. Screw on filter (2, 3) and filterelement (4) tightly
by hand.
7. Open head vent and operate pump (5). Close vent
when fuel begins to purge.
8. Check for leaks, retighten if necessary.
Drain instructions:
1. Open bowl drain valve (1), operate pump (5) and
pump water out.
2. Close drain valve (1).
BRAKE SYSTEM ADJUSTMENT
Brake shoe adjustment Wagon
Tighten the adjustment nut (1) on the wheel brake
with a spanner until the wheel will not rotate in the
direction of travel.
Centre the brake shoes by applying the parking
brake several times.
Turn back the adjustment bolt (1) by
approximately one turn, until no braking effect
can be felt when the wheel is turned in a forward
direction.
Check the position of the brake equalizer
compensators with the parking brake applied.
Positioned at right angles to the brake rods = even
play on both wheel brakes.
Re-adjust brakes if necessary.
As a check, apply the parking brake slightly and
check that the braking effect on the wheels (in the
direction of travel) is the same on the right and on
the left.
(5)
(4)
(1)
(2)
(3)
(1)
