UNDERCARRIAGE
WAGON

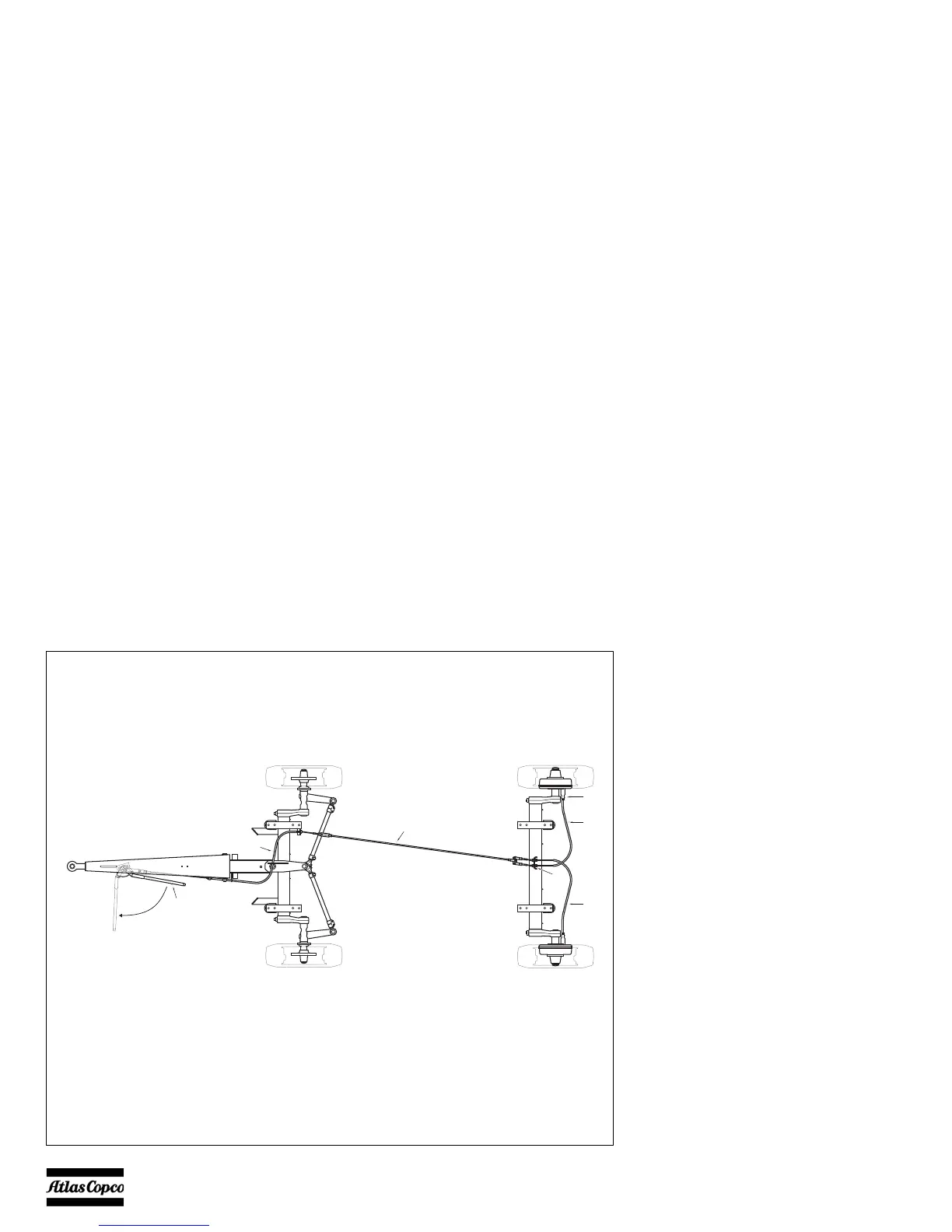

The wagon undercarriage is equipped with a parking
brake only. It consists of drum brakes installed on the
rear wheels and a lever that is connected through a
steel wire linkage to the brakes.
The parking brake is applied by moving a lever (10)
in the direction of the arrow.
(10)
(9)
(7)
(4)
(1)
(1)
(5)
