BRAKE ADJUSTMENT WAGON

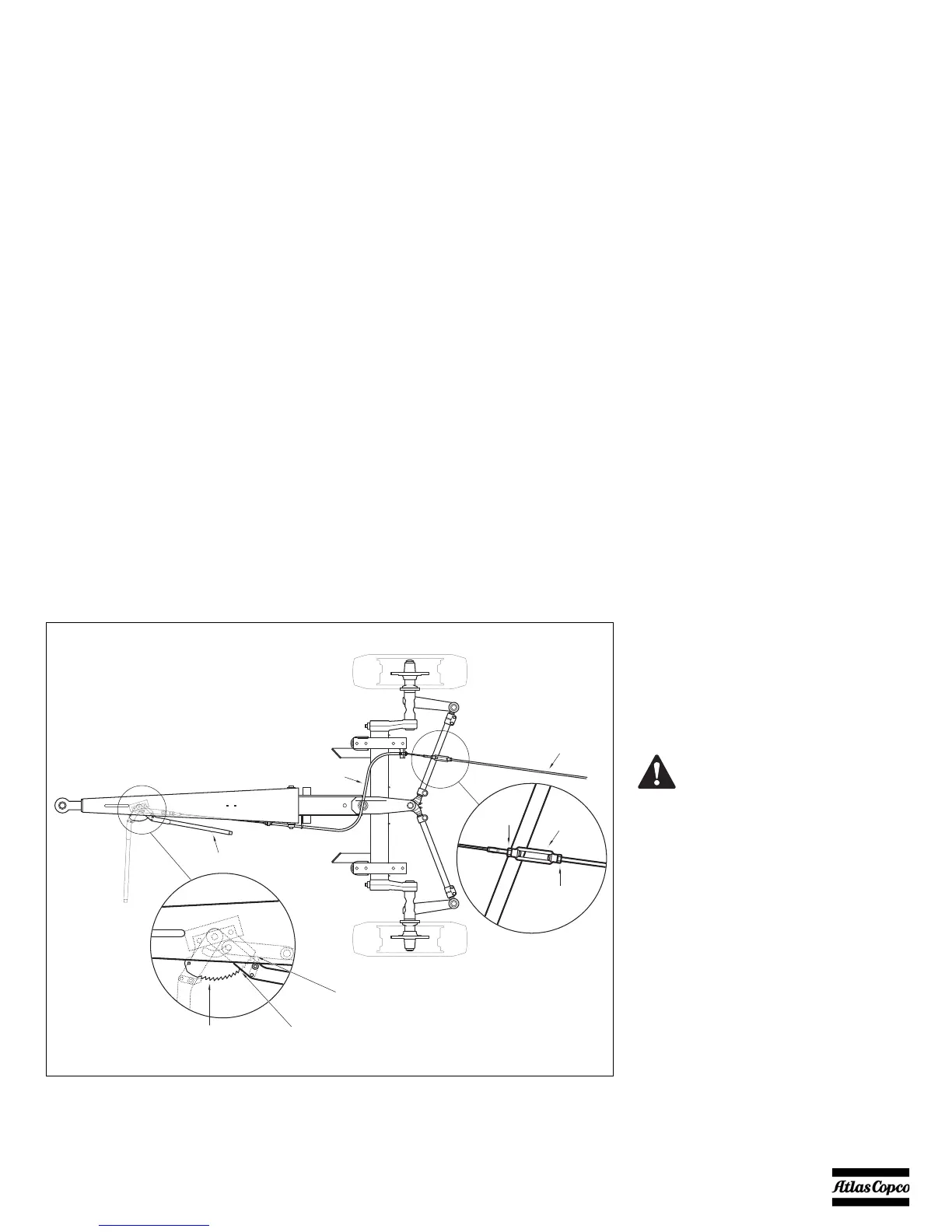

Adjusting the linkage
• The parking brake is adjusted by using the
turnbuckle (8). Adjust till the play in the linkage is
1-3 mm (max. 3mm is allowed).
• Apply the parking brake lever several times by
hand with a force of 200 to 300 N and put it back
into the -not engaged- tooth “1” position. Adjust
the turnbuckle (8) as described above.
Testing the parking brake
• For testing the parking brake, apply the parking
brake lever. Brake power must be reached
between the 6th and 14th tooth of the toothed
segment (“Z”).
