Atlas Copco XRXS 607 - Page 35

- 35 -
7-C
7-D
9822 0963 68

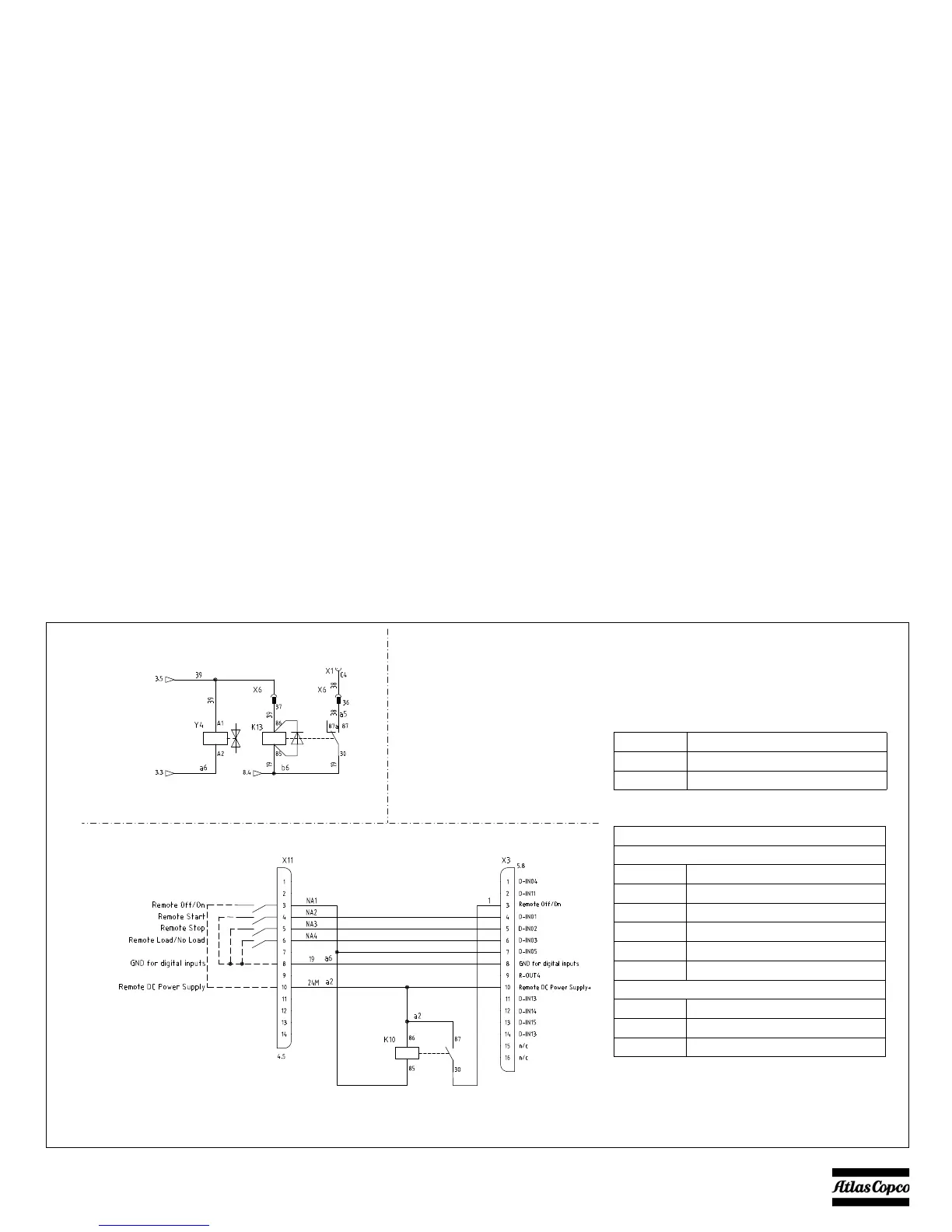

Reference Name
7-C Etherstart
7-D Remote Control
7-D Remote Control
X11
3 Remote Off/On
4 Remote Start
5 Remote Stop
6 Remote Load/No Load
8 GND for digital inputs
10 Remote DC Power Supply
X3
3 Remote Off/On
8 GND for digital inputs
10 Remote DC Power Supply +
