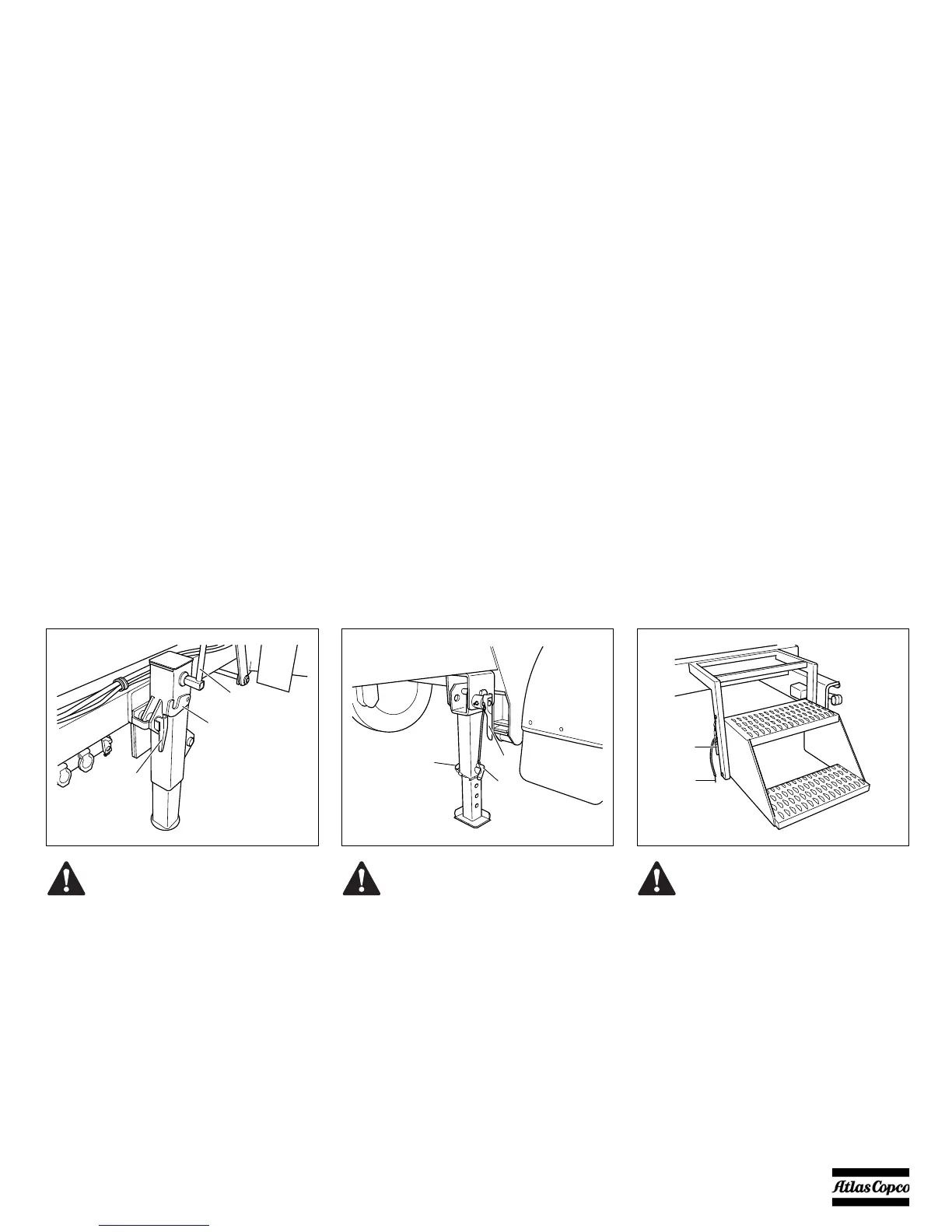

When driving without the support leg being
completely cranked and raised, the support leg may
be ripped off or the crank may become detached and
hurled through the air. As a result people may get
injured, killed or equipment may be damaged.
After coupling the compressor to the towing vehicle,
pull the handbrake of the towing vehicle.
Check wether the compressor has been coupled
properly. Undo latch (2) and using the crank (3) raise
the support leg. Lock the crank with the latch (2).
Release the support lock (1) and turn the support leg
in a horizontal position. Secure the support leg with
the lock.
When driving without the support leg being
completely raised, the support leg may be ripped off
and hurled through the air. As a result people may get
injured, killed or equipment may be damaged.
Remove hairpin spring (3) and take out the pin (2).
Slide the leg extension upwards as far as possible and
lock it with the pin (2). Secure the pin with the hairpin
spring. Release the support lock (1), turn the support
leg upwards and secure it in horizontal position with
the support lock.
When driving without the ladder being completely
raised, the ladder may be ripped off and hurled
through the air. As a result people may get injured,
killed or equipment may be damaged.
Fold the ladder upwards and lock it with the pin (1).
Secure the pin with the hairpin spring (2).
Ensure that the support leg has been
fully raised, and folded upwards prior to
each trip. Always secure the crank
before each trip.
(3)
(2)
(1)
Ensure that the support leg has been
fully raised, and folded upwards prior to
each trip.
(3)
(2)
(1)
Ensure that the ladder leg has been fully
folded up and secured prior to each trip.
(1)
(2)
