Steps Of Installation
14
BP8000

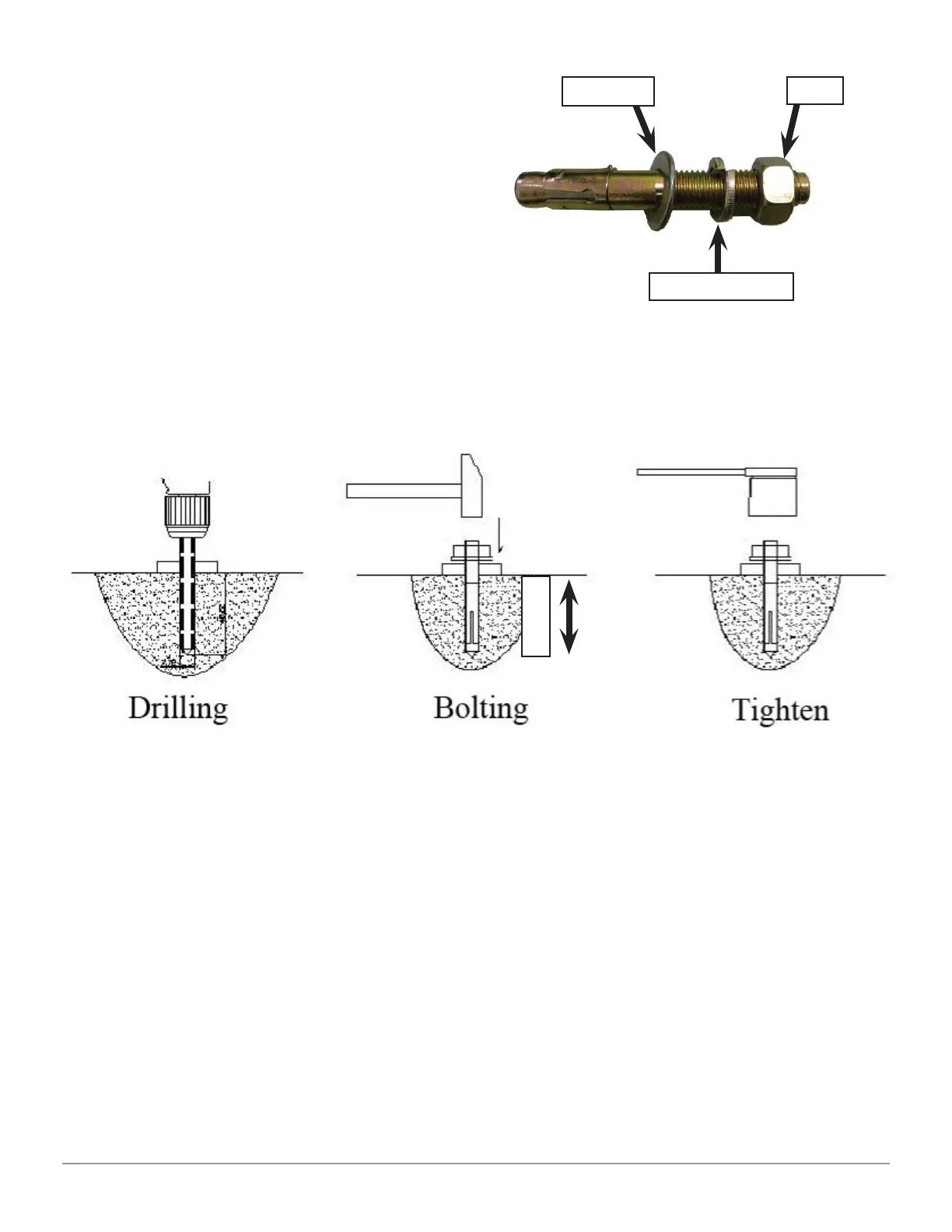

G. Fix
Anchor Bolts
1.
Prepare anchor bolts
Fig. 14
2.
Use a hammer drill with a ¾” (19mm) masonry bit and drill all the anchor
holes. Install the anchor bolts with a hammer
. Tighten the Anchor Bolts
between 85 and 110 foot pounds.
Fig. 15
Lock washer
W
asher
Nut
3 1/2”
13
15
