Data Direct

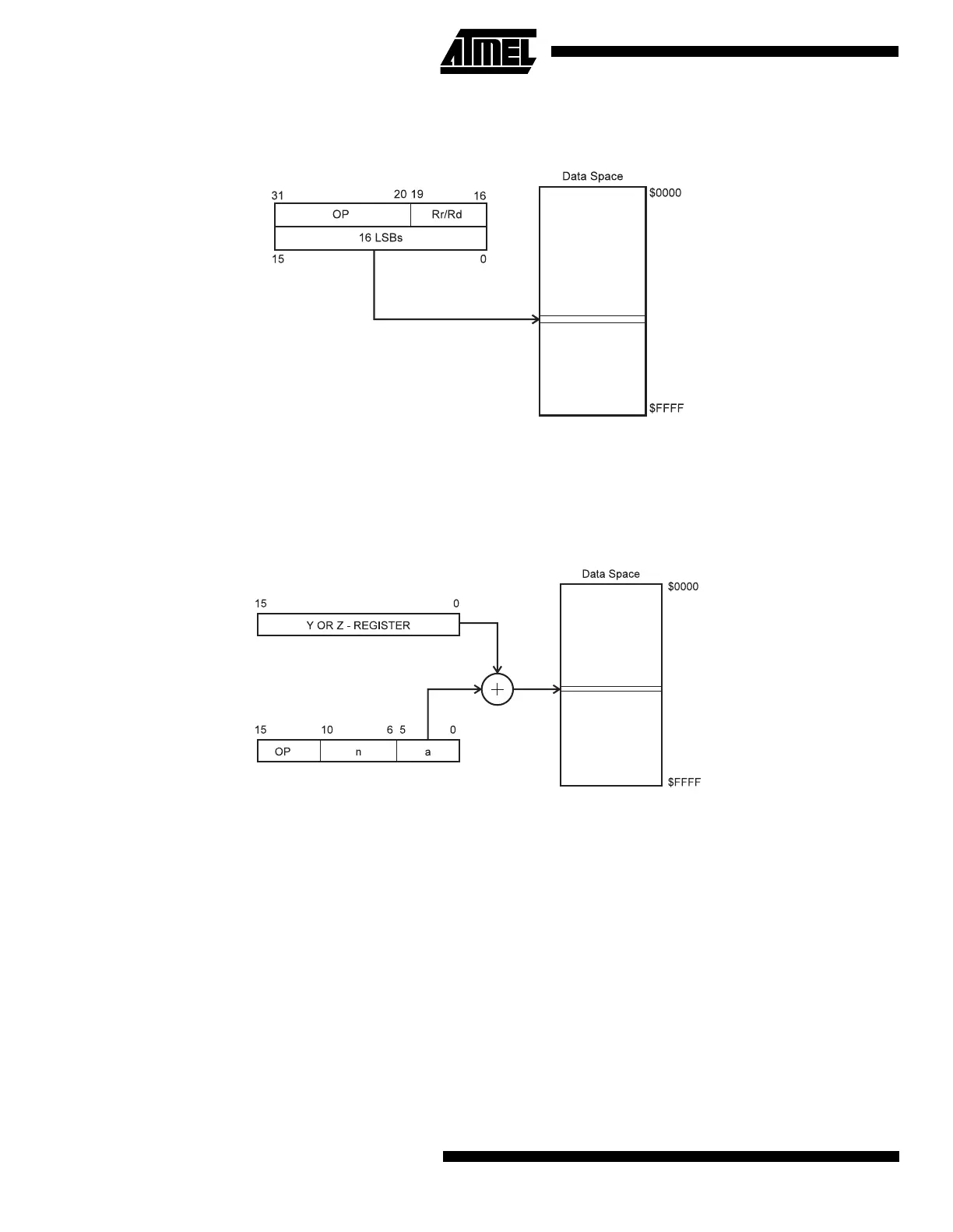

Figure 12. Direct Data Addressing
A 16-bit Data Address is contained in the 16 LSBs of a two-word instruction. Rd/Rr specify the destination or source
register.
Data Indirect with Displacement
Figure 13. Data Indirect with Displacement
Operand address is the result of the Y or Z-register contents added to the address contained in 6 bits of the instruction
word.
