AT90S4414/8515
13
Data Indirect

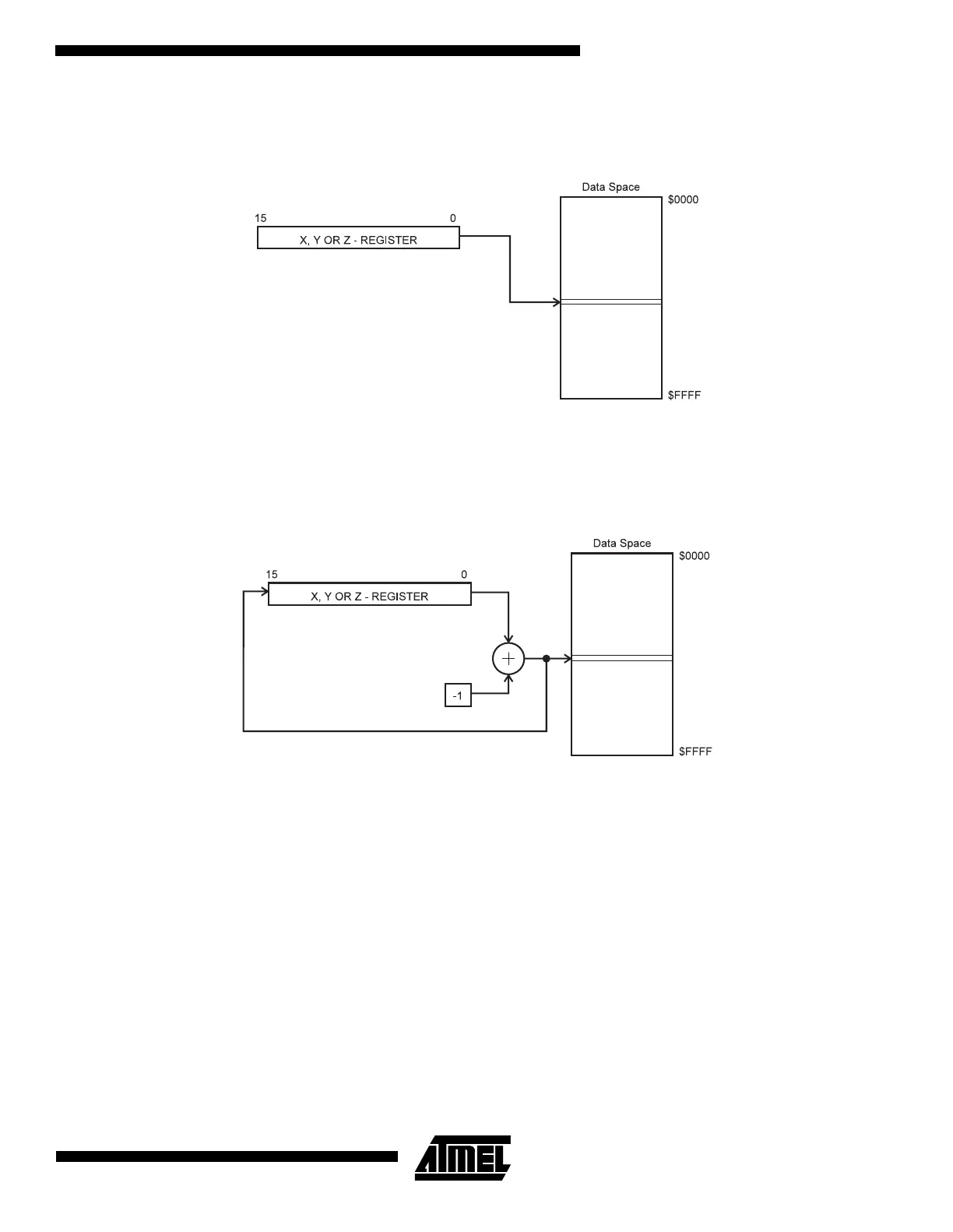

Figure 14. Data Indirect Addressing
Operand address is the contents of the X, Y or the Z-register.
Data Indirect with Pre-decrement
Figure 15. Data Indirect Addressing with Pre-decrement
The X, Y or the Z-register is decremented before the operation. Operand address is the decremented contents of the X, Y
or the Z-register.
