Data Indirect with Post-increment

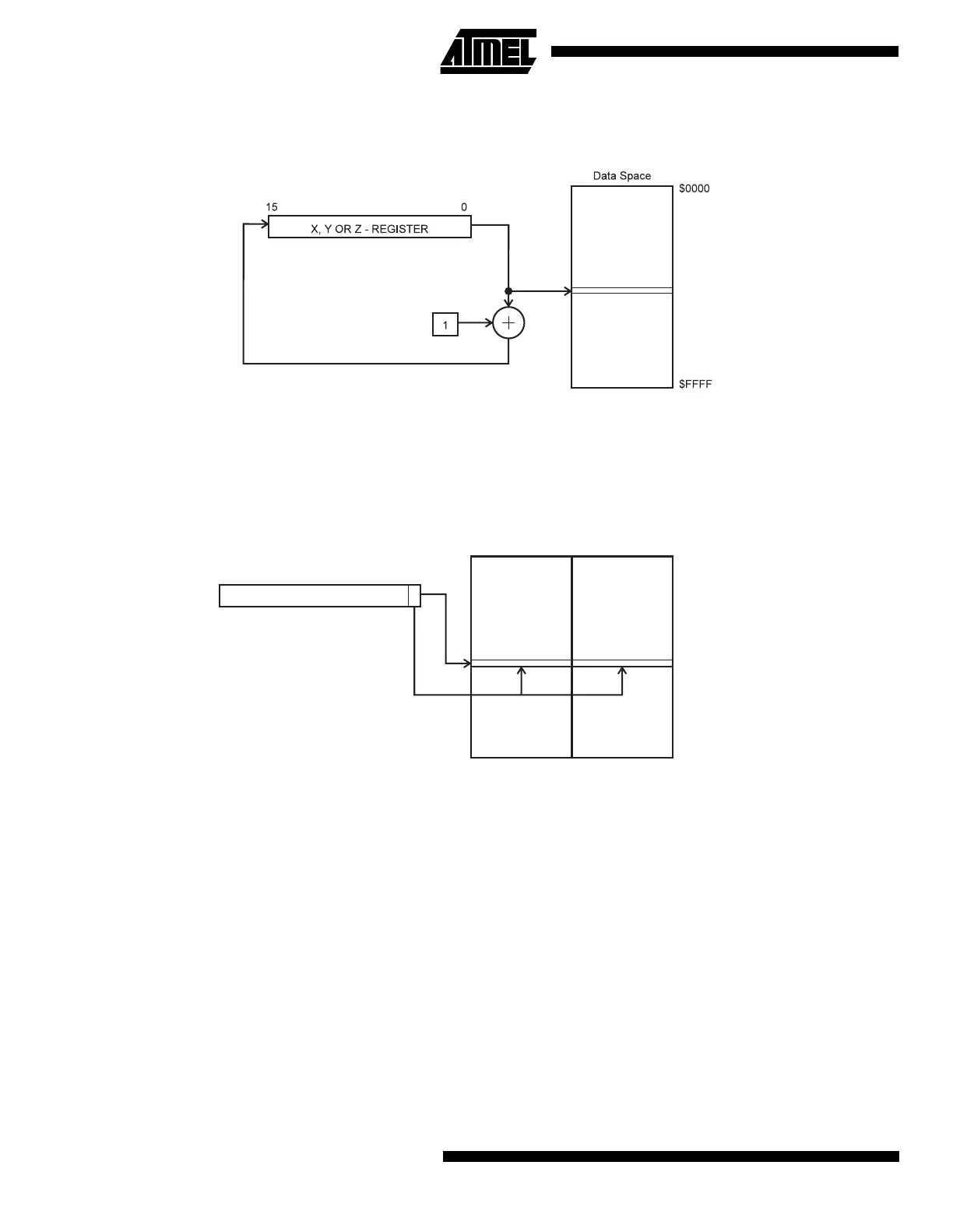

Figure 16. Data Indirect Addressing with Post-increment
The X, Y or the Z-register is incremented after the operation. Operand address is the content of the X, Y or the Z-register
prior to incrementing.
Constant Addressing Using the LPM Instruction
Figure 17. Code Memory Constant Addressing
Constant byte address is specified by the Z-register contents. The 15 MSBs select word address (0 - 2K/4K), the LSB
selects low byte if cleared (LSB = 0) or high byte if set (LSB = 1).
$000
$7FF/$FFF
PROGRAM MEMORY
15 1 0
Z-REGISTER
