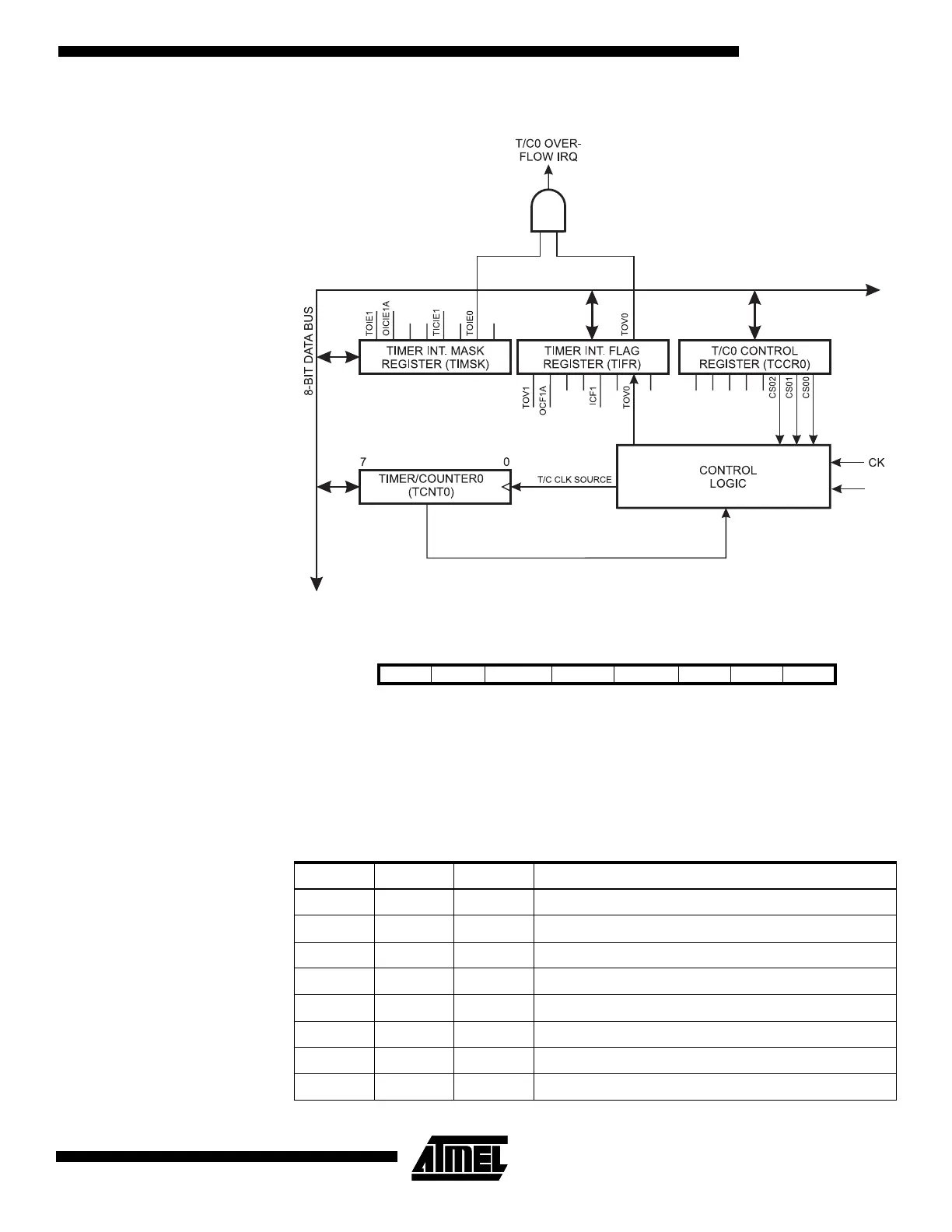

Figure 29. Timer/Counter0 Block Diagram
Timer/Counter0 Control
Register – TCCR0
• Bits 7..3 – Res: Reserved Bits
These bits are reserved bits in the AT90S2313 and always read zero.
• Bits 2,1,0 – CS02, CS01, CS00: Clock Select0, Bit 2,1 and 0
The Clock Select0 bits 2, 1 and 0 define the prescaling source of Timer/Counter0.
T0
Bit 7 6 5 4 3 210
$33 ($53) – – – – – CS02 CS01 CS00 TCCR0
Read/Write R R R R R R/W R/W R/W
Initial value 0 0 0 0 0 0 0 0
Table 7. Clock 0 Prescale Select
CS02 CS01 CS00 Description
0 0 0 Stop, the Timer/Counter0 is stopped.
001CK
010CK/8
011CK/64
1 0 0 CK/256
1 0 1 CK/1024
1 1 0 External Pin T0, falling edge
1 1 1 External Pin T0, rising edge
