ATN Zebra 16 Operator's And Safety Manual

OPERATOR AND SAFETY MANUAL
1NO0035UK-05
Zebra 16
29

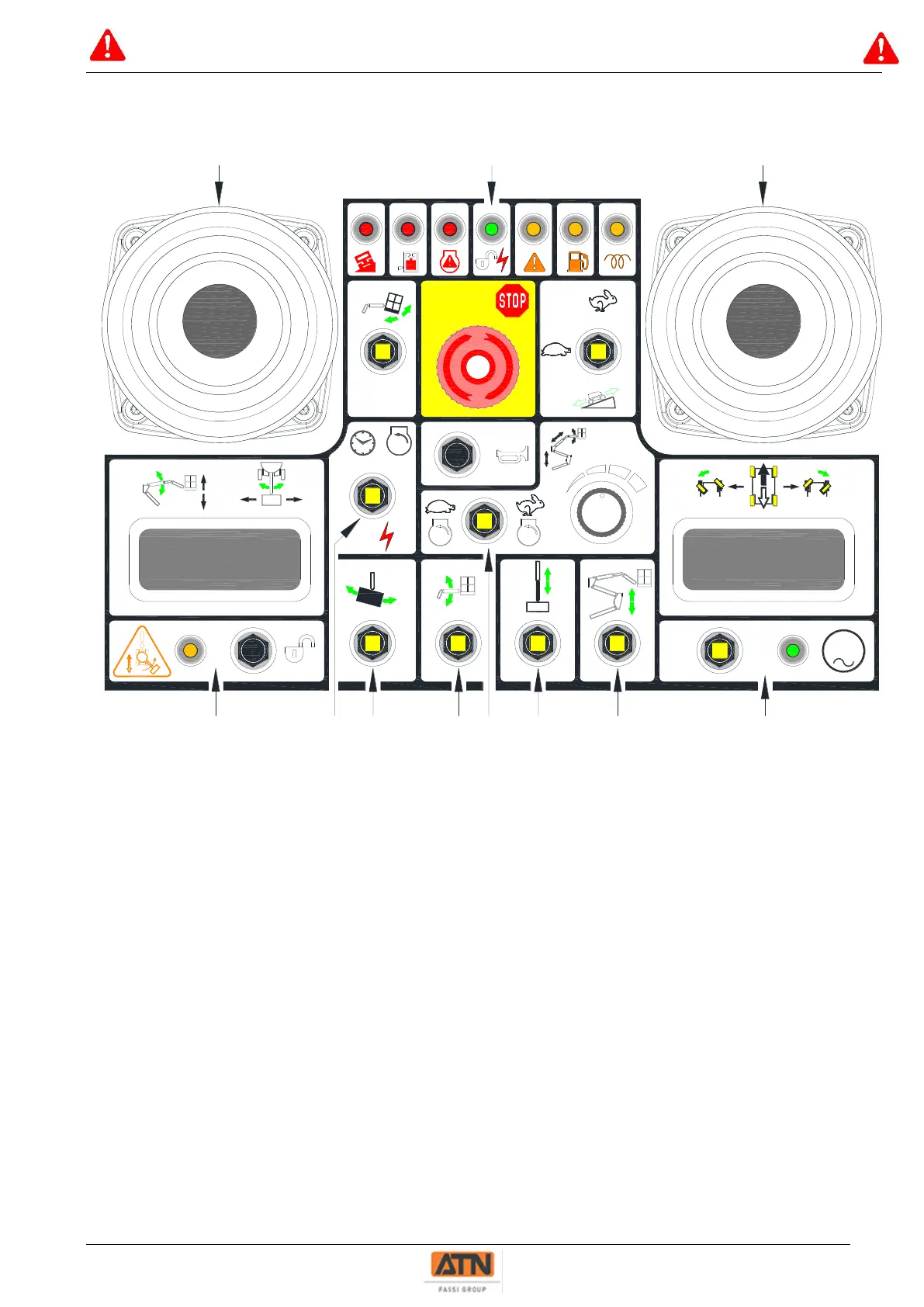

4.1.2 PLATFORM CONTROL STATION
1- Emergency Stop switch.
2- Diesel engine preheating and starting / Auxiliary group button.
3- Arm 1 Up / Down control.
4- Telescope In / Out control.
5- Arm 3 Up / Down control.
6- Right / Left Platform Rotation control.
7- Platform Up / Down levelling control.
8- Arm 2 Up / Down control and Right / Left Orientation joystick.
9- Engine rate selector.
10- Movement speed adjustment gauge.
11- Drive movement and Steering joystick.
12- Drive speed selector switch.
13- Drive movement light and validation (Option).
14- Horn.
15- Generator light and Start up (Option).
16- Indicators.
(15)(3)(4)(5)(6)(13)
(16)
(10)
(14)
(12)
(7)
(1)
(2)
(8) (11)
(9)
G
2 sec
ONOFF
START
5 sec
AUX
