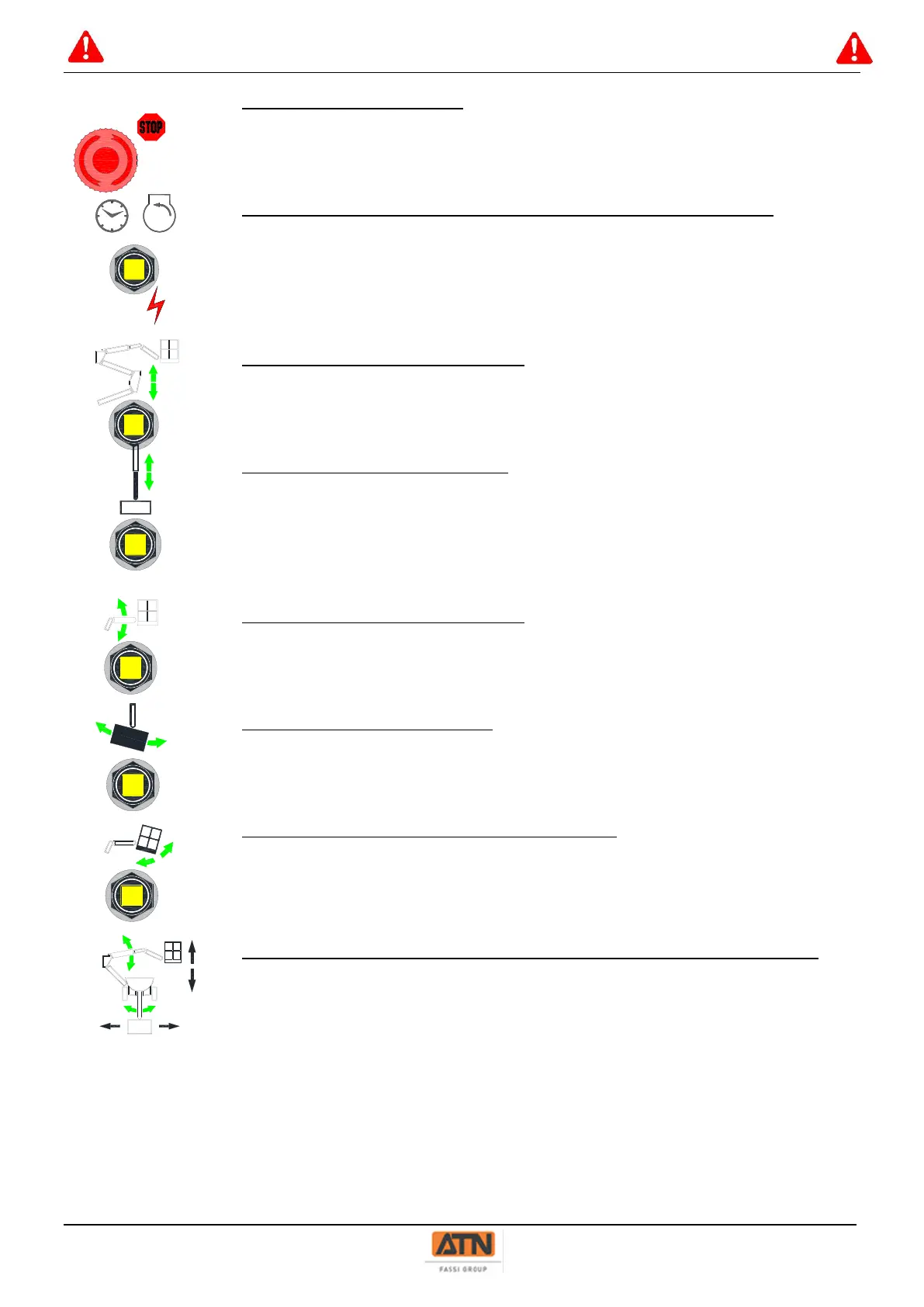

1- Emergency Stop switch:
In the event of an emergency, PRESS the button to CUT all the machine's
movements and shut down the diesel engine. Turn the button by a 1/4 turn
to restore the electrical power.
2- Diesel engine preheating and starting / Auxiliary group button:
Tilt the lever upwards to start the diesel engine.
Press the validation pedal and tilt the lever downwards to use the auxiliary
hydraulic group.
See Section 4.2 – Diesel engine operation.
See Section 6.1.3 – Auxiliary hydraulic group.
3- Arm 1 Raise / Lower command.
Tilt the lever forward to raise arm 1 or backwards to lower arm 1.
See Section 4.4.2 – Elevation.
4- Telescope In / Out command:
Tilt the lever backwards to take the telescope out or forwards to bring it
back in.
See Section 4.4.3 – Telescope.
5- Arm 3 Raise / Lower command.
Tilt the lever forward to raise arm 3 or backwards to lower arm 3.
See Section 4.4.2 – Elevation.
6- Platform rotation command:
Tilt the lever to the right or to the left to move the platform in the
corresponding direction.
See Section 4.4.6 – Work platform rotation.
7- Platform Raise / Lower levelling command:
Tilt the lever forwards to adjust the platform level upwards or backwards to
adjust the platform level downwards.
See Section 4.4.4 – Platform levelling.
8- Arm 2 Raise / Lower command and Right / Left Orientation joystick.
Push the lever forwards to raise arm 2 or pull the lever backwards to lower
arm 2.
Tilt the lever to the right or to the left to move the structure in the
corresponding direction.
See Section 4.4.2 – Elevation.
See Section 4.4.5 – Structure orientation.
