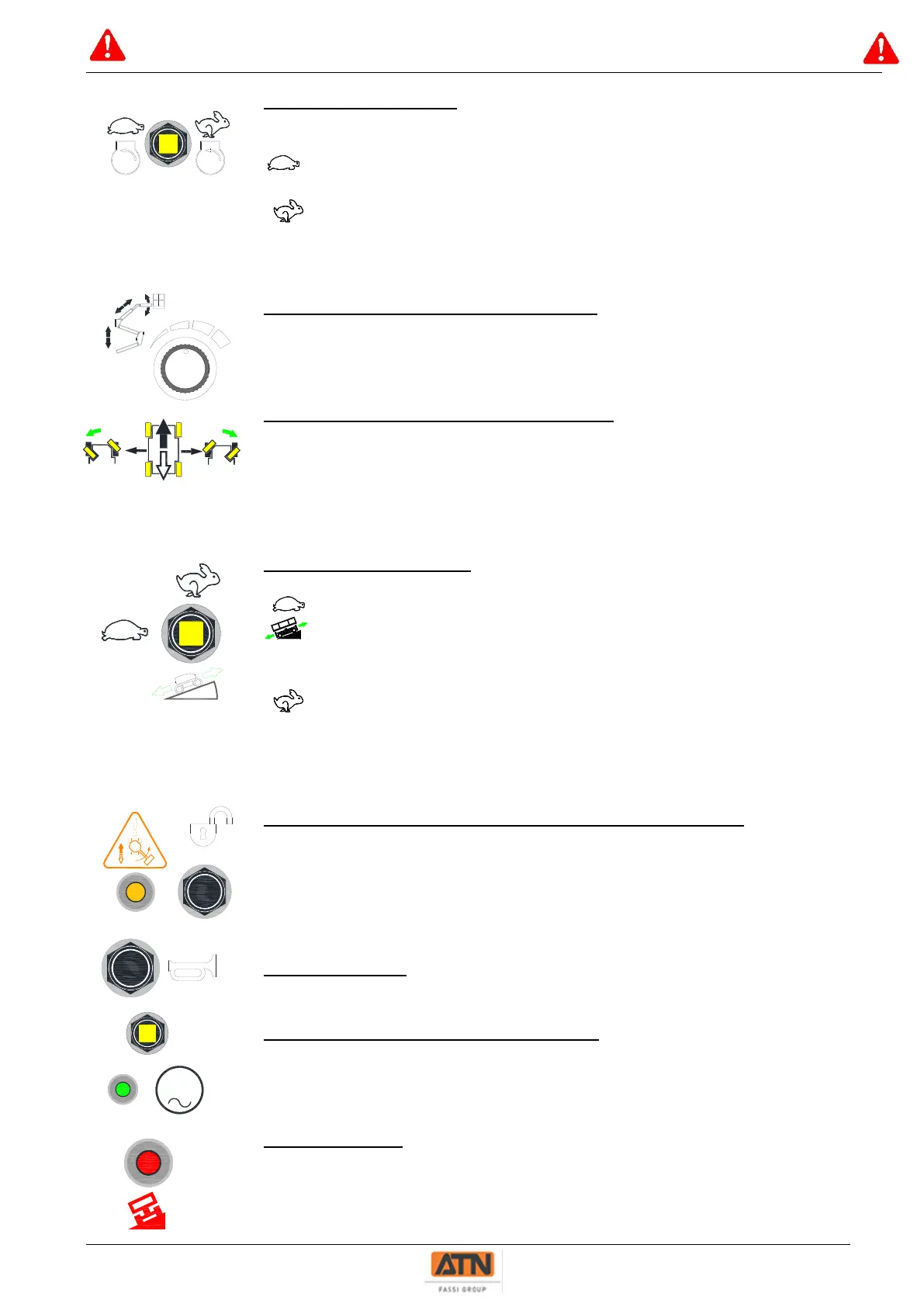

9- Engine rate selector:
This 2-position switch is used to select the engine rate for the structure
movements:
: The structure movements will all be carried out slowly with the
diesel engine running slowly.
: When the command system allows it, the structure movements will
be carried out quickly, with the diesel engine accelerated.
See Section 4.2.2 – Engine rate.
10- Movement speed adjustment gauge:
The gauge is used to adjust the structure movement speed (except for
arm 2 movements and the structure orientation movements).
See Section 4.4.2 – Elevation.
11- Drive movement and Steering joystick.
Push the lever forwards to move the machine forwards or pull the lever
backwards to reverse the machine.
Tilt the lever to the right or to the left to turn the wheels in the
corresponding direction.
See Section 4.3 – Drive - Steering.
.
12- Drive speed selector:
This 3-position switch is used to select the maximum drive speed:
: Slow speed
: Intermediate speed. In this position, the engine power and torque
are at their maximum to enable the machine to run on steep slopes or
move on hilly terrain.
: Quick speed:
Note: When the platform is raised, the machine moves at slow speed by
default.
See Section 4.2.2 – Engine rate.
13- Drive direction movement light and validation (Option):
The light comes on when the structure is oriented beyond the rear axle.
The validation button must be activated before a drive movement is
commanded.
See Section 4.3 – Drive - Steering.
14- Sound alarm:
Press the button to activate the horn.
15- Generator light and Start up (Option):
Tilt the lever to the right (ON) to start up the generator.
The light goes out when the generator is running.
Tilt the lever to the left (OFF) to cut the generator.
16- Tilt Indicator:
This light comes on when the machine has reached the maximum
authorised tilt.
See Section 5.1 – Tilt detector.
