OPERATOR AND SAFETY MANUAL
1NO0035UK-05
Zebra 16
63
8- Light - Tilt / Tilt angle values / Operating mode:
9- Light - Validation pedal activated.
10- Light - Drive direction warning (Option: See § 4-3).
11- Light - Drive movement validation button activated (Option: See § 4-3).
12- Light - Generator button to ON (Option).

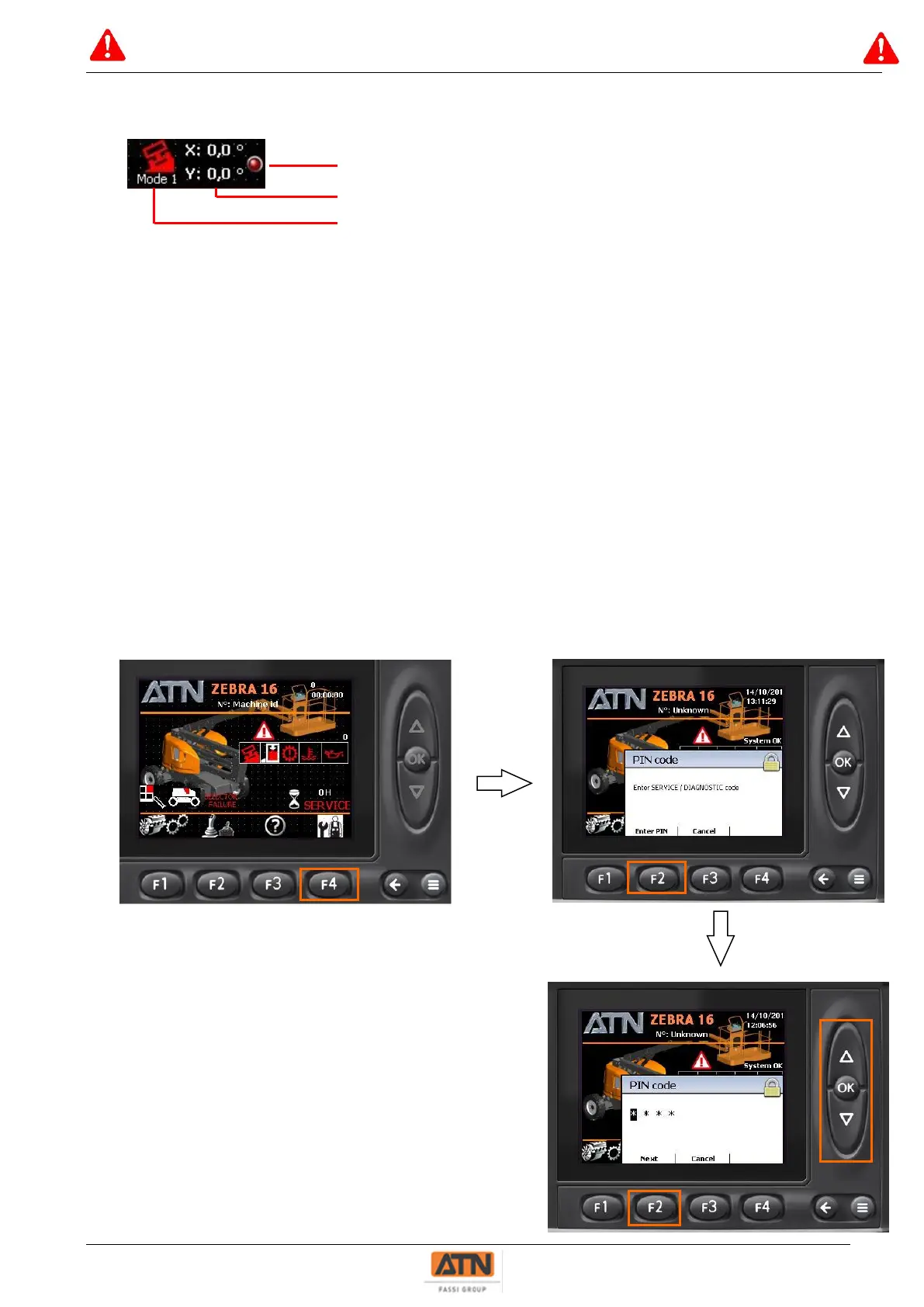

8.2.4 REVISION (F4 - FROM THE WELCOME SCREEN)
The indications for the revision/maintenance operations are programmed to correspond to
the intervals indicated in the table in chapter 7.2.2. When a maintenance operation is
required, the maintenance light flashes slowly.
Once the maintenance operation has been carried out, it must be "validated" in the system
to launch a new countdown:
From the welcome screen, press [F4]. Press [F2].
Use the right hand arrows to display the access
code digits.
Press [OK] to validate each digit and move onto
the next one.
Once the last digit has been entered, press [OK]
then [F2] (or [OK] again).
Tilt light (Green / Red)
Tilt angle values
Operating mode selected (see § 5-1)
