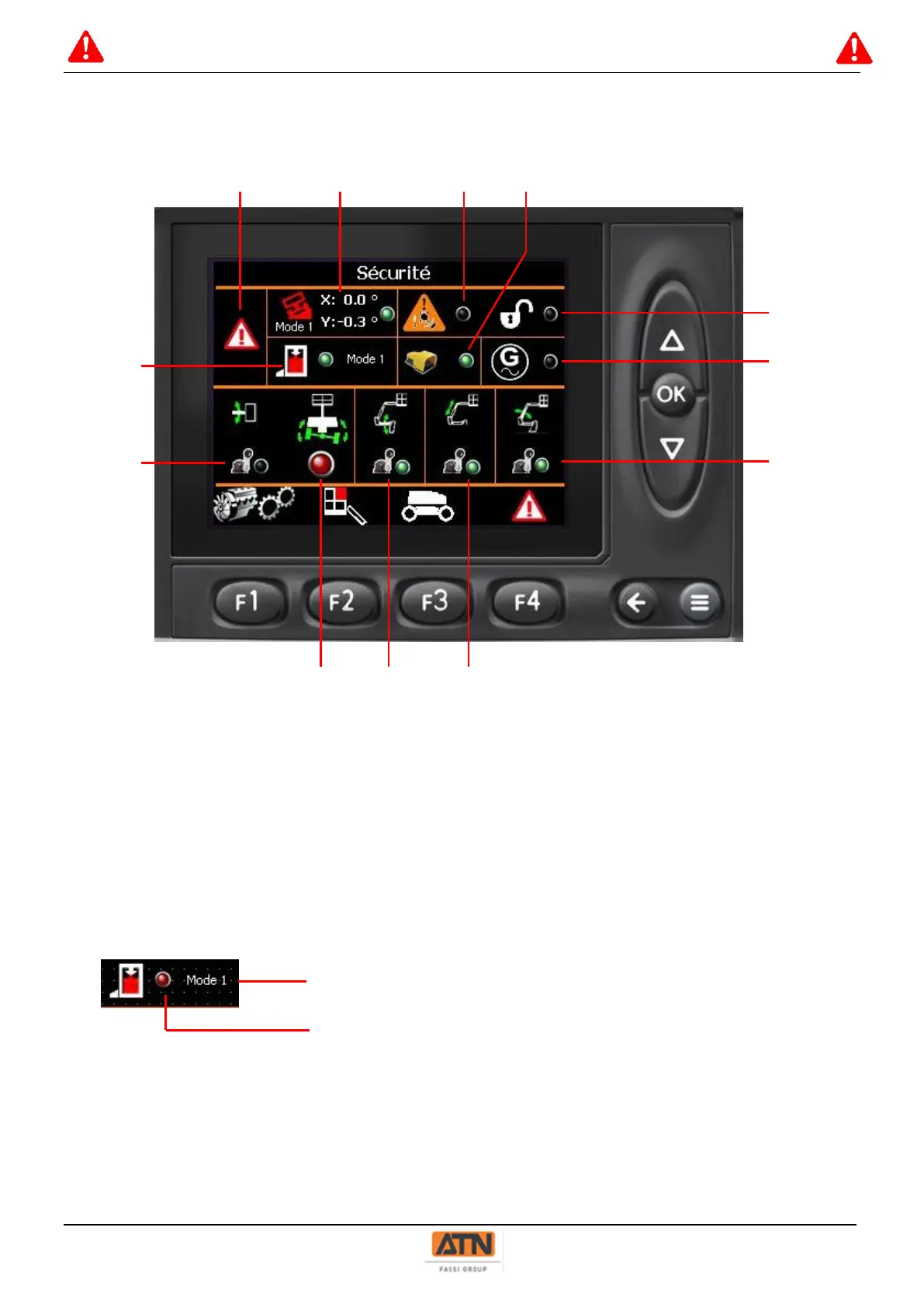

8.2.3 SAFETIES (F4)
1- Status light - Tower position sensor (the light is on when the tower is in line with the
chassis).
2- Status light - Oscillating axle unblocking valve control
Green light - piloted unblocking valve / oscillating axle unblocked
Red light - non piloted unblocking valve / oscillating axle blocked
3- Status light - Arm 1 position sensor (the light is on when the arm is in low position).
4- Status light - Telescope position sensor (the light is on when the telescope is in).
5- Status light - Arm 2 position sensor (the light is on when arm 2 is in low position).
6- Light - Overload / Operating mode:
7- Light - System fault.
Operating mode selected (see § 5-2)
Overload light (Green / Red)
(7)
(8)
(9)
(10)
(2)
(3)
(4)
(5)
(12)
(11)
(1)
(6)
