OPERATOR AND SAFETY MANUAL
1NO0035UK-05
Zebra 16
61
4- Entry parameters - Telescope.
5- Entry parameters - Arm 3.
The arrows light up when the corresponding movement is commanded.
6- Entry parameters - Platform rotation.
The arrows light up when the corresponding movement is commanded.
7- Entry parameters - Levelling.
The arrows light up when the corresponding movement is commanded.
8- Proportional valve control value / Circuit hydraulic pressure.
9- Light - Validation / Auxiliary group button activated.
10- c.
11- Light - Tilt / Tilt angle values.
Green light: acceptable tilt not reached.
Red light: acceptable tilt exceeded.
12- Light - Overload
Green light: acceptable load not reached.
Red light: acceptable load exceeded.

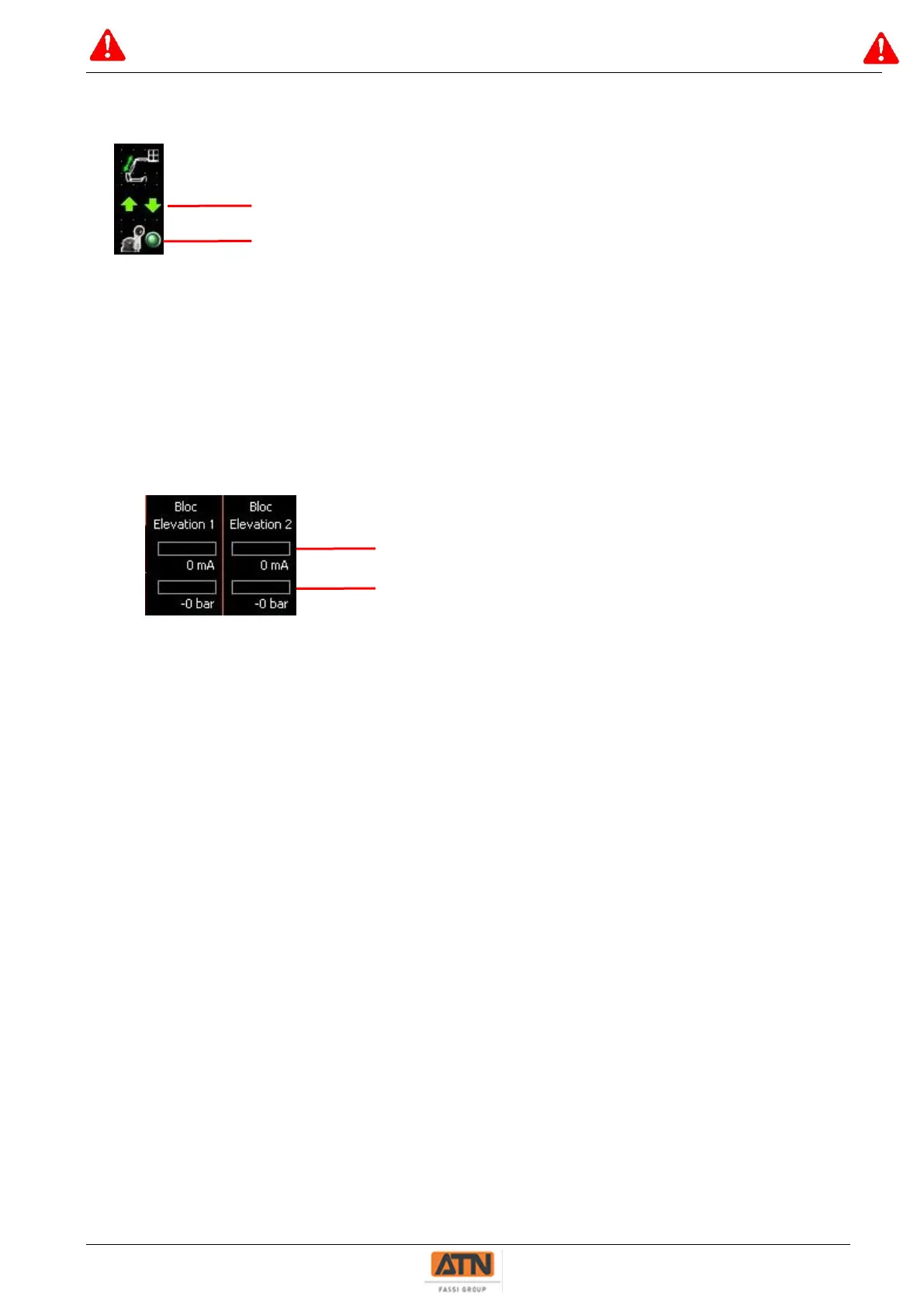

The arrows light up when the corresponding movement is commanded.
Status light - Telescope position sensor
(the light is on when the telescope is in).
Proportional valve control values
Corresponding hydraulic circuit pressure
