ATS Pyro-Clean - State Status Indicator Bar; Off State; Oxidizer Preheat

MAN - Pyrolytic Oven - REV: Original | E. Software Overview 19

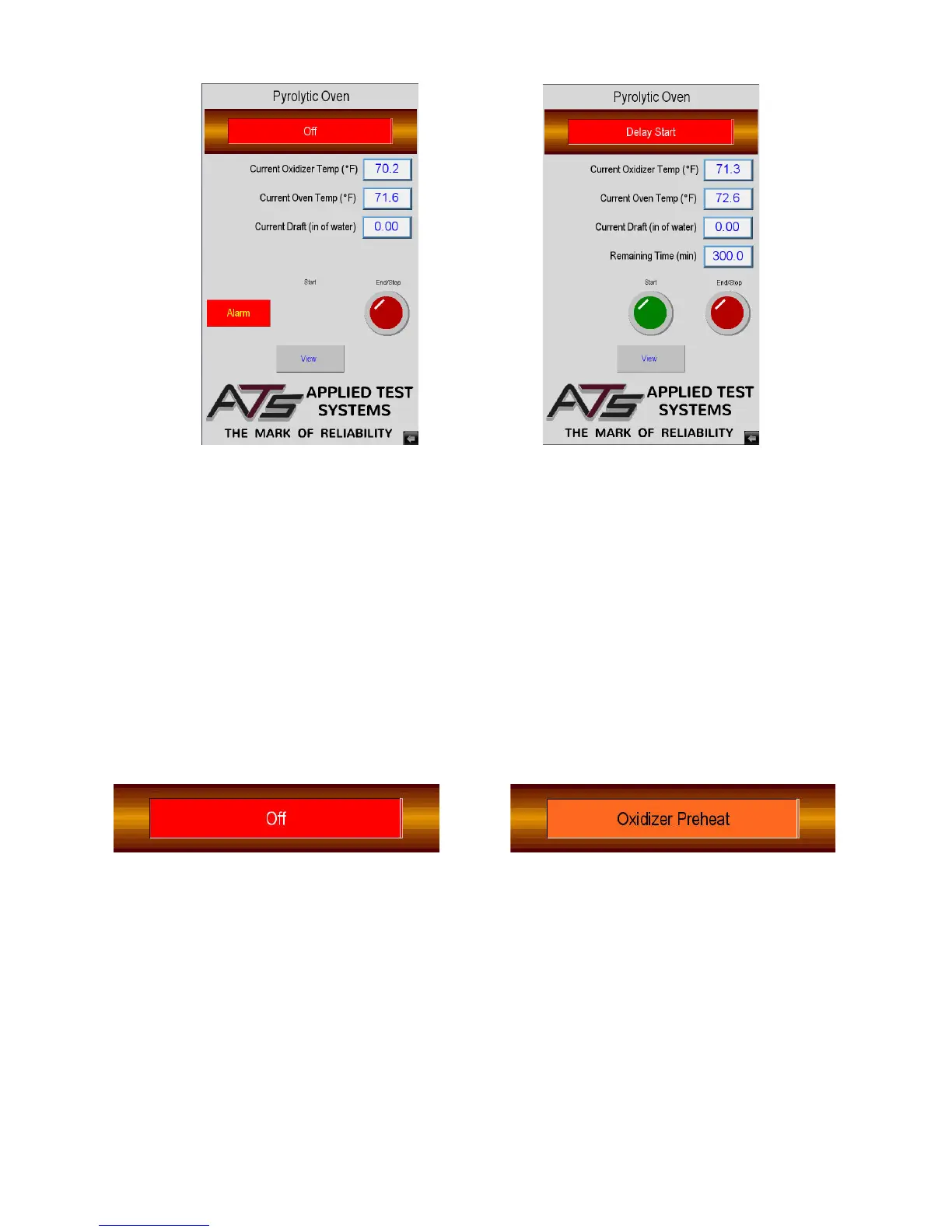

Figure E.4 illustrates what the Main Screen looks like when the system is in delay start state. Note the Remaining
Time displayed. This will show up for the Preheat Delay, Oven Soak, and the Run Cycle states and will display the
time remaining for this part of the cycle. The oven soak time may restart several times until it becomes stable at
temperature.
State Status Indicator Bar
Near the top of the display is a status bar that will show the current state of the oven cycle. Below are the di󰀨erent
states in the order that they usually run.
O󰀨 State
Indicates that the system is sitting idle. No heat or cycle is running.
Oxidizer Preheat
Indicates that the oxidizer chamber is heating up. The system will stay here until the chamber is at temperature and
stable.
Figure E.3 - Main Screen, Alarm State Figure E.4 - Main Screen, Delay Start State
Figure E.5 - O󰀨 State Status Bar Figure E.6 - Oxidizer Preheat State Status Bar
