AUDAC AMP523 - Chapter 1: Connections and Connectors

9
Chapter 1
Connections and connectors

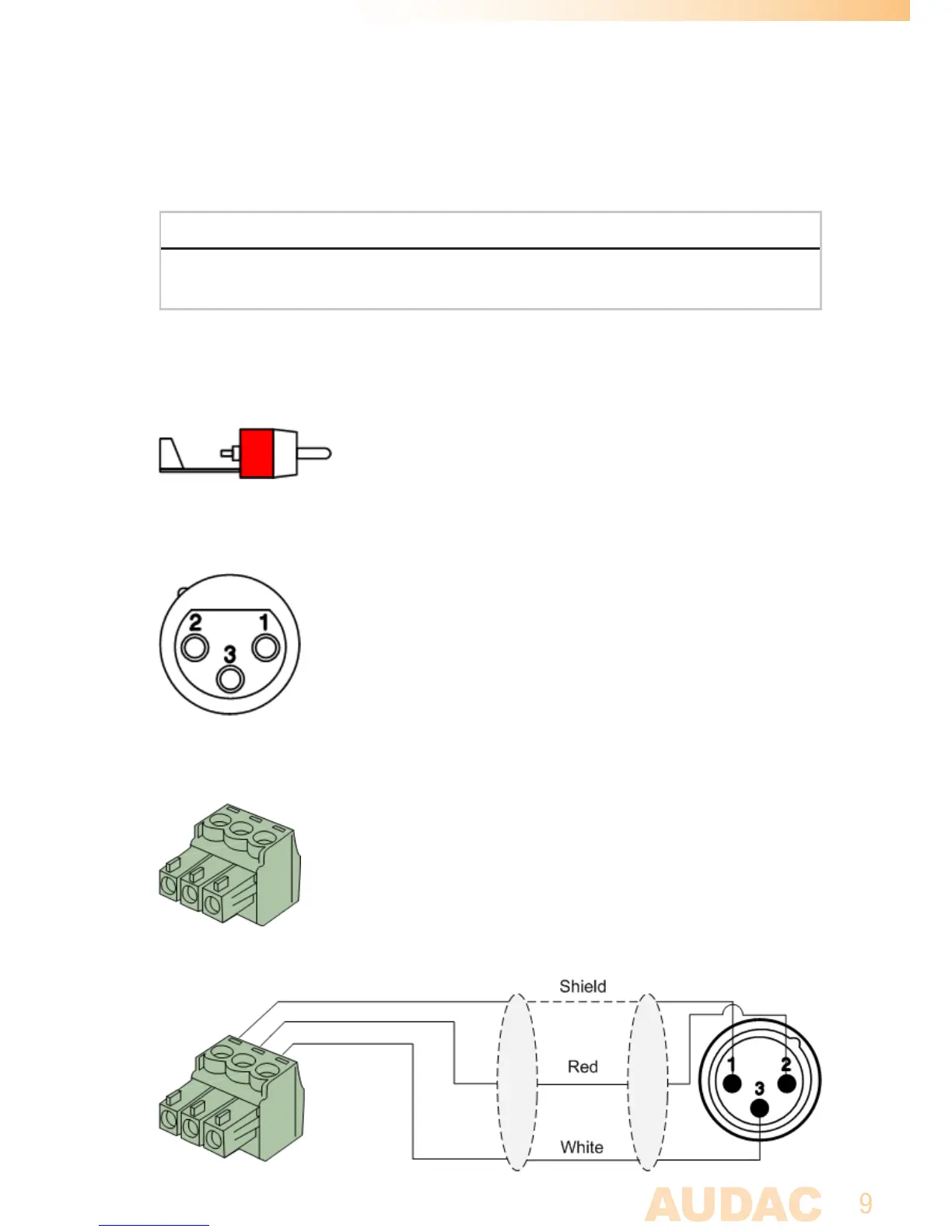

CONNECTION STANDARDS
The in- and output connections for AUDAC audio equipment are performed
correspondingtointernationalwiringstandardsforprofessionalaudioequipment.
Cinch (RCA):
Forunbalancedlineinputconnections
 Tip: Signal  Sleeve:  Ground
 White: Left  Red: Right
XLR:
Forbalancedinputconnections
 Pin 1: Ground
 Pin 2: Signal+
 Pin 3: Signal-
3-Pin Euro-Terminal Block:
Forbalancedinputconnections

 Left: Signal- (XLRPin3)
 Center: Signal+ (XLRPin2)
 Right:  Ground  (XLRPin1)
Forbalancedinputconnections:
