226 What do I do now ?
Decorative wheel covers
Applies to vehicles: with decorat ive wheel covers
The decorative wheel covers must be removed
first to access the whee l bolts .

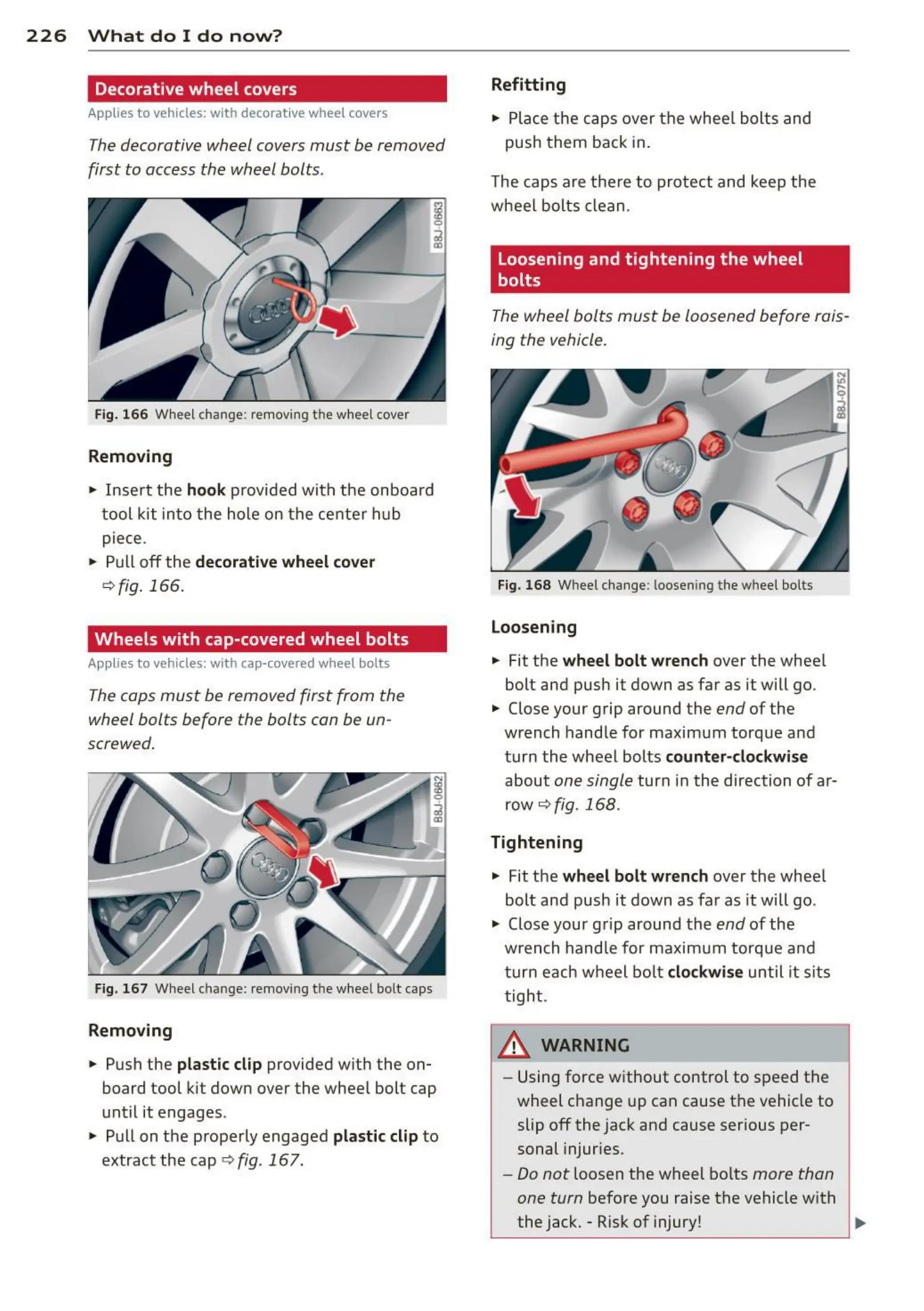

Fig. 166 Wheel change: removing t he whee l cover
Removing
.. Inse rt the hook provi ded with t he on boar d
t ool kit into t he hole on th e ce nt e r hub
piece .
.. Pull off t he
decorative wheel cover
,::;,fig. 166 .
Wheels with cap-covered wheel bolts
Applies to vehicles: with cap-covered wheel bolts
The caps must be remove d first from the
wheel bo lts before the bolts can be un -
screwed .
Fig. 167 Wheel change : removing t he whee l bo lt caps
Removing
.. Push the plastic clip provided w it h the on-
board tool kit down over the whee l bolt cap
unt il it engages .
> Pull on the p roperly engaged plastic clip to
extr act the cap
r=;,fig. 167.
Refitting
> Place th e caps over th e whee l bolt s and
push t hem back in.
The cap s are t he re to pro t e ct and kee p the
whee l bolts clean .
Loosening and tightening the wheel
bolts
The whee l bolts must be loosened before rais-
ing the vehicle.
Fig. 168 Wheel change : loose ning the whee l bolts
Loosening
> Fit the wheel bolt wrench over the whee l
bol t and push it down as far as it will go .
.. Close your g rip around the
end of the
wrench hand le for maxim um torq ue a nd
t urn t he wheel bolts
counter-clockwise
about one single turn in th e direction of ar-
row
c::> fig. 168 .
Tightening
> Fit t he wheel bolt wrench over the wh ee l
bolt and pus h it down as far as it will go .
.,. Close you r g rip aroun d th e
end of the
wrench hand le for ma ximu m torq ue a nd
t ur n each wheel bolt
clockwise until it sit s
t ight .
,&_ WARNING
-=
-
- Using force without control to s pee d t he
wheel change up can cause t he vehi cle to
slip off t he jack an d cause serious per-
sonal injur ies.
- Do not loosen the wheel bo lts more than
one turn
befo re you raise the vehi cle wit h
the jack . - Risk of injury ! ..,.
