NOTE: 1. CONSOLE CAN ACCOMMODATE UP TO 9 INPUT AND ACCESSORY MODULES (OPTIONAL MODULES—
SUPERPHONE, LINE SELECT, AND TAPE REMOTE—CAN BE PLACED IN ANY SLOT POS. 1-9).
2. MASTER OUTPUT, CONTROL ROOM, AND OPTIONAL SECOND STUDIO MODULES
HAVE THEIR DEDICATED SLOTS (AS SHOWN).
4. LAST SLOT AT THE RIGHT END OF THE FRAME COULD BE USED FOR OPTIONAL LINE SELECT AND
TAPE REMOTE MODULES.
page 1 – 11

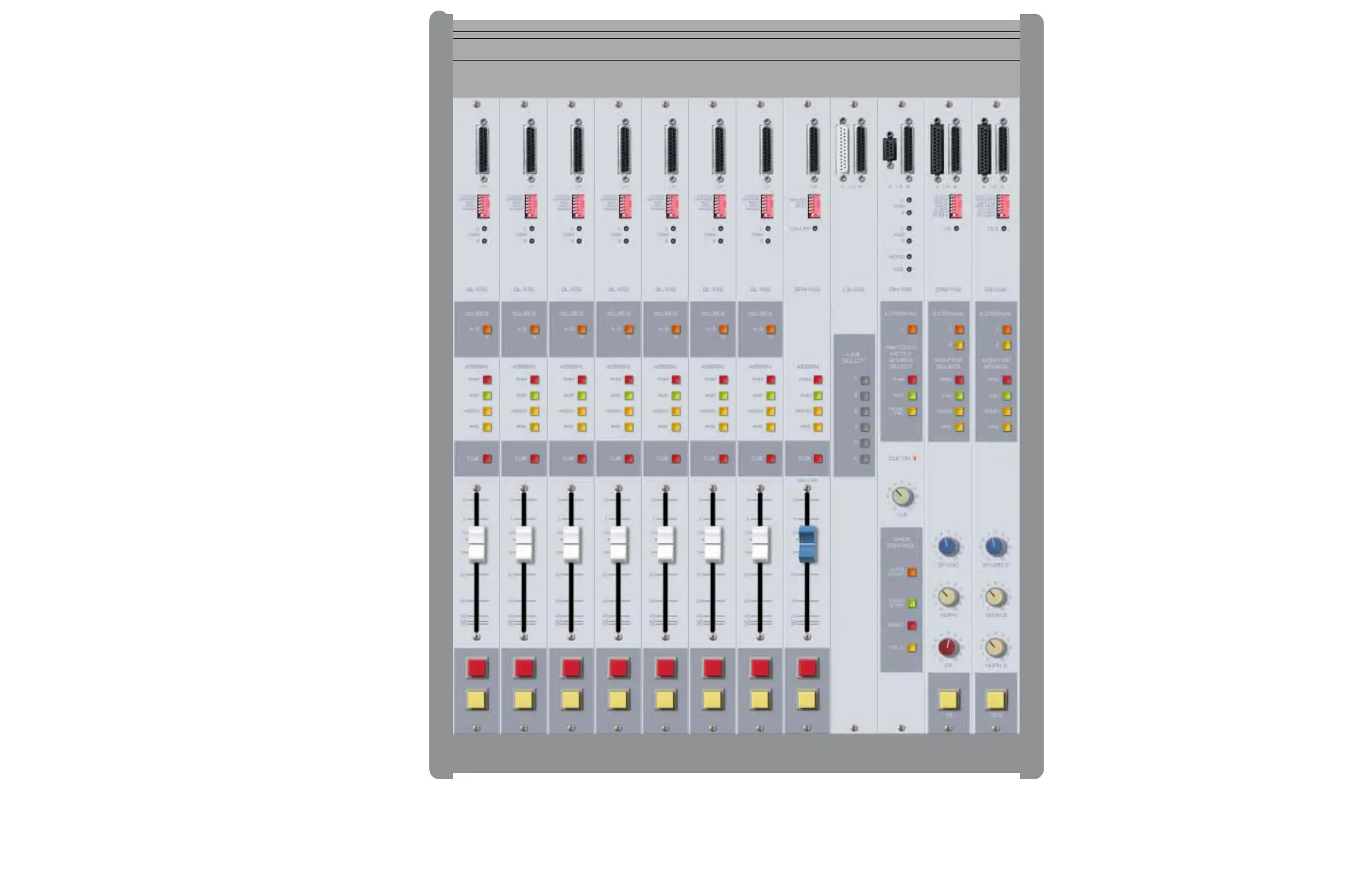

R-55e-12-POSITION FRAME - MODULES LAYOUT
R-55e / May 2005
