SECOND STUDIO MODULE
Hook-Ups
As stated before, all user wiring to and from the SS-55e module takes
place at the two DB-25 multi-pin connectors mounted at the top of the
module.
Left DB-25 “A” Connector — Audio
Handles module’s External 2 Stereo inputs and studio 2 pre, headphone
2 pre, and monitor 2 pre outputs. All audio signals are analog stereo, +4dBu
balanced.
Pin 25 – Ext 2 Lt In SH
Pin 24 – Ext 2 Lt In HI
Pin 12 – Ext 2 Lt In LO
Pin 11 – Ext 2 Rt In SH
Pin 10 – Ext 2 Rt In HI
Pin 23 – Ext 2 Rt In LO
Pin 22 – ST 2 Pre Lt Out SH
Pin 21 – ST 2 Pre Lt Out HI
Pin 9 – ST Pre 2 Lt Out LO
Pin 8 – ST Pre 2 Rt Out SH
Pin 7 – ST Pre 2 Rt Out HI
Pin 20 – ST Pre 2 Rt Out LO
Pin 19 – HDPN 2 Pre Lt Out SH
Pin 18 – HDPN 2 Pre Lt Out HI
Pin 6 – HDPN 2 Pre Lt Out LO
Pin 5 – HDPN 2 Pre Rt Out SH
Pin 4 – HDPN 2 Pre Rt Out HI
Pin 17 – HDPN 2 Pre Rt Out LO
Pin 16 – MON 2 Pre Lt Out SH
Pin 15 – MON 2 Pre Lt Out HI
Pin 3 – MON 2 Pre Lt Out LO
Pin 2 – MON 2 Pre Rt Out SH
Pin 1 – MON 2 Pre Rt Out HI
Pin 14 – MON 2 Pre Rt Out LO
Right DB-25 “B” Connector — Audio
Handles module’s External 1 Stereo inputs and studio 2 and head-
phones 2 and 3 outputs. All audio signals are balanced analog stereo.
Pin 25 – Ext 1 Lt In SH
Pin 24 – Ext 1 Lt In HI
Pin 12 – Ext 1 Lt In LO
Pin 11 – Ext 1 Rt In SH
Pin 10 – Ext 1 Rt In HI
Pin 23 – Ext 1 Rt In LO

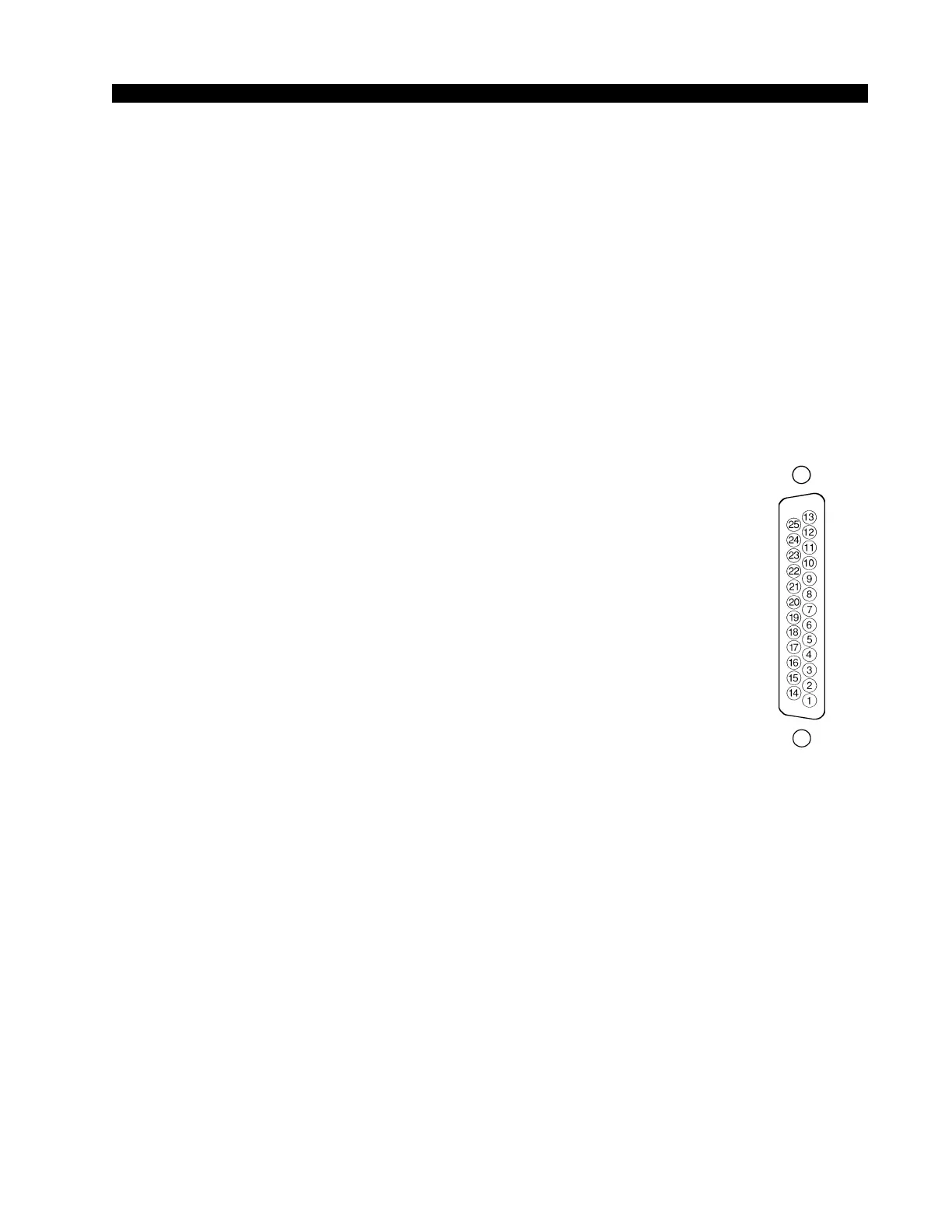

Typical DB-25
connector
