AudioCodes Mediant 800B - Figure 5-21: Connecting DC Power Plug to DC Inlet

Hardware Installation Manual 50 Document #: LTRT-10689
Mediant 800
 To connect the device for DC power:
1. Insert the male DC plug into the DC inlet connector located on the device's rear panel.
When inserting the DC plug, make sure that the latch faces up (see figure below). Make
sure that the latch snaps into the inlet, indicating that the terminal block has been firmly
plugged in.

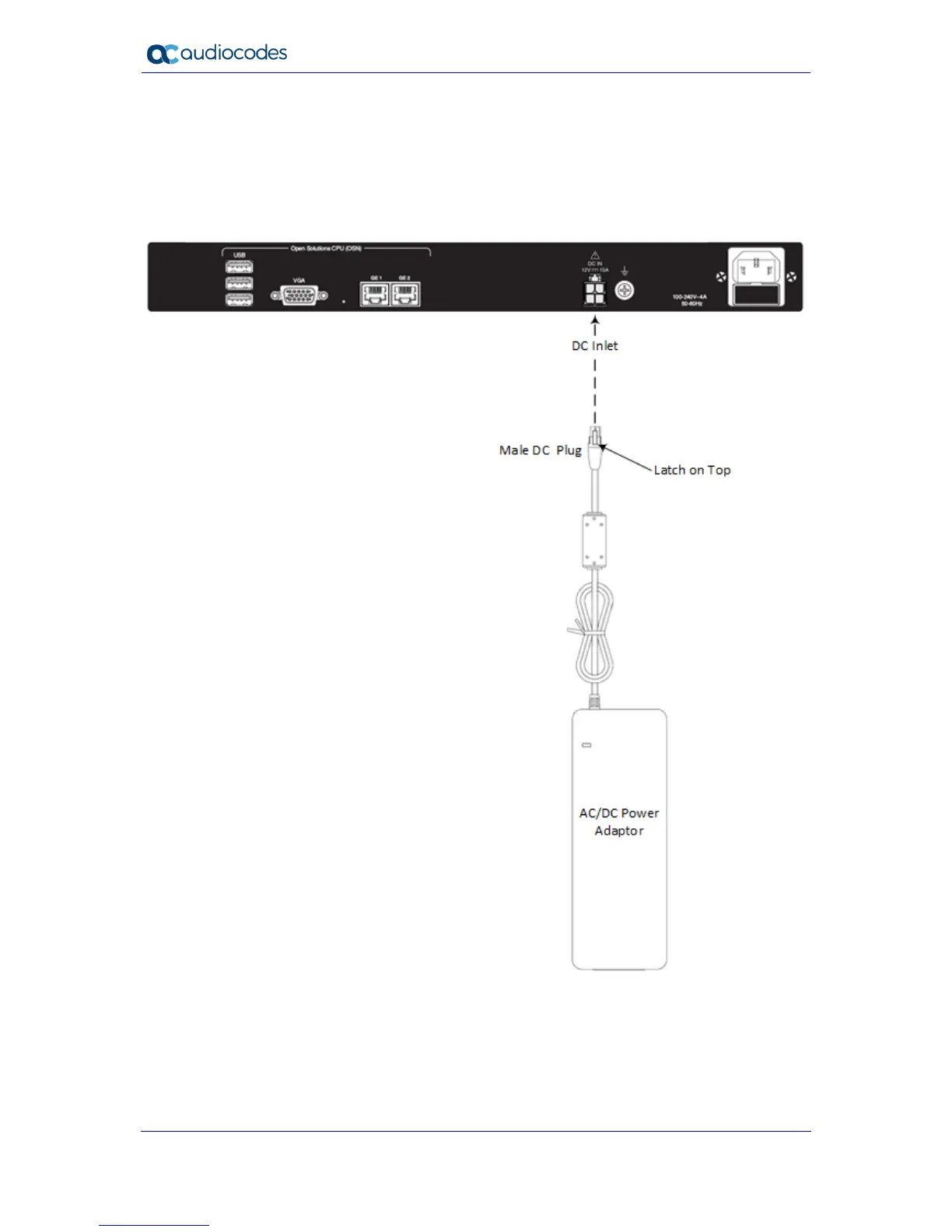

Figure 5-21: Connecting DC Power Plug to DC Inlet
