6.2 Motor operation
✔
Perform all commissioning settings and the test run prior to motor operation.
6.2.1 Local operation
The local operation of the actuator is performed using the push buttons of the local
controls.

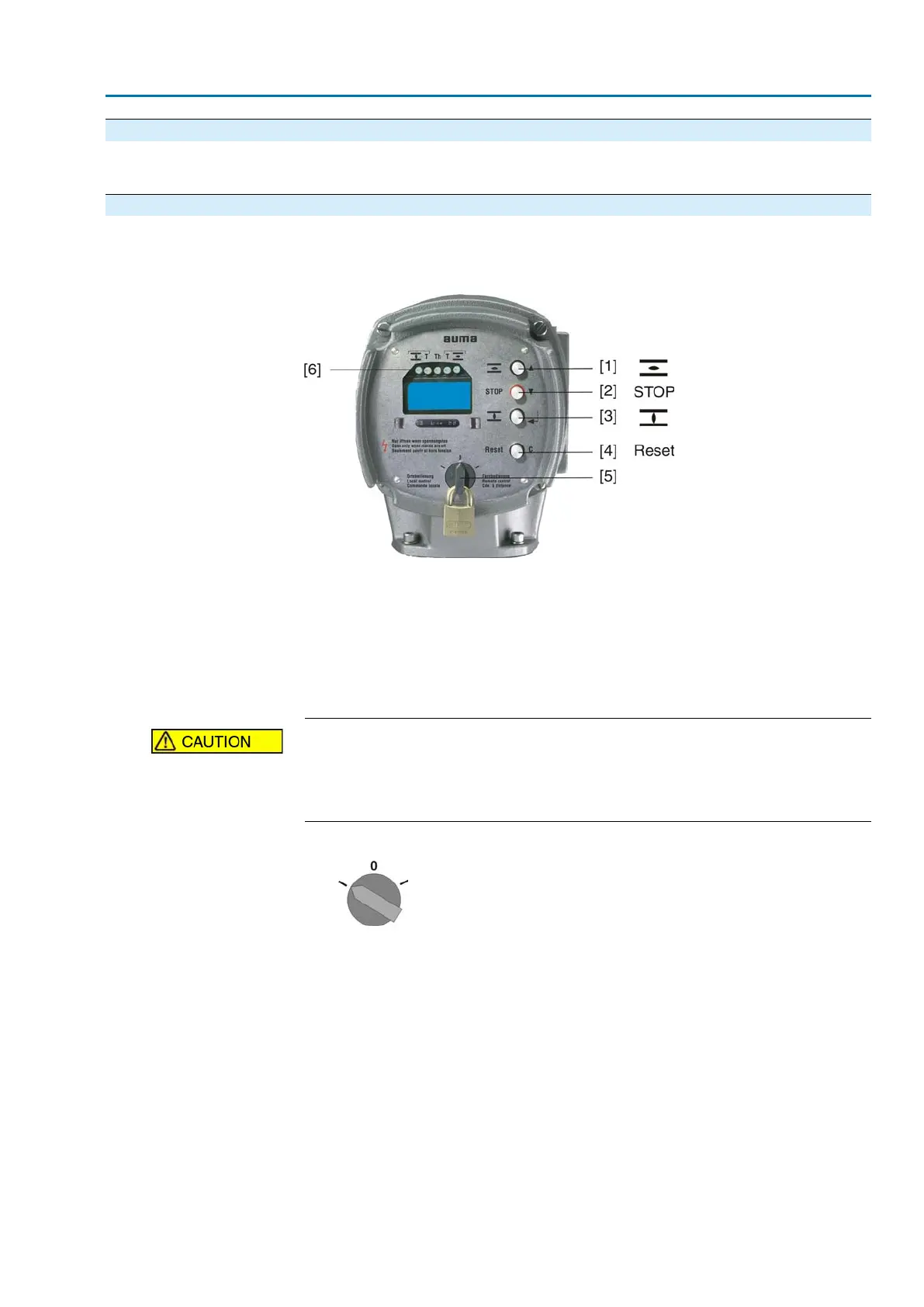

Figure 30: Local controls
[1] Push button OPEN
[2] Push button STOP
[3] Push button CLOSE
[4] Push button Reset
[5] Selector switch
[6] Indication lights/LEDs
Hot surfaces, e.g. possibly caused by high ambient temperatures or strong
direct sunlight!
Danger of burns
→
Check surface temperature and wear protective gloves, if required.
→
Set selector switch [5] to position Local control (LOCAL).
➥
The actuator can now be operated using the push buttons [1 – 3].
- Run actuator in direction OPEN: Press push button OPEN [1].
- Stop actuator: Press push button STOP [2].
- Run actuator in direction CLOSE: Press push button CLOSE [3].
Information The OPEN - CLOSE operation commands can be given either in push-to-run opera-
tion mode or in self-retaining mode. In self-retaining mode, the actuator runs to the
defined end position after pressing the button, unless another command has been
received beforehand. For further information, please refer to the Manual (Operation
and setting).
29
