AUMA SA 25.1 - 5.2.1.1. Terminal Compartment (for Mains Connection): Open

Technical data
Table 13:
Electrical connection via AUMA plug/socket connector
Control contactsPower contacts
50 pins/sockets6 (3 equipped) + protective
earth conductor (PE)
No. of contacts max.
1 to 50U1, V1, W1, U2, V2, W2, PEDesignation
250 V750 VConnection voltage max.
16 A25 ARated current max.
Screw connection, crimp-type (option)Screw connectionType of customer connection
2.5 mm
2
(flexible or solid)
6 mm
2
(flexible)
10 mm
2
(solid)
Connection diameter max.
5.2.1.1. Terminal compartment (for mains connection): open

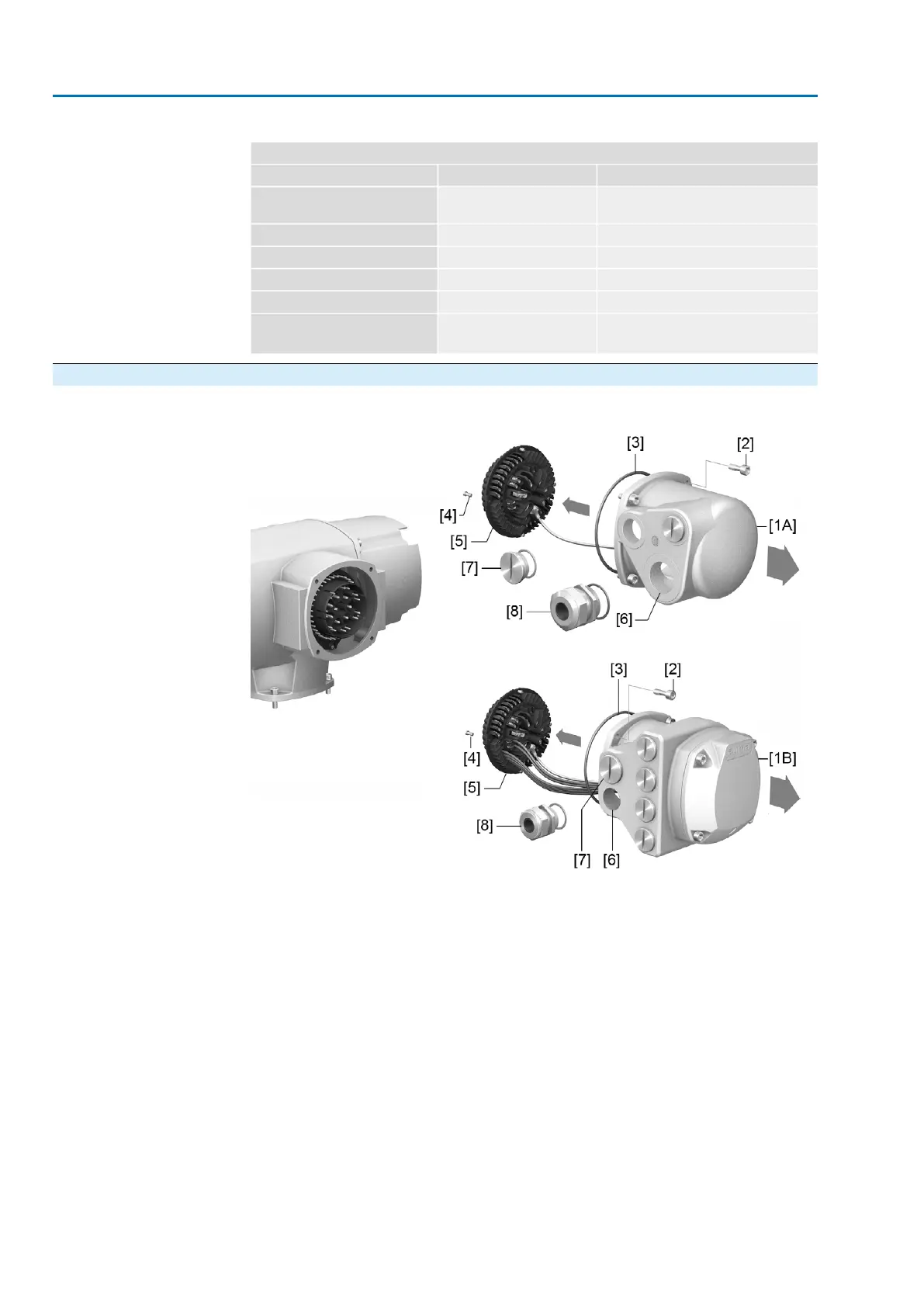

Figure 23: Terminal compartment: open
[1A] S/SH cover (figure shows S version)
[1B] Connection housing (SD version)
[2] Screws
[3] O-ring
[4] Screws for socket carrier
[5] Socket carrier
[6] Cable entry
[7] Blanking plug
[8] Cable gland (not included in delivery)
Information For S/SH version, connection of HART cables is made at the socket carrier. For SD
version, connection of HART cables is separate of mains connection (refer to <HART
terminal compartment: open>).
28
SA 25.1 – SA 48.1/SAR 25.1 – SAR 30.1
Electrical connection AC 01.2 Intrusive HART
