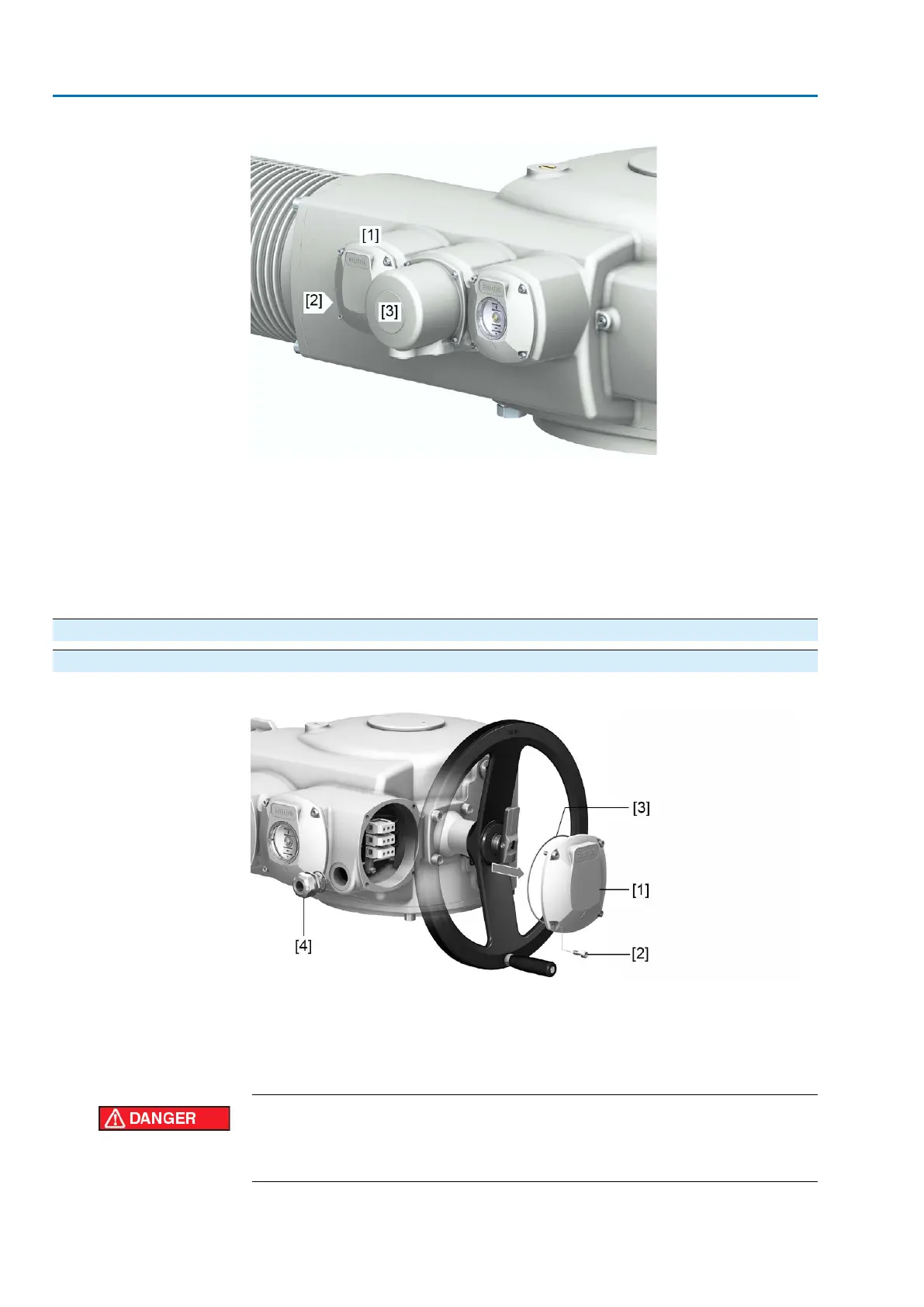

Figure 32: Connection arrangement for size 48.1
[1] Motor connection compartment
[2] Cable entry for motor connection
[3] Electrical connection (S) for control connections (only available for actuator
controls on wall bracket)
Information
Motor connection is performed within motor connection compartment [1] for motors
with nominal currents exceeding 25 A. Motor connection can also be made via the
pins for motors at the electrical connection [3] in case of lower nominal currents.
5.3.1. Motor connection
5.3.1.1. Motor connection compartment: open
Figure 33: Motor connection compartment: open
[1] Cover
[2] Screws for cover
[3] O-ring
[4] Cable gland
Hazardous voltage!
Risk of electric shock.
→
Disconnect device from the mains before opening.
1. Loosen screws [2] and remove cover [1].
36
SA 25.1 – SA 48.1/SAR 25.1 – SAR 30.1
Electrical connection AC 01.2 Intrusive HART
