8.
Press Ok.
➥
Display indicates: Password 0***
9.
Enter password (→ enter password).
➥
Display shows the set address.
10.
Enter new address via Up ▲ Down ▼.
Information: The address range is displayed in round brackets on the screen.
11.
Confirm selection via Save.
➥
The HART address setting is complete.

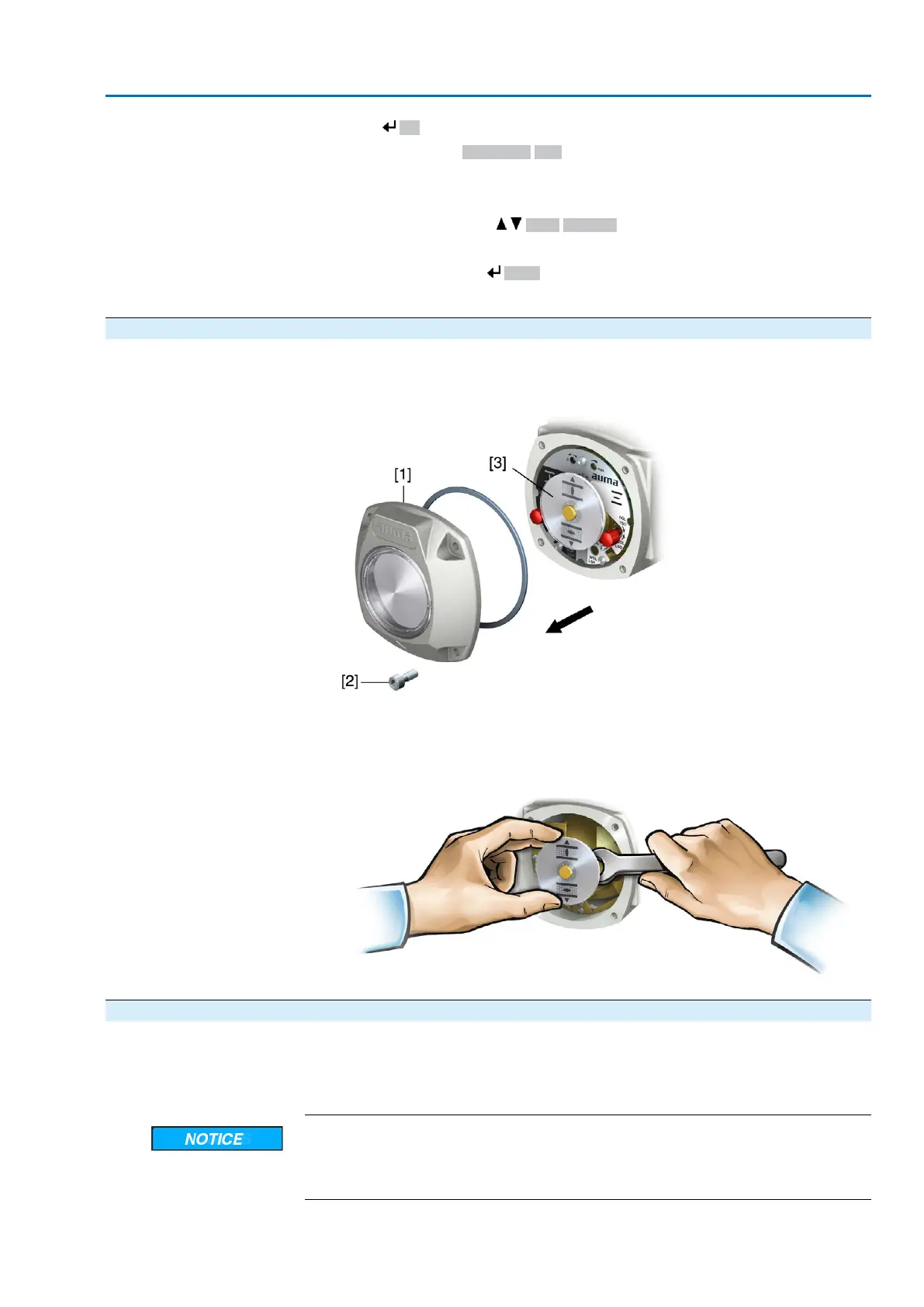

9.3. Switch compartment: open
The switch compartment must be opened to perform the following settings.
1. Loosen screws [2] and remove cover [1] from the switch compartment.
2. If indicator disc [3] is available:
Remove indicator disc [3] using a spanner (as lever).
Information: To avoid damage to paint finish, use spanner in combination with
soft object, e.g. fabric.
9.4. Torque switching: set
Once the set torque is reached, the torque switches will be tripped (overload protection
of the valve).
Information The torque switches may also trip during manual operation.
Valve damage due to excessive tripping torque limit setting!
→
The tripping torque must suit the valve.
→
Only change the setting with the consent of the valve manufacturer.
