5.2.6 Bus terminal compartment: close

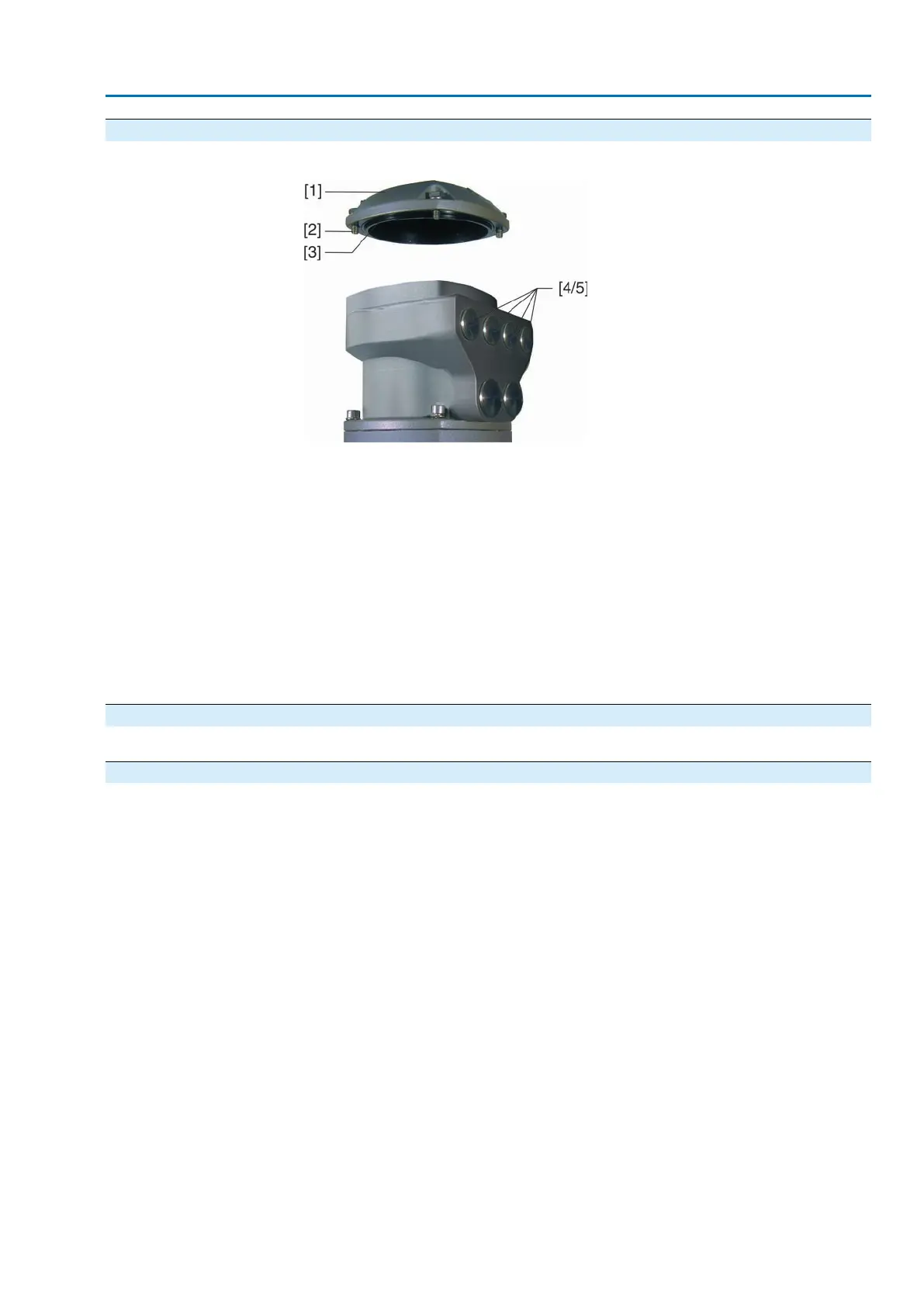

Figure 22: AUMA plug/socket connector SD bus
[1] Cover
[2] Screws for cover
[3] O-ring
[4] Cable entries for bus cables
[5] Blanking plug
1. Clean sealing faces of cover [1] and housing.
2. Apply a thin film of non-acidic grease (e.g. petroleum jelly) to the sealing faces.
3. Check whether O-ring [3] is in good condition, correctly insert O-ring.
4. Fit cover [1] and fasten screws [2] evenly crosswise.
5. Fasten cable glands with the specified torque to ensure the required enclosure
protection.
5.3 Accessories for electrical connection
Option
5.3.1 Controls mounted to wall bracket
The wall bracket allows separate mounting of controls and actuator.
Application
If the actuator cannot be accessed.
If the actuator is subject to high temperatures.
In case of heavy vibration of the valve.
25
SA 07.1 SA 16.1/SAR 07.1 SAR 16.1 Control unit: electromechanic
AC 01.1 Intrusive Modbus RTU Electrical connection
