6.2.2 Operation from REMOTE
→
Set selector switch to Remote control (REMOTE).
➥
Now, the actuator can be remote-controlled via fieldbus.
Information For actuators equipped with a positioner, it is possible to select between open-close
control (Remote OPEN-CLOSE) and setpoint control (Remote SETPOINT). For
further information, please refer to the Manual (Operation and setting).
6.3 Menu navigation via push buttons (for settings and indications)
The push buttons of the local controls are used to view, edit, and show various
indications on the display.

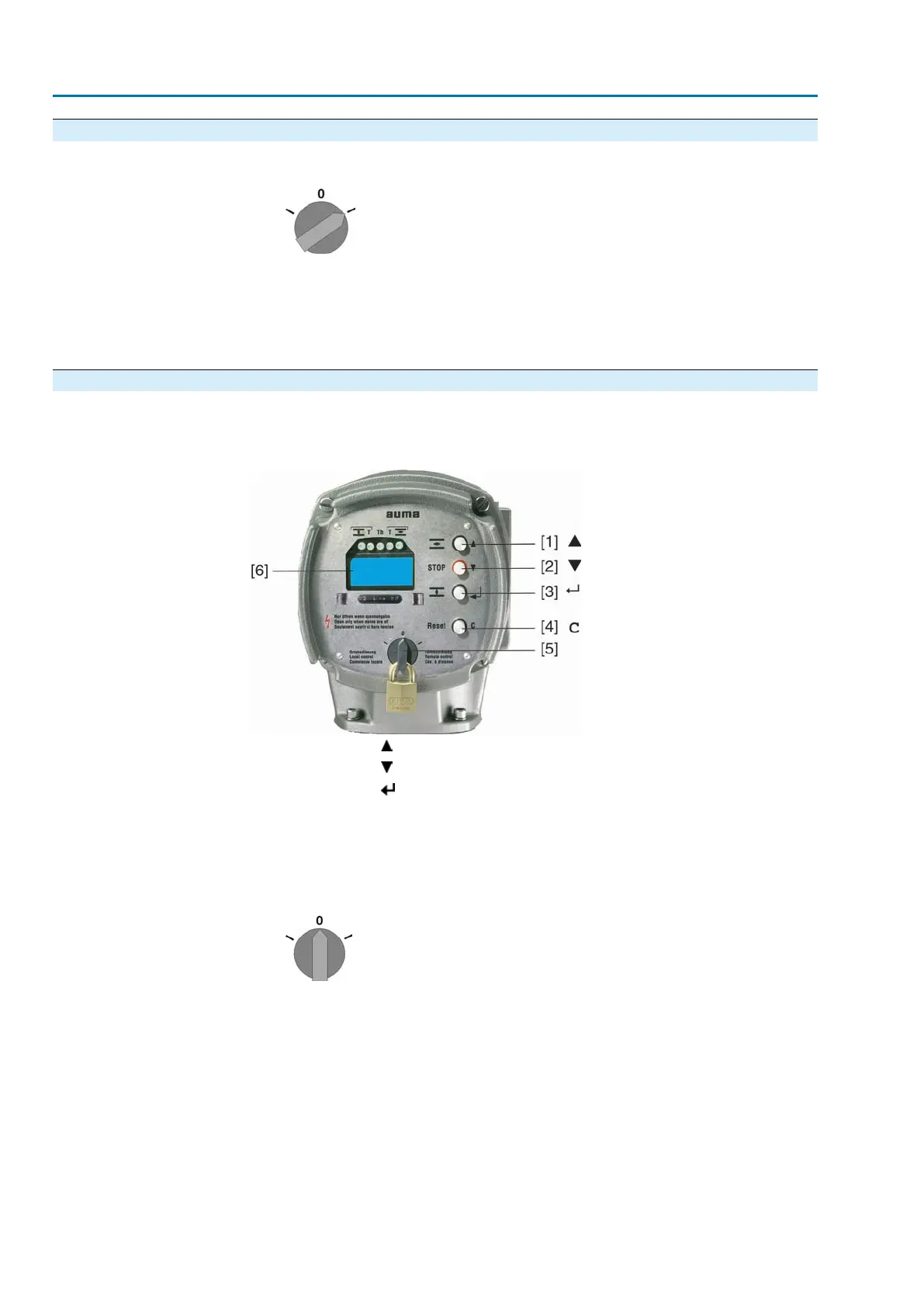

Figure 33: Local controls
[1]
Push button
[2]
Push button
[3]
Push button
[4]
Push button C
[5] Selector switch
[6] Display
→
Set selector switch [5] to position 0 (OFF).
➥
Now, settings and indications can be performed via the push buttons [1 – 4].
30
SA 07.1 – SA 16.1/SAR 07.1 – SAR 16.1 Control unit: electromechanic
Operation AC 01.1 Intrusive Modbus RTU
