Step 4

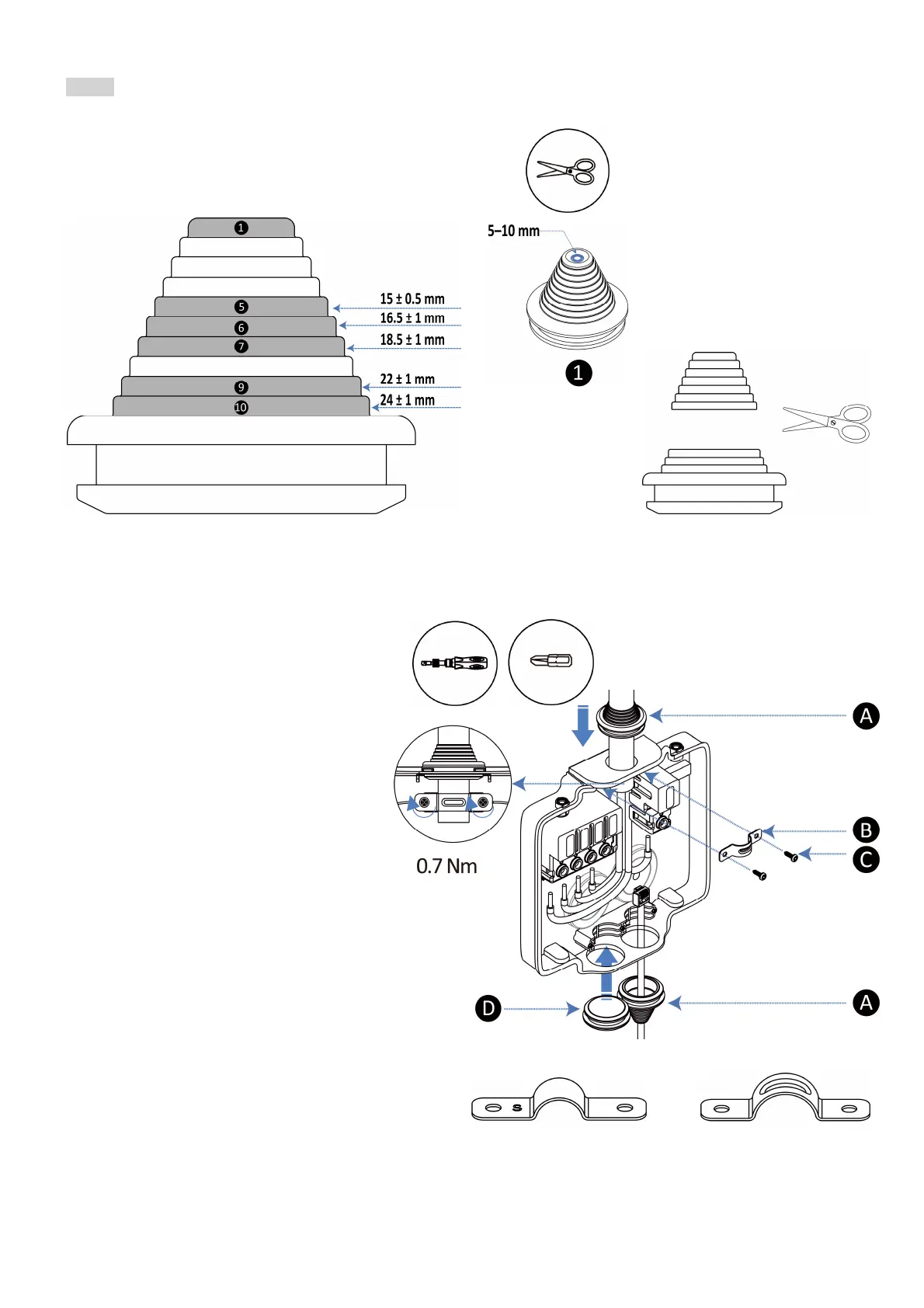

Use a pair of scissors to cut two sealing plugs
referring to the diagrams to fit the AC input cable and
Ethernet cable. Make the holes smaller than the
cables to ensure a good fit.
Option 1 (AC Input Cable — Top; Ethernet Cable — Bottom)
1. Route the AC input cable into the
wirebox from the top.
2. Route the Ethernet cable into the
wirebox from the bottom.
3. Push the sealing plugs (A) to cling to
the entries.
4. Install a strain relief (B) by inserting
the two Φ3 x 10 mm self-tapping
screws (C). Use the torque driver
with a Phillips bit (PH2) to tighten the
screws. The torque is 0.7 Nm.
5. Use one blind sealing plug (D) to seal
the spare entry.
Single-phase Three-phase
Suggested wire size: Φ15–19 mm Suggested wire size: Φ19–24 mm
